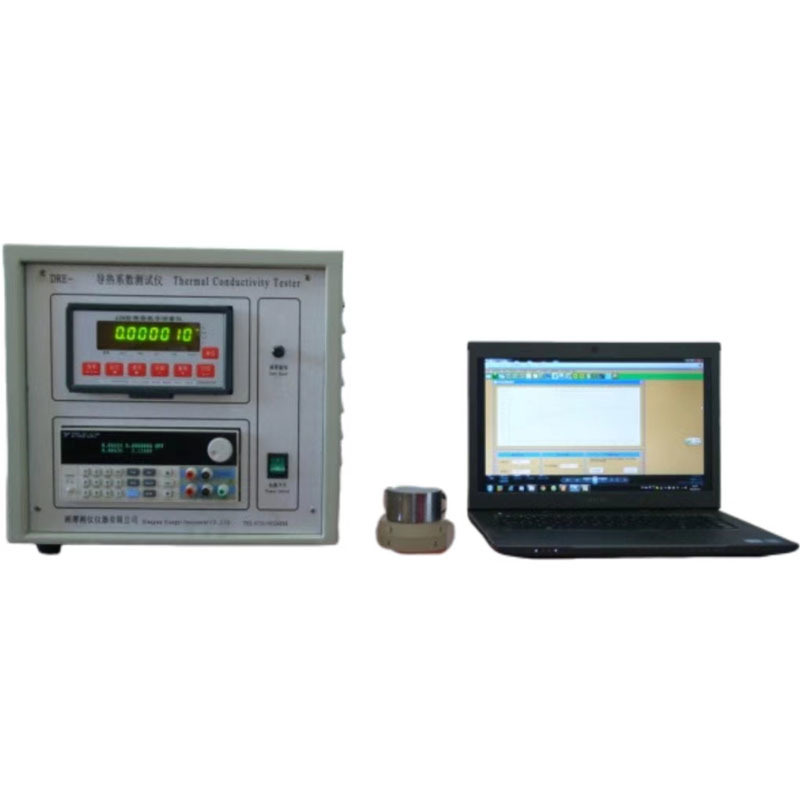

ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument

ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument
ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument

Large Image :  ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument

Product Details:
Place of Origin: Guangdong, China
Brand Name: lonroy
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument

Description
Thermal Conductivity Range: 0.001 ~ 100W/m.k Measurement Time: 1-60 Seconds
Accuracy: Better Than 3% Temperature Range: Standard Measurement Room Temperature, Optional -20ºC ~ 120ºC
Sample Size: >10mm Height, >45mm Diameter Power Supply: AC 220V±10%; 50/60 Hz
Machine Power: <500W Voltage: 220 V
Protection Class: IP57 Measurement Method: Transient Plane Heat Source (TPS)
Probe Type: Hot Disk Reference Standard: ISO 22007-2:2008, GB/T32064-2015
Sample Requirement: Relatively Flat Surface Test Automation: Computer-controlled
Power Consumption: 1KW
Highlight:

ISO 22007 thermal conductivity meter

,

rapid thermal conductivity tester

,

DRE-2C thermal analyzer

ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument
Product Description

The ISO 22007 DRE-2C Rapid Thermal Conductivity Meter is a precision instrument designed for accurate thermal conductivity measurements using the transient plane heat source method (TPS). This advanced technology provides fast, reliable results across a wide range of materials.

Key Features
  • Utilizes transient plane heat source method (TPS) for rapid measurements
  • Direct heat propagation measurement saves significant time
  • Unaffected by contact thermal resistance issues common in static methods
  • Minimal sample preparation required - only a relatively flat surface needed for solids
  • Wide measurement range suitable for various material types
  • Automated computer-controlled operation for consistent results
  • Compliant with ISO 22007-2:2008 and GB/T32064-2015 standards
Technical Specifications
Parameter Specification
Thermal conductivity measurement range 0.001 - 100 W/m·K
Measurement time 1-60 seconds
Accuracy Better than 3%
Temperature range Standard room temperature (optional ranges available)
Sample size requirements Minimum 10mm height, 45mm diameter flat surface
Power requirements AC 220V±10%; 50/60 Hz, <500W
Measurement Advantages
  • Fast measurement speed (1-60 seconds per test)
  • Minimizes natural convection effects during testing
  • Versatile application across insulation and high thermal conductivity materials
  • Special sample cylinder included for rock and soil measurements
  • Simple operation with automated computer processing
ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument 0
ISO 22007 DRE-2C Rapid Thermal Conductivity Meter
ISO 22007 DRE-2C Rapid Thermal Conductivity Meter Thermal Conductivity Testing Instrument 1
