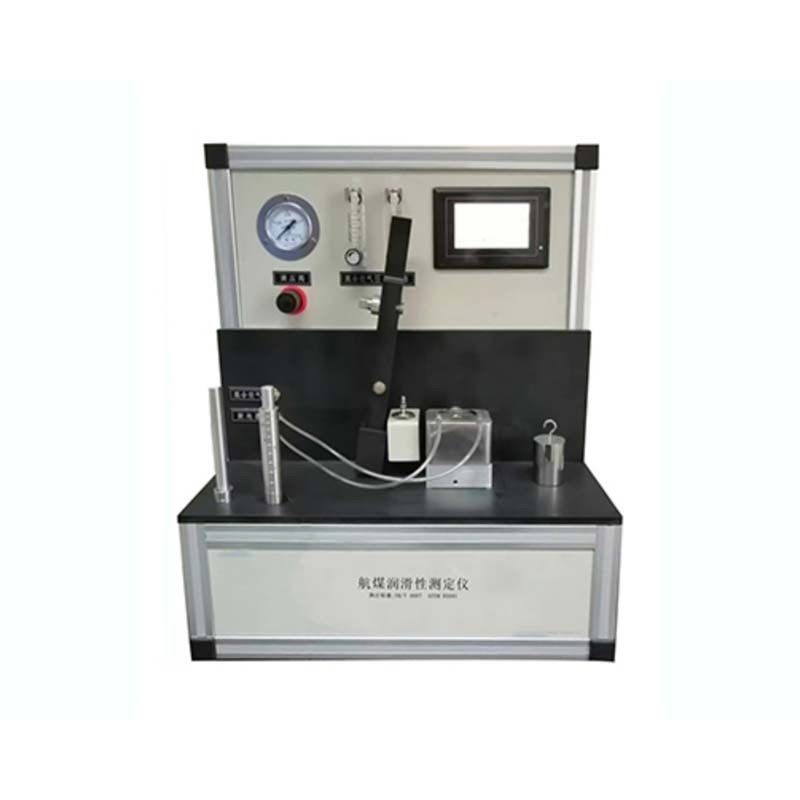

ASTM D5001 Aviation Turbine Fuel Lubricity Tester Ball On Cylinder Lubricity Evaluator

ASTM D5001 BOCLE Aviation Turbine Fuels Lubricity Tester Ball-on-Cylinder Lubricity Evaluator

1. Introduction
The Aviation Turbine Fuels Lubricity Tester is a device used to evaluate the lubrication performance of aviation engine fuel. It simulates the lubrication environment under actual operating conditions to ensure that the performance of the fuel meets the requirements under high temperature, high pressure and high speed conditions.
Simple interface: digital computer controls all instrument functions;
Standard ASTM D 5001 test program preloaded into microprocessor controller: operator installs cleaned test piece, adds fuel sample and presses "start test" button; Automatic control of test sequence: no operator intervention is required during measurement; Automatic flow controller controls humid and dry air: no operator control is required to adjust the humidity and flow of air; PC-based data logging of motor speed, test time, fuel temperature, air temperature, humidity and printed summary confirms that all parameters are within the specified range; Interchangeable humidity and temperature probes: humidity and temperature measurements do not require recalibration, just replace the combined relative humidity and temperature probe with an exchange pre-calibrated unit; Heating and cooling system: Peltier heating and cooling system PC-based motor speed, test time, fuel temperature, air temperature, humidity data acquisition and analysis system Ultrasonic cleaner; The automatic aviation fuel lubricity tester is a digital computer-controlled ball-cylinder wear test system that provides a rapid and repeatable jet fuel performance evaluation, fully compliant with ASTM D5001 test method for measuring aviation turbine fuel lubricity using ball-cylinder (BOCLE) lubricity evaluator.
By using the aviation kerosene lubrication tester, engineers and scientists can evaluate the lubrication performance of different kerosene samples and make improvements or optimizations based on the test results. This helps ensure that the fuel provides good lubrication in aircraft engines, reduces wear and friction, and improves engine reliability and life.

2. Main uses
The aviation kerosene lubrication tester is mainly used to evaluate the lubrication performance of aviation jet fuel. A standard steel ball and a standard ring are used to form a friction pair. Under controlled test conditions, the size of the wear mark produced on the steel ball is used to evaluate the boundary lubrication performance of aviation fuel.

3. Applicable standards
SH/T 0687 Aviation turbine fuel lubricity determination method (ball-column lubricity evaluation instrument method)
ASTM D5001-2023 "Test method for measuring the lubricity of aviation turbine fuel using a ball-column (BOCLE) lubricity evaluation instrument"

4. Main technical parameters

Serial number	Item	Technical specifications and technical indicators
1	Maximum test force	10N
2	Test force indication accuracy	±0.1%
3	Test force indication repeatability error	1%
4	Spindle speed range	1~600r/min
5	Spindle speed accuracy	240r/min±1r/min
6	Liquid volume	50 ± 1.0 ml
7	Timer working range	1s~9999min
8	Timing accuracy	The error within 30min shall not exceed ±6s
9	Test environment in oil box	Temperature: 25±1ºC Relative humidity: 10±0.2%
10	Standard test piece	Steel ball Sφ12.7mm, test ring φ49.22*13.06mm
11	Standard reference liquid	High lubricity A, low lubricity B, 500ml each
