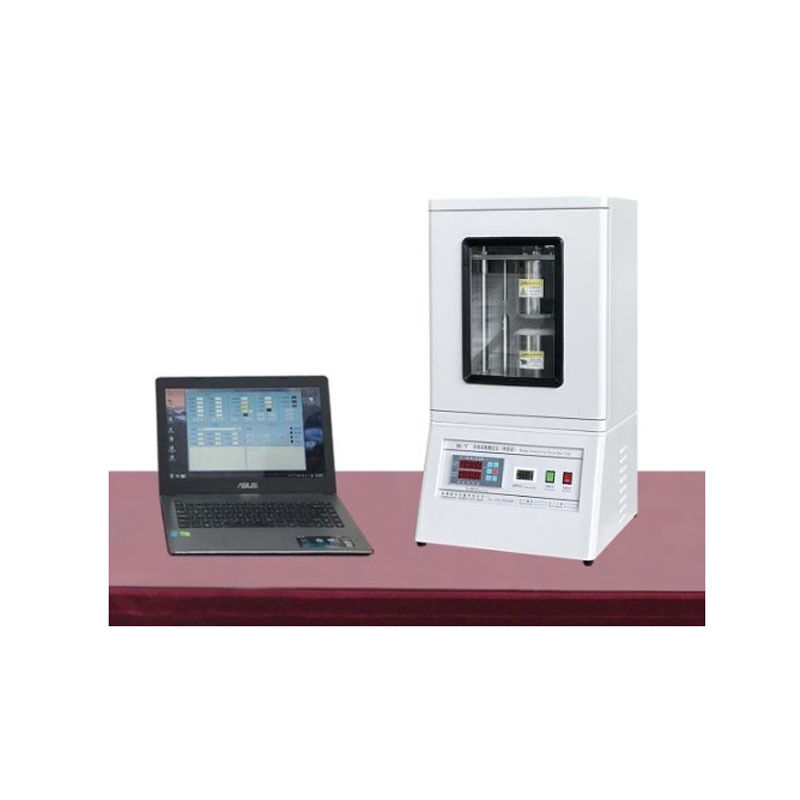

DRPL-III High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM 1530 ASTM C518

DRPL-III high precision material thermal conductivity tester Plate heat flow meter ASTM 1530,ASTM C518
1.use
Using the international popular heat flow meter to detect thermal conductivity and thermal resistance method, with computer to achieve automatic detection, generate experimental report. The instrument uses a stable hot surface temperature added to the sample side, the heat is transferred to the cold surface through the sample, and the heat transfer is measured to calculate the thermal conductivity and thermal resistance. Using imported sensor and computer technology, good measurement accuracy, high reliability, good repeatability characteristics. Especially suitable for low thermal conductivity measurements (accurate to 0.1mw). Can be used for plastics, rubber, insulation materials, aerogel plate, vacuum glass and other testing, widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines.

Reference standard: GB/T10295-2008 (Determination of steady-state thermal resistance and related properties of thermal insulation materials heat flow meter method) and ASTM 1530,ASTM C518-04 with heat flow meter method for the determination of steady-state heat flux and heat transfer characteristics of test methods

DRPL-III high precision material thermal conductivity tester Plate heat flow meter ASTM 1530,ASTM C518

2.Product Parameter

1. Host: standard landing model: (length × width × height) 550×450×1500mm, net weight: 100Kg.

Small desktop model: (length × width × height) 500×400×780mm, net weight: 60Kg;

2, precision low temperature constant temperature tank: (length × width × height) 300×350×530mm, net weight: 35Kg.
