Fabric Thickness Meter Digital Fabrics Thickness Gauge Textile Thickness Meter Filter Cloth Non-woven Thickness Tester Machine

Large Image : Fabric Thickness Meter Digital Fabrics Thickness Gauge Textile Thickness Meter Filter Cloth Non-woven Thickness Tester Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Fabric Thickness Meter Digital Fabrics Thickness Gauge Textile Thickness Meter Filter Cloth Non-woven Thickness Tester Machine

Description

Thickness Range:	0.01mm - 25.00mm; 0.001mm - 25mm; 0.01mm - 50mm; 0.001mm - 50mm	Minimum Graduation:	0.01mm; 0.001mm
Pressing Foot Diameter:	Φ11.28mm, Φ50.48mm, Φ56.42mm, Φ112.84mm	Pressing Foot Area:	100mm², 2000mm², 2500mm², 10000mm²
Weighting Weights:	5cN, 10cN, 50cN, 100cN, 200cN, 500cN	Weight Application Time:	10 Seconds, 30 Seconds
Power Supply:	AC 220V ± 10% 50Hz	Net Dimension:	410mm × 160mm × 395mm
Net Weight:	25kg	Wooden Box Dimensions:	600mm × 480mm × 330mm
Protection Class:	IP56	Voltage:	220 V
Applicable Standard:	GB/T3820	Pressing Foot Types:	4 Types
Weight Types:	6 Types
Highlight:	digital fabric thickness meter , textile thickness gauge machine , non-woven thickness tester

Fabric Thickness Meter Digital Fabrics Thickness Gauge

Product Overview

This precision instrument measures the thickness of various textiles, textile products, and other uniform thin materials under different pressures. Compliant with GB/T3820 standard.

Technical Specifications

Parameter	Specification
Thickness Testing Range	0.01mm - 25.00mm; 0.001mm - 25mm; 0.01mm - 50mm; 0.001mm - 50mm
Minimum Graduation Value	0.01mm; 0.001mm
Pressing Foot Diameter and Area	Diameter: Φ11.28mm, Φ50.48mm, Φ56.42mm, Φ112.84mm Area: 100mm², 2000mm², 2500mm², 10000mm²
Weighting Weights	5cN, 10cN, 50cN, 100cN, 200cN, 500cN (6 types total)
Weight Application Time	10 seconds, 30 seconds
Power Supply	AC 220V ± 10% 50Hz
Net Dimension	410mm × 160mm × 395mm
Net Weight	25kg
Internal Dimensions of Wooden Box	600mm × 480mm × 330mm

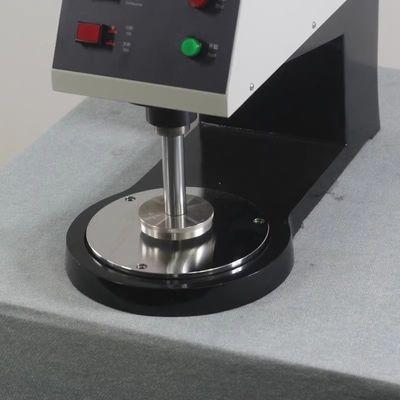

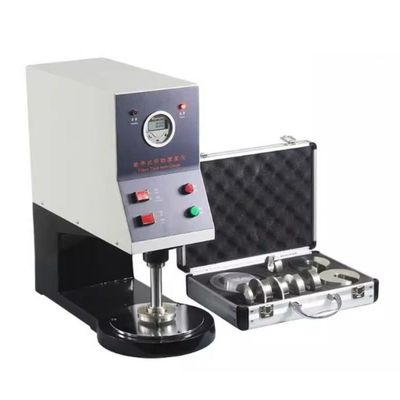

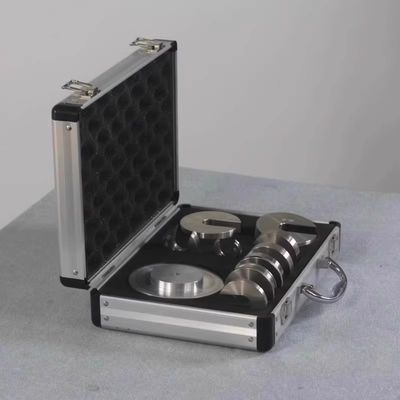

Product Images
