ISO 13322 Image Particle Size and Shape Analyzer Telecentric Optical System Dynamic Dual-channel Particle Morphology Tester
Description
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
/
Application:
Auto Testing, Laboratory Testing, Lab Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
Ip56
Voltage:
220 V, Other
Warranty:
1 Year
Standard:
ISO 13322
Highlight:
ISO 13322 particle size analyzer
,
telecentric optical system particle tester
,
dual-channel particle morphology analyzer
ISO 13322 Image Particle Size and Shape Analyzer Telecentric Optical System Dynamic Dual-channel Particle Morphology Tester
Product Introduction
LR-DT190 Image Particle Size and Shape Analyzer is an advanced particle analysis instrument based on digital image processing technology. It can detect and analyze the particle size distribution and shape characteristics of solid particles with high precision and efficiency. The instrument captures images of particles in a specific dispersion medium through a high-resolution industrial camera, and uses professional image processing algorithms to segment, identify and extract features from the collected images. During the analysis process, the system can automatically identify the boundaries of individual particles and accurately measure key particle shape parameters such as the major axis, minor axis, area, perimeter, circularity, and aspect ratio of the particles, thereby achieving statistical analysis of particle size distribution.
The imaging system of the LR-DT190 image particle size and shape analyzer adopts a dynamic dual-channel telecentric imaging system, combined with dual-light source dual-lens single-channel imaging patented technology, which can use different magnification lenses to observe particle distribution in the same area. The imaging system can accurately capture the largest particles in the sample, achieve effective measurement of D100, make up for the inability of the laser particle size analyzer to test D100, and provide a reliable means of accurately testing D100 for lithium batteries and other fields. This equipment is widely used in building materials, chemical industry, medicine, food, metallurgy, environmental protection and other fields, providing scientific and accurate data support for product quality control, process optimization, and new product research and development. Its analysis speed is fast, its repeatability is good, and it does not require complicated sample preprocessing, which significantly improves the efficiency and accuracy of particle analysis.
• Industrial high-speed camera
• High-brightness LED light source intelligent management system
• Sample window coating process
• Low distortion, large depth of field, wide field of view telecentric optical system
ISO 13322 Image Particle Size and Shape Analyzer Telecentric Optical System Dynamic Dual-channel Particle Morphology Tester
Product Parameters
Measurement Principle
Dynamic Image Analysis (ISO 13322-2)
Measurement Range
2-500um
Repeatability Error
<3%
Accuracy Error
<3%
Industrial Camera
5 million
Frame Rate
>20fps
Minimum Shutter Time
≥lus
Light Source
High-brightness parallel blue light, high-brightness parallel green light
ParticleSize - Measurement Parameters
Area equivalent particle size, perimeter equivalent particle size, minimum bounding rectangle length, minimum bounding rectangle width, Feret diameter, Martin diameter
Particle SizeOutputItems

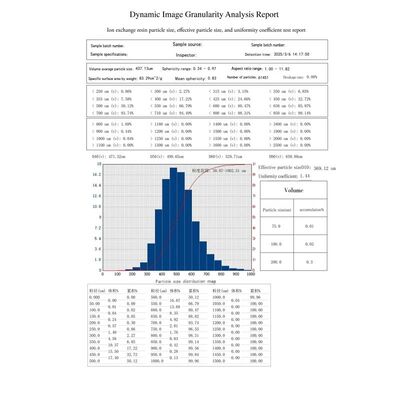

Particle size distribution, typical particle size, maximum particle size, custom typical particle size, content within a specific particle size range, content within a range smaller than or greater than a specific particle size
Particle shape parameter distribution and typical values, maximum and minimum particle shape parameters, content within a particle shape parameter range

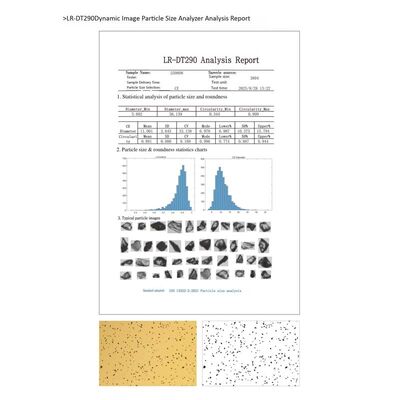

Report Output Format
PDF, XLS
Scope of Application
• Various non-metallic powders: such as heavy calcium carbonate, light calcium carbonate, talc, kaolin, graphite, wollastonite, brucite, barite, mica powder, bentonite, diatomaceous earth, clay, silica, garnet, zirconium silicate, zirconium oxide, magnesium oxide, zinc oxide, etc.
• Various metallic powders: such as aluminum powder, zinc powder, molybdenum powder, tungsten powder, magnesium powder, copper powder, as well as rare earth metal powders and alloy powders, etc.
• Other powders: river silt, lithium battery materials, catalysts, phosphors, cement, abrasives, pharmaceuticals, pesticides, food, coatings, dyes, ceramic raw materials, chemical materials, nanomaterials, papermaking fillers and coatings, various emulsions, etc.
ISO 13322 Image Particle Size and Shape Analyzer Telecentric Optical System Dynamic Dual-channel Particle Morphology Tester
Technical Details

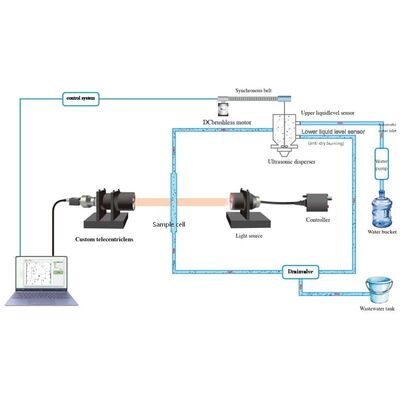

The LR-DT190 Dynamic Image Particle Size and Shape Analysis System utilizes dynamically dispersed particles and high-speed real-time acquisition and analysis. It comprehensively analyzes particle size and shape between 10-5000µm. Dual high-speed cameras acquire images in real-time, and particle image analysis and processing yield particle size and shape parameters. While the detection is in progress, the results are displayed in real-time as a graph. Simultaneously, the detection process can be intuitively checked by observing the particle images. All particle images and parameters are directly calculated and saved to the particle image library during the detection process. After the detection process ends, the results are displayed in different formats.
•Can test particles of various shapes, outputting parameters such as particle size and sphericity.
•Patented dual-camera single-channel technology analyzes particle size and shape from 10-5000µm without hardware adjustments.
• 100% identification of large particles.
• Excellent sieving compatibility; test results are completely consistent with sieving results.
• Excellent reproducibility.
• High-brightness LED light source intelligent management system.
• Low distortion, large depth of field, wide field of view telecentric optical system.
