JIS L 0860 JIS L 0844 Washing Resistant Color Fastness Test Device AATCC 61 ISO 105-C06 Wash Resistance Color Fastness Tester

JIS L 0860 JIS L 0844 Washing Resistant Color Fastness Test Device AATCC 61 ISO 105-C06 Wash Resistance Color Fastness Tester

Scope of Application

Applicable to color fastness testing of various textiles for washing, dry cleaning, and shrinkage resistance; also suitable for assessing the color fastness performance of dyes during washing.

Standards Met

GB/T 3921.1-5, ISO 105-C06, GB 5711, GB/T 12490, JIS L 0860, JIS L 0844, AATCC 61, etc.

Instrument Features

1. The inner and outer casings are all made of high-quality stainless steel, aesthetically pleasing and durable.

2. Touchscreen control with Chinese and English menus, user-friendly interface, and easy operation.

3. The transmission structure uses an all-aluminum geared motor and synchronous pulley, ensuring noiseless operation and accurate and stable speed. The bearings are mounted outside the casing, preventing damage from scaling during long-term immersion in water, ensuring durability.

4. Built-in 5 sets of GB standard programs, 5 sets of AATCC standard programs, and 3 reserved editable experimental programs to meet more testing needs.

5. Temperature-time curves are displayed in real-time during the experiment, allowing for better monitoring of whether temperature changes meet standard requirements.

6. Temperature control uses a PID algorithm with minimal fluctuations, effectively preventing temperature overshoot.

7. The instrument includes a built-in temperature calibration program for easy self-calibration.

8. A door status switch detection device stops the motor when the door is opened, preventing scalding from hot water.

9. The instrument has an automatic water level sensor to prevent dry burning in waterless conditions.

10. The instrument can be fitted with national standard and American standard test cups separately or simultaneously.

JIS L 0860 JIS L 0844 Washing Resistant Color Fastness Test Device AATCC 61 ISO 105-C06 Wash Resistance Color Fastness Tester

Technical Parameters

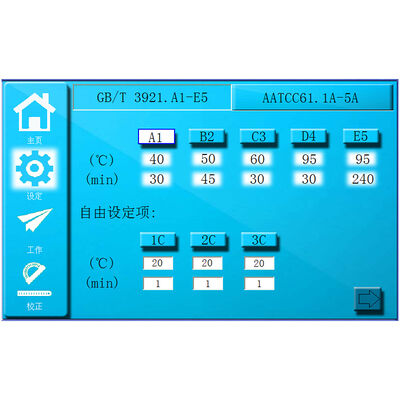

Operating Interface

Optional Auxiliary Instruments and Experimental Consumables

1. Soap flakes, anhydrous sodium carbonate

2. Multi-fiber cloth (six-fiber cloth)

3. Beakers (1500mL or larger), volumetric flasks (1000mL), glass rod

4. Dry cleaning steel sheet

5. Gray card for assessing color change, gray card for assessing staining
