ISO 6722 Automotive Wire Liquid Resistance Tester 380V 4KW

Large Image : ISO 6722 Automotive Wire Liquid Resistance Tester 380V 4KW

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 6722 Automotive Wire Liquid Resistance Tester 380V 4KW

Description

Voltage:	380V	Power Supply:	AC 380V 50Hz 7.5A
Total Power:	4KW	Equipment Weight:	100 Kg
Equipment Volume:	800mm560mm850mm	Protection Class:	Ip56
Test Temperature Range:	Normal Temperature ~ 250℃	Test Group Configuration:	Circular Quartz Glass Oil Cup: Diameter 100mm × 350mm
Inner Tank Volume:	400mm × 450mm × 450mm	Stirring Method:	Motor Stirring
Equipment Material:	Stainless Steel	Temperature Sensor:	Pt10
Oil Cup Diameter:	100mm	Oil Cup Height:	350mm
Inner Tank Dimensions:	400mm × 450mm × 450mm
Highlight:	ISO 6722 automotive wire tester , liquid resistance tester 380V , automotive wire tester 4KW

ISO 6722 SAEJ 1128 Automotive Wire Liquid Resistance Tester JASO D611 Automotive Wires Fluid Resistance Test Machine

This professional testing equipment evaluates automotive wiring resistance to various liquids according to international standards including ISO 6722, SAEJ 1128, QC/T 730, and JASOD 61.

Test Standards Compliance

ISO 6722 automotive wiring standards
SAEJ 1128 specifications
QC/T 730 requirements
JASOD 61 test protocols

Technical Specifications

Test oil (user-provided)	Type: Heating oil for insulation (high-boiling-point, non-volatile oils like transformer oil recommended) Alternative: Water may be used for low-temperature tests
Test medium (user-provided)	Gasoline, diesel, engine oil, alcohol, power steering fluid, automatic transmission fluid, engine coolant, battery acid, etc.
Test temperature range	Normal temperature ~ 250℃
Test group configuration	Circular quartz glass oil cup: Diameter 100mm × 350mm
Inner tank volume	400mm × 450mm × 450mm
Stirring method	Motor stirring
Equipment volume (approximate)	800mm × 560mm × 850mm
Equipment material	Stainless steel (inner and outer layers)
Temperature sensor	Pt10
Equipment weight (approximate)	100 Kg
Power supply	1φ AC 380V 50Hz 7.5A
Total power	4KW

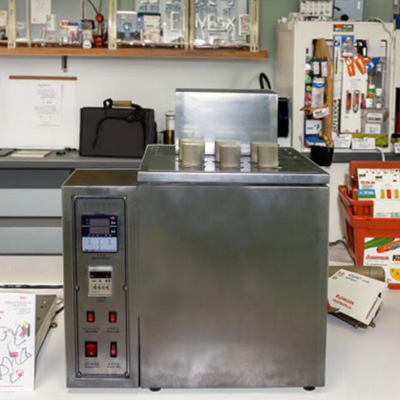

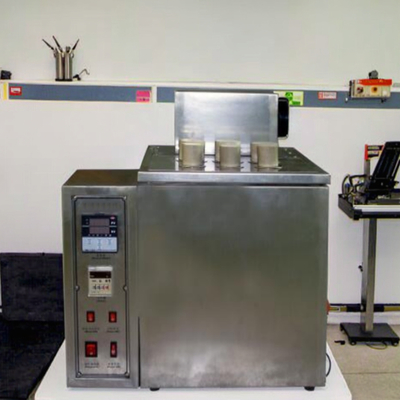

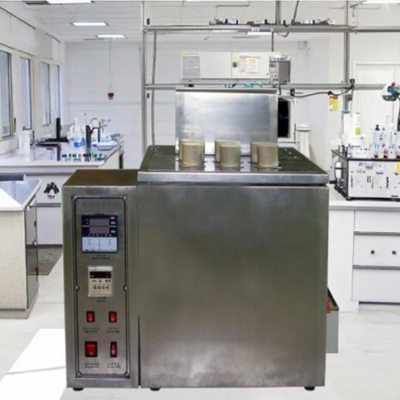

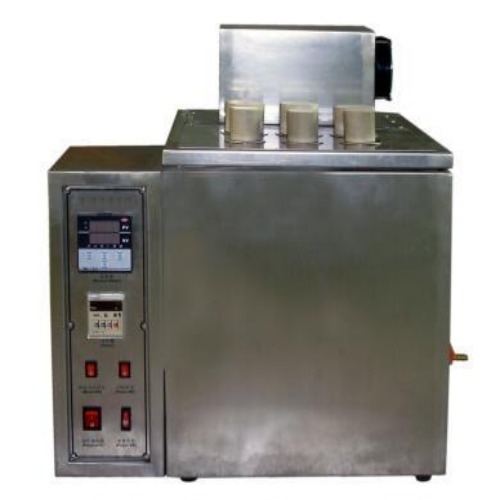

Product Images

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
