GMW 14688 Scratch Tester 220V 65Kg for Material Surface Abrasion Resistance

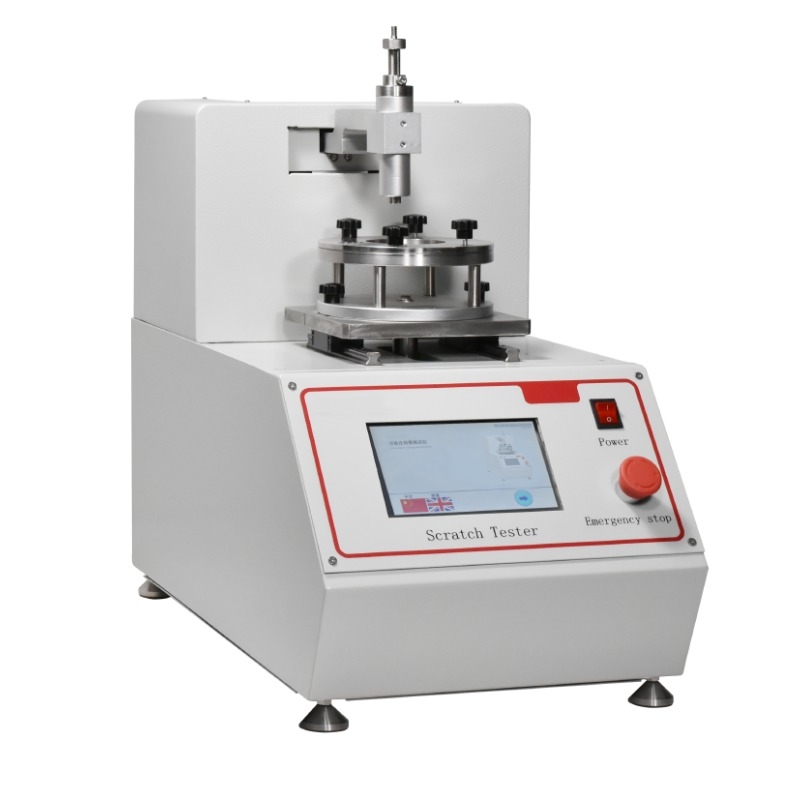

Large Image : GMW 14688 Scratch Tester 220V 65Kg for Material Surface Abrasion Resistance

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

GMW 14688 Scratch Tester 220V 65Kg for Material Surface Abrasion Resistance

Description

Voltage:	220V	Protection Class:	Ip56
Lens Focal Lengths:	25mm / 40mm / 45mm	Dimensions:	700mm * 400mm * 700mm
Weight:	65 Kg	Power Supply:	220V/50HZ
Test Mode:	Automatic	Test Speed:	10 - 200 Mm/s
Scratch Count:	Adjustable	Scratch Head Size:	Freely Interchanged
Scratch Head Elevation:	Pneumatic	Control Panel:	Intelligent Touch Screen
Workstation:	Single Workstation	Overall Dimensions:	700mm * 400mm * 700mm
Highlight:	GMW 14688 scratch tester 220V , material surface abrasion resistance tester , 65Kg textile testing machine

GMW 14688 Material Surface and Coating Abrasion Resistance Performance Testing Machine Scratch Tester

Product Overview

The scratch tester based on the burr method evaluates material surface and coating abrasion resistance by analyzing scratch marks, color difference changes, and coating detachment after tape adhesion. This instrument provides reliable, repeatable test data to help manufacturers control production quality and verify product performance.

Compliant Standards

PV 3952 Plastic Interior Components Scratch Resistance Test
GMW 14688 Method A Abrasion Resistance Test
GMW 14688 B Method - Abrasion Resistance Test

Technical Specifications

Feature	Specification
Test mode	Automatic
Test speed	10 - 200 mm/s
Lens focal lengths	25mm / 40mm / 45mm
Scratch count	Adjustable
Scratch head size	Freely interchangeable
Weight	65 Kg
Scratch head elevation	Pneumatic
Control panel	Intelligent touch screen
Workstation	Single workstation
Overall dimensions	700mm * 400mm * 700mm
Power Supply	220V/50HZ

GMW 14688 Material Surface and Coating Abrasion Resistance Performance Testing Machine

Close-up view of scratch testing mechanism
