BS 5131 SATRA TM3 PM4 Shoe Midsole Bending Tester 220V 149kg

Large Image : BS 5131 SATRA TM3 PM4 Shoe Midsole Bending Tester 220V 149kg

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

BS 5131 SATRA TM3 PM4 Shoe Midsole Bending Tester 220V 149kg

Description

Voltage:	220V	Power Supply:	1Ω, AC 220V, 50Hz
Dimensions:	109 × 26 × 34 Cm	Weight:	149 Kg
Pitch Speed:	(60 ± 10) R/min	Test Fixtures:	6
Test Piece:	80 × 10 Mm	Reciprocating Bending Angle:	90°
Weight With Lower Fixture:	(2 ± 0.01 Kg) × 6	Counter:	LCD, 0 - 999999 (7 Groups)
Clamp Length:	15mm; 10mm	Motor Type:	DC Brushless Motor
Protection Class:	Ip56	Power Supply Amperage:	3A
Test Piece Dimensions:	80 × 10 Mm
Highlight:	BS 5131 shoe midsole tester , SATRA TM3 bending machine 220V , PM4 textile testing machine 149kg

BS 5131 SATRA TM3 PM4 Shoe Midsole Fiber Board Bending Test Machine

Leather Shoes Bending Resistance Tester

The shoe midsole fiber board bending test machine evaluates the bending resistance quality of midsole fiber boards used in leather shoes, casual shoes, walking shoes, and other footwear. During testing, samples are continuously bent 90 degrees left and right until breakage occurs. The number of bends at breakage determines the bending resistance index, providing a basis for midsole board comparison and selection.

Key Features

Tests bending resistance of shoe midsole fiber boards
Continuous 90° left-right bending until breakage
Records number of bends to determine resistance index
Supports comparison and selection of midsole materials

Reference Standards

QB/T 1472, BS 5131:4.2, SATRA TM3, PM4, PM5, PM6, PM15, PM16

Technical Specifications

Specification	Value
Test fixtures	6
Test piece	80 × 10 mm
Reciprocating bending angle	90°
Weight with lower fixture	(2 ± 0.01 kg) × 6
Pitch speed	(60 ± 10) r/min
Counter	LCD, 0 - 999999 (7 groups)
Clamp length of sample holder	15mm (top clamp), 10mm (bottom clamp)
Motor	DC brushless motor
Dimensions	109 × 26 × 34 cm
Weight	149 kg
Power Supply	1Ω, AC 220V, 3A

BS 5131 SATRA TM3 PM4 Shoe Midsole Fiber Board Bending Test Machine

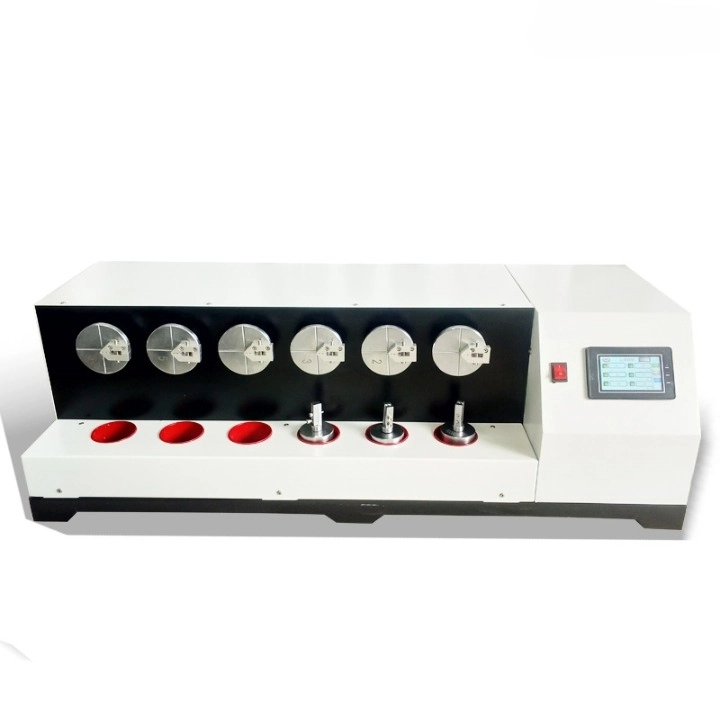

Detailed view of the Bending Resistance Tester
