BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V

BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V
BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V

Large Image :  BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V

Description
Peeling Force: 1000N Cutting Edge Width: 20 ± 0.2 Mm And 10 ± 0.1 Mm
Blade Speed: 20 ± 2 Mm/min Rod Spacing: Adjustable Within 50-70 Mm
Micrometer Range: 0.001-10 Mm Micrometer Accuracy: 0.001 Mm
Movement Range: 40 Mm Dimensions: 560 × 320 × 750 Mm
Power Supply: 1Ω, AC 220V, 50Hz Weight: 45 Kg
Voltage: 220V Protection Class: Ip56
Average Movement Range: 40 Mm Width Options: 20 ± 0.2 Mm And 10 ± 0.1 Mm
Speed Adjustability: Upward And Downward Speeds Adjustable
Highlight:

BS 20344 shoe peel tester

,

textile strength testing machine 1000N

,

220V shoe peel strength tester

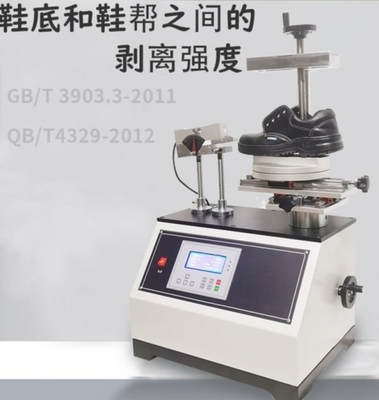

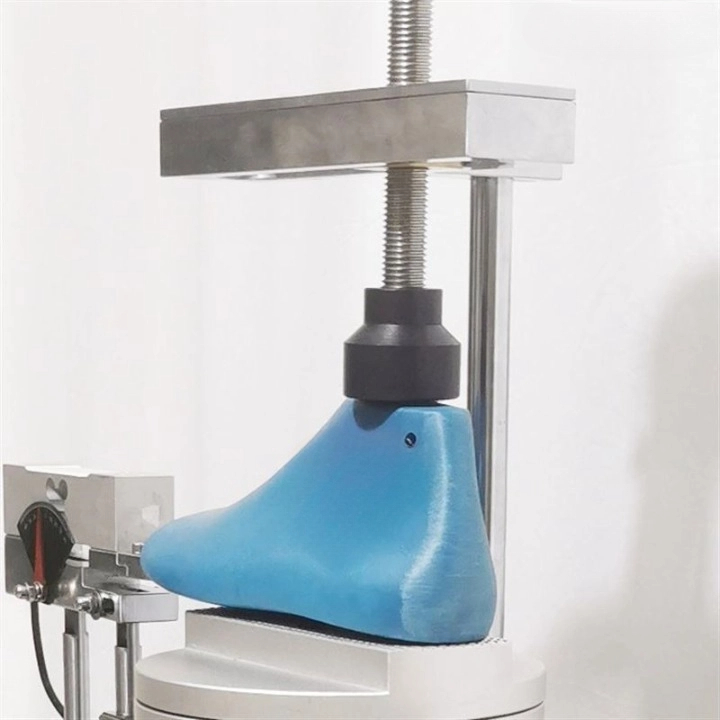

BS 20344 Shoe Peel Strength Test Instrument
Leather Shoes Upper and Sole Bonding Strength Value Testing Machine
The BS 20344 Shoe Peel Strength Test Instrument evaluates the bonding strength between shoe uppers and soles. This precision testing machine simulates real-world conditions to assess material durability and performance.
Instrument Features
  • Evaluates flexure resistance and surface changes in test samples
  • Simulates compression, stretching, and flexure during wear
  • Assesses material performance through wrinkle and fracture analysis
  • Ideal for repeated stretching and fast movement simulations
Compliance Standards
Compliant with GB/T 20991-2007, EN ISO 230344-2012, SATRA TM25, and ISO 4643 standards.
Industry Applications
Used to inspect creases, folds, and damages on samples for material selection reference in shoe manufacturing.
Technical Specifications
Parameter Specification
Peeling Force 1000N
Width of the Cutting Edge 20 ± 0.2 mm and 10 ± 0.1 mm
Downward Speed of the Cutting Blade 20 ± 2 mm/min (adjustable)
Spacing between Positioning Rod and Pull Rod Adjustable within 50-70 mm
Micrometer Range: 0.001-10 mm; Accuracy: 0.001 mm
Average Movement Range 40 mm
Dimensions 560 × 320 × 750 mm (approximate)
Power Supply 1Ω, AC 220V, 50Hz
Weight 45 kg (approximate)
Product Images
BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V 0
BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V 1
BS 20344 Shoe Peel Strength Tester 1000N Capacity 220V 2
