SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine

SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine
SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine

Large Image :  SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine

Description
Voltage: 220V Power Supply: AC 220V, 10A
Extension Speed: (300 ± 30) R/min Extension Stroke: (19 ± 1.5) Mm
Sample Size: (64 ± 1) Mm × (64 ± 1) Mm Test Pieces: 12 Sample Pieces
Clamping Angle: (40 ± 1) Degrees Dimensions: 70cm × 36cm × 37cm
Protection Class: IP56
Highlight:

SATRA TM25 shoe tensile tester

,

leather flexure testing machine 220V

,

shoe material testing equipment 300r/min

ISO 4643 230344 SATRA TM25 Shoe Surface Leather Tensile Testing Machine EN Compression Resistance Tester
Instrument Introduction

The test sample is placed on the VAMP flexure resistance testing machine. After conducting flexure tests at a specified frequency, surface changes on the test sample are observed. The flexure resistance performance is evaluated based on the appearance and severity of wrinkles and fractures.

This testing machine simulates the compression, stretching, and flexure of shoe uppers during wearing and walking, making it ideal for repeated stretching and fast movement tests.

Compliant Standards
  • GB/T 20991-2007
  • EN ISO 230344-2012
  • SATRA TM25
  • ISO 4643
Application Industry

After testing, inspect creases, folds, or damages on samples to serve as reference for selecting optimal shoe upper materials.

Technical Specifications
Parameter Specification
Extension Speed (300 ± 30) r/min
Extension and Retraction Stroke (19 ± 1.5) mm
Sample Size (64 ± 1) mm × (64 ± 1) mm
Number of Test Pieces Capable of testing 12 sample pieces
Clamping Angle (40 ± 1) degrees
Dimensions 70cm × 36cm × 37cm
Power Supply AC 220V, 10A
Product Images

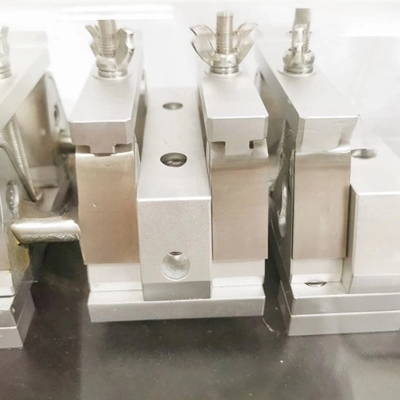

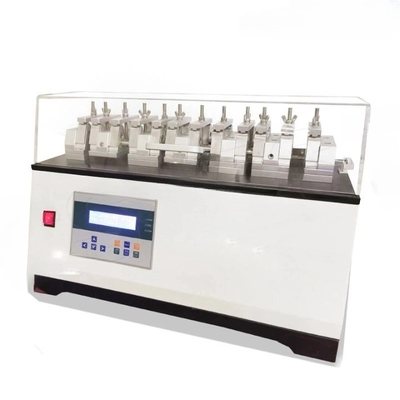

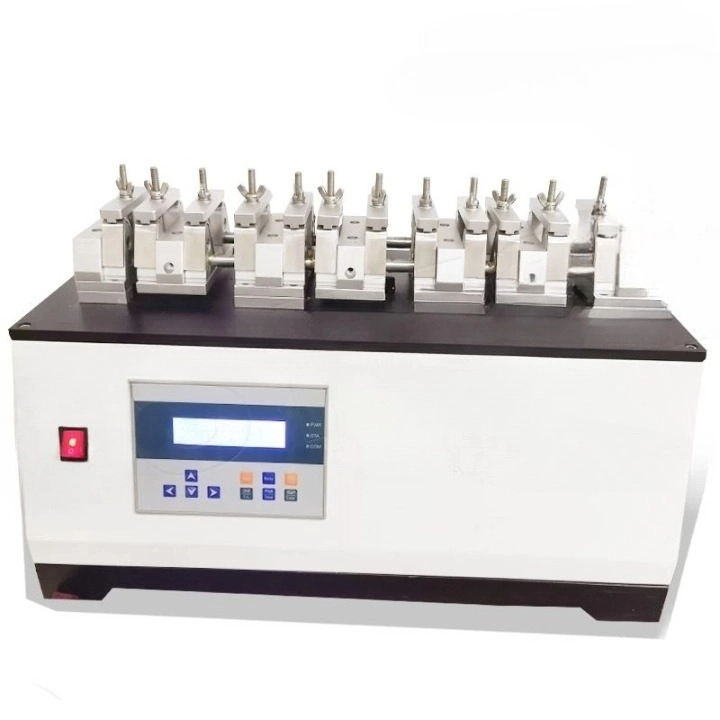

SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine 0
SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine 1
SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine 2
SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine 3
SATRA TM25 Shoe Leather Tensile Tester 220V 300r/min Flexure Testing Machine 4
