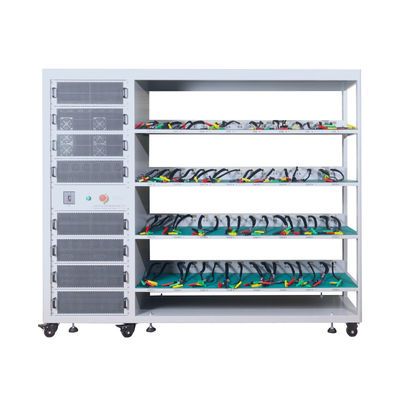

DCIR Testing Machine with 32-bit Dual-core MCU 16-bit ADC and 1 mV/mA Data Resolution for High Power Density Battery Testing

Large Image : DCIR Testing Machine with 32-bit Dual-core MCU 16-bit ADC and 1 mV/mA Data Resolution for High Power Density Battery Testing

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

DCIR Testing Machine with 32-bit Dual-core MCU 16-bit ADC and 1 mV/mA Data Resolution for High Power Density Battery Testing

Description

Input Voltage:	AC 380V±10% 50/60±5Hz	Power Factor:	≥99% (full Load)
Voltage Accuracy:	±0.05%FS	Voltage Resolution:	1mV
Current Accuracy:	±0.05%FS	Current Resolution:	1mA
Current Response Time:	10ms(10%FS ~ 90%FS)	Charge-discharge Conversion Time:	20ms(-90%FS ~ 90%FS)
Minimum Data Recording Time:	10ms	Number Of Work Steps:	2000
Number Of Cycles:	65535	Loop Nesting:	5
Operating Temperature Range:	0℃-45℃	Cooling Method:	Forced Cold Air
Noise Level:	≤80dB
Highlight:	32-bit Dual-core MCU DCIR Testing Machine , 16-bit ADC Battery Testing Equipment , 1 mV/mA Data Resolution Cyclic Charging Discharging Tester

DCIR Testing Machine for High Power Density Batteries

Cyclic Charging/Discharging Function Testing Equipment

Advanced testing equipment for quality control of battery packs used in various applications including home storage systems, electric vehicles, medical equipment, and more. This tester integrates battery pack monitoring with comprehensive charging/discharging functionality.

Key Features

32-bit dual-core MCU processor for high performance
16-bit ADC with system throughput up to 4.4M
Precision measurement: 1 mV/mA data resolution
High accuracy: ±0.05% voltage/current measurement
Energy efficient: >90% feedback efficiency to power grid
Power factor >0.9 for optimal energy usage
MES system integration and permission management
Standard DBC file support
Comprehensive DCIR testing capability
Modular design for easy customization and maintenance

Technical Specifications

Input Parameters

Parameter	Specification
Input Power Supply	AC 380V±10% 50/60±5Hz
Power Factor	≥99% (full load)
THDI	≤5% (full load)
Input Impedance	≥1MΩ
Feedback Efficiency	≥90% (full load)

DC Output Parameters

Parameter	Specification
Voltage Accuracy	±0.05%FS
Voltage Resolution	1mV
Current Accuracy	±0.05%FS
Current Resolution	1mA
Current Response Time	10ms(10%FS ~ 90%FS)
Charge-Discharge Conversion Time	20ms(-90%FS ~ 90%FS)

Workstep Functional Characteristics

Supports comprehensive battery testing including:

Battery pack cycle life testing
Capacity testing
Charge/discharge characteristic analysis
Retention capability evaluation
Efficiency measurement
Overcharge/discharge tolerance testing

Advanced Features

Minimum data recording time: 10ms
Supports up to 2000 work steps
65535 cycle capacity
5-level loop nesting
Multiple charge/discharge modes (CC, CV, CR, CCCV, CP, DC, DP, DR)
Comprehensive cut-off conditions (voltage, current, capacity, etc.)
Advanced execution actions (jump, pause, protection)
DBC file import/editing capability
Real-time DCIR calculation
Data export in Excel/CSV formats

Protection Features

AC Side: Grid voltage protection, surge protection, islanding protection, frequency protection, temperature protection

DC Side: Bus voltage protection, temperature protection, reverse connection protection

Battery Side: Comprehensive voltage, temperature, current, capacity, and communication protection

Power Loss Protection: Memory power-off protection with resume capability

Environmental Specifications

Protection Level: IP20
Operating Temperature: 0℃-45℃
Cooling Method: Forced air cooling
Noise Level: ≤80dB
