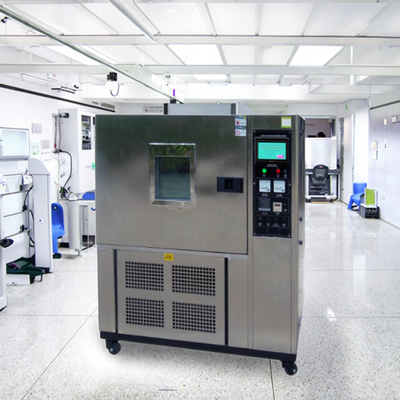

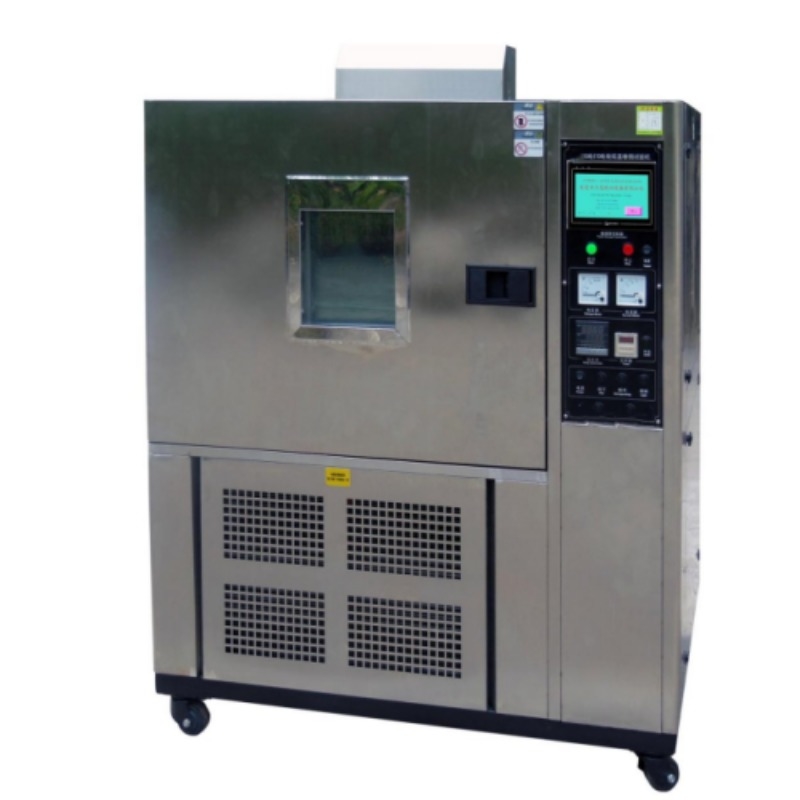

ISO 6722 Automotive Wire Low-Temperature Winding Tester 1500W Servo Motor

Large Image : ISO 6722 Automotive Wire Low-Temperature Winding Tester 1500W Servo Motor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 6722 Automotive Wire Low-Temperature Winding Tester 1500W Servo Motor

Description

Voltage:	220V	Protection Class:	IP56
Servo Motor Power:	1500W	Sample Winding Loops:	3 Loops
Sample Cross-section:	<25mm²	Winding Rod Diameters:	Φ6-98.5mm (optional)
Heavy Weights:	0.5kg, 2.5kg, 5kg, 8kg, 10kg	Combined Weights:	10kg (4 Pieces)
Structural Material:	Stainless Steel	Controller Type:	PLC + Touch Screen
Max Rolling Speed:	130 Rpm	Crimping Loops:	Adjustable
Test Standards:	ISO 6722, ISO 14572, ISO 19642, SAE J1128, QC/T 730, JASOD 611-2009	Sample Capacity:	30kg (2 Samples/group)
Device Type:	Testing Machine
Highlight:	ISO 6722 automotive wire tester , low-temperature winding tester , 1500W servo motor tester

ISO 6722 14572 19642 Automotive Wire Low Temperature Winding Testing Machine

SAE J1128 JASO D611 Circular Cables Tester

The automotive wire low-temperature winding testing machine evaluates and determines the performance of circular cables or circular insulated wire cores under low-temperature conditions.

Compliance Standards

ISO 6722
ISO 14572
ISO 19642
SAE J1128
QC/T 730
JASOD 611-2009

Technical Specifications

Feature	Specification
Low-Temperature Winding Sample	Cross-sectional area: less than 25mm²

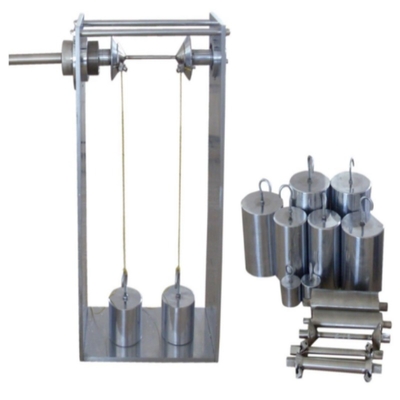

Winding Rod Diameter	Φ6, 8, 10, 12, 15, 18, 20, 25, 30, 32, 40, 50, 58, 62.5, 74, 82.5, 90, 98.5 mm (optional)
Weights	- Heavy weights: 0.5 kg, 2.5 kg, 5 kg, 8 kg, 10 kg - Combined weights: 10 kg (4 pieces) Note: For heavy loads such as 30 kg weights, two samples are tested as one group
Number of Sample Winding Loops	3 loops
Device Structural Material	Rollers and brackets made of stainless steel
Servo Motor (Electric Controller)	1500W
Controller (Electric Controller)	PLC + Touch Screen
Rolling Speed (Electric Controller)	Maximum 130 revolutions per minute (settable via touch screen)
Crimping Loops (Electric Controller)	Number of crimping loops can be set (via touch screen)
