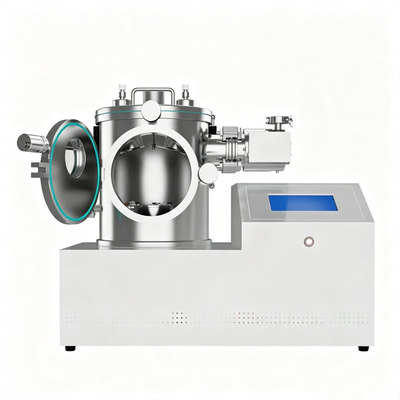

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Large Image : Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Description

Machine Type:	Dual-Target Magnetron Sputtering Coater	Voltage:	220 V
Power(w):	2000	Dimension(lwh):	710480580
Warranty:	1 Year	Weight (kg):	100
Highlight:	Stainless Steel magnetron sputtering coater , Dual-target sputter coating tester , Magnetic controlled deposition system

Products Description

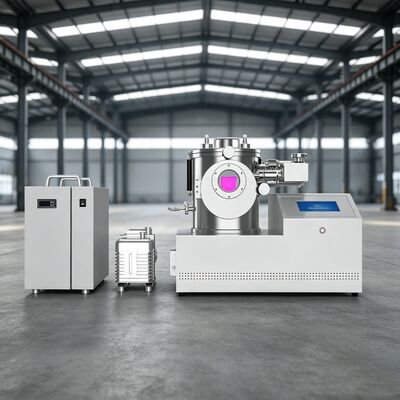

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Brief Introduction This equipment is a dual-target magnetron sputtering coater designed for the deposition of metal thin films. It finds applications in fields such as electronics, optics, and specialized ceramics, and is also suitable for SEM sample preparation in laboratory settings.

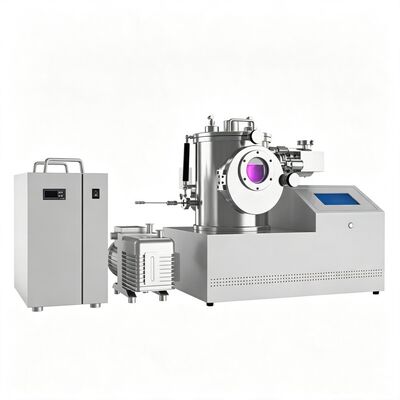

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Detailed Introduction This dual-target magnetron sputtering coater is designed for the deposition of metal thin films, serving applications in electronics, optics, and specialized ceramics, as well as laboratory SEM sample preparation. The system features a high-vacuum stainless steel chamber equipped with a quartz viewing window (including a shutter) for easy observation and recording during experiments. The chamber design ensures excellent vacuum performance and a compact footprint, making it ideal for laboratory use. Additionally, the unit is equipped with a rotating, heated sample stage to effectively enhance film uniformity and deposition quality. The system utilizes a modular design with straightforward operational logic and an intuitive interface, ensuring ease of use.

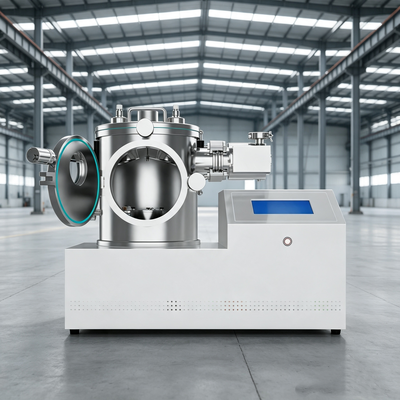

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Applications This device is a dual-target magnetron sputtering coater used for the preparation of metal thin films. It finds applications in electronics, optics, and the fabrication of special ceramics, as well as in laboratory SEM sample preparation.

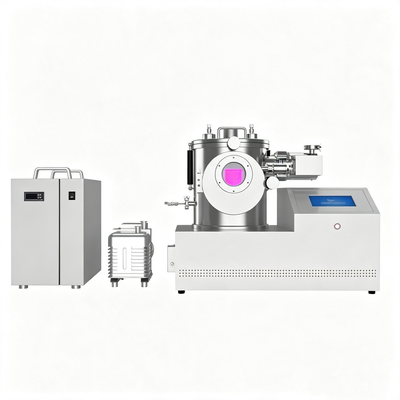

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Specification

Technical Specifications

Category	Item	Specification
Product Name	Benchtop Dual-Target Magnetron Sputtering Coater with Stainless Steel Chamber
Model	LR-CK103
Sample Stage	Dimensions	φ100 mm
Sample Stage		Adjustable Rotation Speed	≤20 rpm
Magnetron Target Guns	Equipped with two 2-inch magnetron targets; target dimensions: 50.8 mm diameter, ≤3 mm thickness
Vacuum Chamber	Chamber Dimensions	φ273 mm × 280 mm
		Observation Window	Front-facing
		Chamber Material	304 Stainless Steel
		Opening Mechanism	Top lid and front door
Vacuum System	Roughing Pump	Two-stage rotary vane pump
		Molecular Pump	High-speed turbomolecular pump
		Vacuum Measurement	Compound vacuum gauge
		Vacuum Port	ISO63
		Exhaust Port	KF16
		System Ultimate Vacuum	1.0 × 10⁻⁴ Pa
		Power Supply	AC 220V, 50/60 Hz
		Pumping Speed	Roughing pump speed: 1.1 L/s
		Output Power	DC power supply: 500 W
Other Parameters	Input Voltage	AC 220V, 50 Hz
		Total System Power	2 kW
		Overall Dimensions	710 × 480 × 580 mm

Our Advantages

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748

Other Products

ISO 12156 Contact Fatigue Wear Testing Equipment 5KW Tumble Test Machine with 1 to 2000 RPM and ±0.5% Speed Control Accuracy

Load range: 80N--30000N

Load display error: ±1%

Long-term load error: ±1%

Motor power: 5KW

Reciprocating Friction Test Machine with 0 - 10Hz Repetitive Frequency 800N Maximum Test Force and 0 - 20mm Repetitive Stroke

Maximum test force: 800N ±1%

Repetitive frequency: 0 - 10 Hz

Repetitive stroke: 0 - 20 mm

Test temperature: Room temp to 1200℃ ±2℃

Pin-disk Tribometer 220V 50Hz Friction and Wear Testing Machine with 1N.m Maximum Friction Torque and ±2% Measurement Accuracy

Maximum friction torque: 1N.m

Friction torque accuracy: ±2%

Pin specimen diameter: 4mm optional

Maximum load: 30Kg

ASTM Lab Test Machine 3000N Maximum Test Force Ring Block Tester with ±1% Friction Force Accuracy and Servo Fully Automatic Loading

Maximum test force: 3000N

Maximum friction force: 300N

Friction force accuracy: ±1%

Test force accuracy: ±0.5%

Timken Analyzer Ring Block Wear Testing Machine with 3000N Maximum Test Force ±1% Accuracy and ±2% Spindle Speed Error

Test force accuracy: ±1%

Maximum friction force: 300N

Spindle speed error: ±2%

Display range: 0-9999999

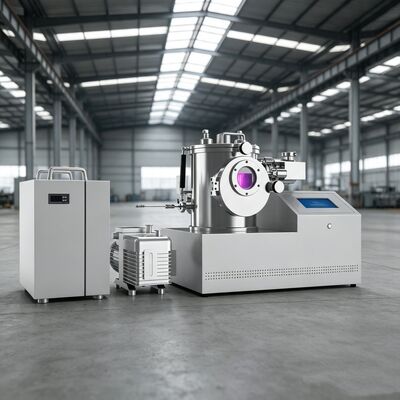

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System
