IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine

IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine
IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine

Grote Afbeelding :  IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine

Productdetails:
Plaats van herkomst: CHINA
Merknaam: Lonroy
Certificering: ISO ASTM CE
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Negotaible
Verpakking Details: houten pakket
Levertijd: 5-8 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union
Levering vermogen: 200

IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine

beschrijving
Spanning: 220 V Beschermingsklasse: IP67
Maximale klem: 15 kg Impact -element 2j: 0,5 ± 5 g
Impactelement 5j: 1,7 ± 5 g Impactelement 10J: 5,0 ± 5 g
Impactelement 20J: 5,0 ± 5 g De Waaier van de dalingshoogte: 2001300mm
Druppel hoogte nauwkeurigheid: ± 1 mm Schokafgifte: Handmatig, magnetisch
Hoogtecontrole: Handwiel, kogelschroef Installatieafstand: > 100 mm
Type impactelement: 2J/5J/10J/20J Katheter: Optioneel per impactelement
Universele armatuur: Maximale klem: 15kg
Markeren:

IEC 60068 vertical drop hammer

,

IK vertical falling weight tester

,

drop test machine with warranty

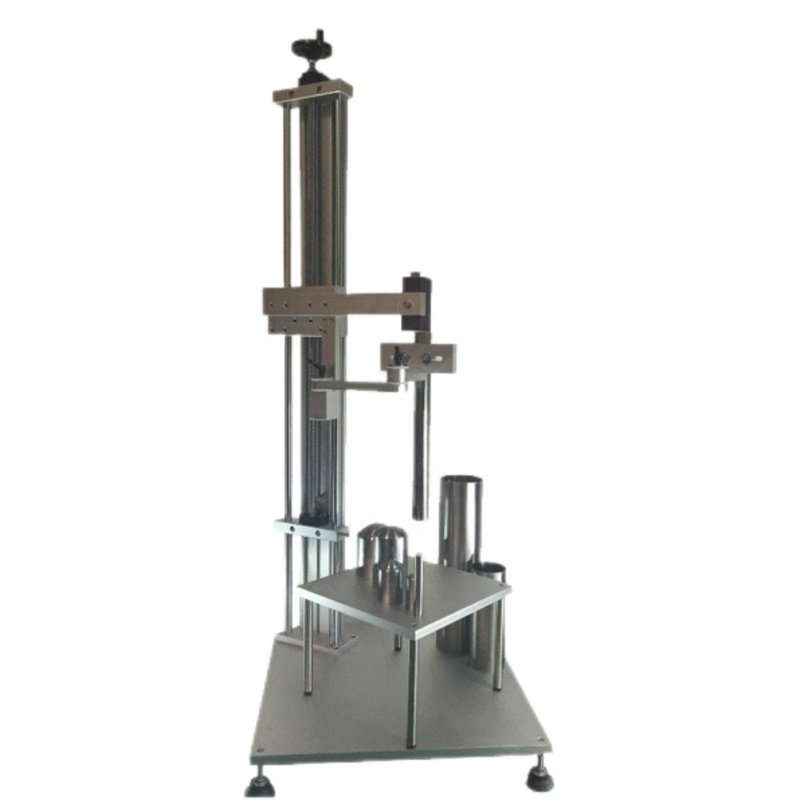

IEC 60068 IK Vertical Drop Hammer Testing Device
Vertical Falling Weight Test Machine
The vertical drop weight test device is designed and manufactured according to IEC60068-2-75 (GB/T2325.55) standard for impact resistance testing of household appliances, electronic and electrical products, and their accessories.
The hammer consists of a basic impact element with selectable drop heights from the standard table. The impact element conforms to specifications in Table 1 of the standard. The guided tube minimizes constraints while ensuring free fall, with proper clearance to reduce friction.
Equipment Installation and Commissioning
Installation Conditions
  • Must be placed horizontally with anchor screws adjusted during first installation
  • After level adjustment, tighten the anchor screw anti-lock nut
  • Minimum wall distance: >100mm (corner placement recommended for safety)
Equipment Debugging
  • Verify handwheel installation and tightness
  • Check universal manipulator jig movement
  • Select appropriate impact element and conduit per standards
Catheter Installation
  • Upper catheter section should be 1-5πm below magnetic base
  • Pipe should align with Type 1 card slot of universal manipulator fixture
  • Fine-tune jig for vertical downward alignment
  • Adjust manipulator fixture so catheter inner wall is tangent to V mouth of magnetic seat
Technical Specifications
Item Technical Parameter
Impact Element Accessories: 2J/5J/10J/20J each
2J Equivalent mass: 0.5±5g
5J Equivalent mass: 1.7±5g
10J Equivalent mass: 5.0±5g
20J Equivalent mass: 5.0±5g
Restraint Catheter Optional per impact components: 2J/5J/10J/20J
Universal Fixture Maximum clamping: 15KG
Shock Release Manual, magnetic. Double-sided four-position card slot for easy impact element replacement
Drop Height Manual adjustable range: 200-1300mm; Effective accuracy: ±1mm
Height Control Hand wheel, ball screw, with ruler
IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine 0 IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine 1 IEC 60068 IK Vertical Drop Hammer Testing Device Vertical Falling Weight Test Machine 2
