ASTM D4632M FZ/T 01010 Geosynthetic Composite Material Testing Machine with 50KN Test Force for Textile Strength Testing

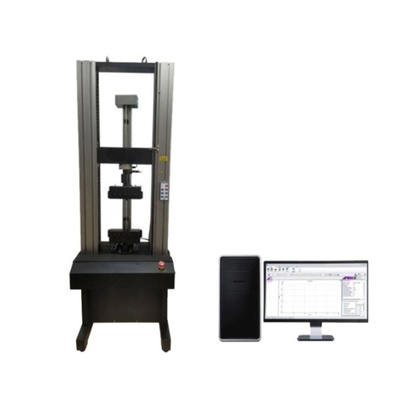

Large Image : ASTM D4632M FZ/T 01010 Geosynthetic Composite Material Testing Machine with 50KN Test Force for Textile Strength Testing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D4632M FZ/T 01010 Geosynthetic Composite Material Testing Machine with 50KN Test Force for Textile Strength Testing

Description

Test Force:	50KN	Accuracy Grade:	Level 0.5
Force Indication Error:	±0.5%	Deformation Measurement Range:	0.2% - 100% FS
Deformation Error:	±0.5%	Large Deformation Range:	10 - 800mm
Displacement Error:	±0.5%	Displacement Resolution:	0.025 Micrometers
Force Control Speed:	0.01 - 5% FS/S	Force Control Error:	±1%
Stretching Space:	1000mm	Test Width:	410mm
Voltage:	220 V	Protection Class:	Ip56
Control Modes:	Stress, Strain, Displacement
Highlight:	ASTM D4632M Geosynthetic Composite Material Testing Machine , FZ/T 01010 Geosynthetic Composite Material Testing Machine , 50KN Test Force Strength Testing Machine

ASTM D4632M FZ/T 01010 Electronic Geosynthetic Composite Material Comprehensive Strength Testing Machine

Product Overview

The electronic geosynthetic composite material comprehensive strength testing machine is designed for mechanical property testing and analysis of non-metallic materials, including tensile, compression, and bending tests. Featuring three closed-loop control modes (stress, strain, and displacement), it calculates key parameters such as experimental force, tensile strength, bending strength, compression strength, elastic modulus, fracture elongation rate, and yield strength. Compliant with international standards including GB, ISO, JIS, ASTM, and DIN.

Key Features

High-precision pre-loaded non-segmented ball screw
Premium brand servo motors and servo drives
Taiwan Precision Machine high-precision deceleration system
American brand load sensor
LAB-350 Measurement Control System
Pre-loading settings and manual fine-tuning functions
Constant force, constant strain, and constant displacement loading capabilities
Intuitive operation with four-step experiment completion
Flexible, fully functional test plans
Stable testing process with rich output information
Powerful data analysis with user-friendly interface
Customizable test report formats
Optional LIMS configuration
User classification management for enhanced system and data security
Customizable auxiliary functions for individual user needs

Compliant Standards

GB/T 16491-2022, GB/T 15788-2017, GB/T 13763-2010
ASTM D4632M- a15, GB/T2191, FZ/T01010
CJ/T452-2014, GB18173.1-2012, JC/T2112

Technical Specifications

Parameter	Specification
Test force	50KN
Accuracy grade	Level 0.5
Test force indication error	Within ±0.5%
Deformation measurement range	0.2% - 100% FS
Deformation indication error	Within ±0.5% of indicated value
Large deformation measurement range	10 - 800mm
Displacement reading error	Within ±0.5% of indicated value
Displacement resolution	0.025 micrometers
Force control speed range	0.01 - 5% FS/S
Force control rate error	Within ±1% of set value
Effective stretching space (without fixtures)	1000mm
Effective test width	410mm

ASTM D4632M FZ/T 01010 Electronic Geosynthetic Composite Material Comprehensive Strength Testing Machine

Detailed view of testing machine components
