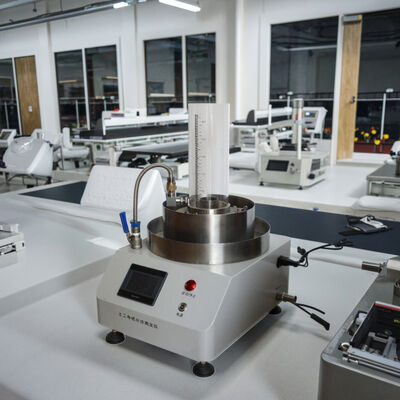

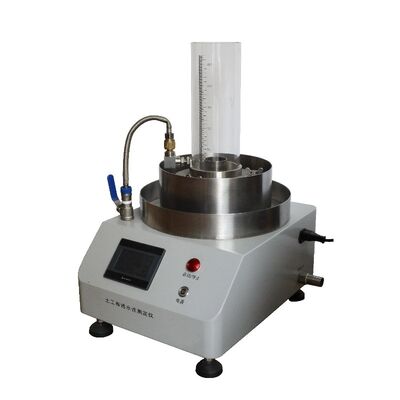

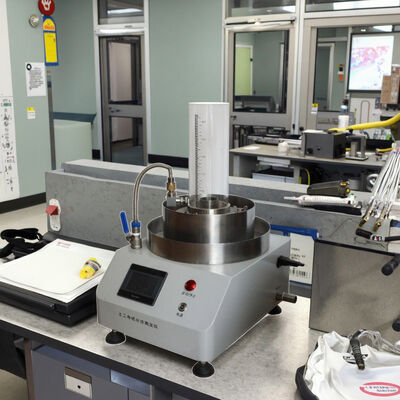

ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine

Large Image : ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine

Description

Type:	Testing Machine	Accuracy:	/
Application:	Auto Testing	Customized Support:	OEM, ODM, OBM
Power:	100W	Protection Class:	Ip56
Voltage:	220 V	Warranty:	1 Year
Thermometer Range:	(0~50)℃ (accuracy: 0.1℃)	Weight:	25kg
Power Supply:	AC220V±10%, 50Hz, 100W	Overall Dimensions:	(400500850)mm
Highlight:	ISO 11058 geotextile hydraulic conductivity tester , ASTM D4716 geotextile water permeability machine , high precision geotextile testing machine

ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine

Scope of Application

It is used for testing the vertical permeability performance of geotextiles and composite materials.

Relevant Standards

GB/T15789, JTG E50, SL/T235, ISO11058, ASTM D4716

ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine

Technical Specification

Maximum water head pressure difference	250mmH2O (2450Pa)
Water level graduation value	1mm
Inner diameter of the clamping device	(50±0.5)mm
Applicable sample thickness	≤20mm
Time controller	(0~99.99) seconds
Graduated cylinder	1000ml (graduation: 10ml)
Water level graduation value	1mm
Thermometer range	(0~50)℃ (accuracy: 0.1℃)
Power supply	AC220V±10%, 50Hz, 100W
Overall dimensions	(400×500×850)mm
Weight	25kg
