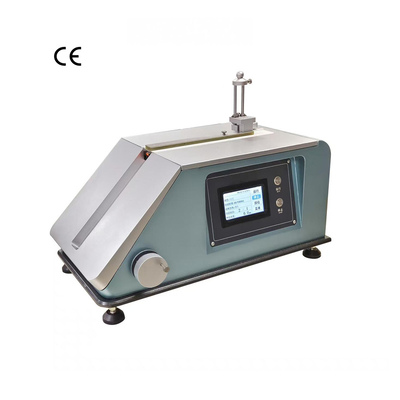

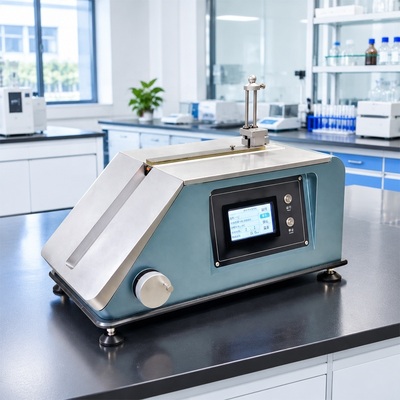

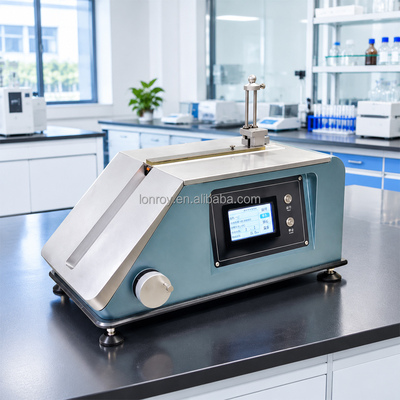

ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment

ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment

Large Image :  ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment

Description
Type: Testing Machine Accuracy Class: High Accuracy
Accuracy: ±0.2% Application: Auto Testing, Laboratory Testing, Lab Testing
Customized Support: OEM, ODM, OBM, Software Reengineering Power: /
Protection Class: Ip56 Voltage: 220 V, Other
Warranty: 1 Year

PRODUCT HIGHLIGHTS
  • Multi-Standard Compliance: Complies with GB/T 18318.1-2009, ISO 9073-7-1995, and ASTM D1388-1996.
  • Versatile Material Testing: Tests woven, knitted, non-woven, coated fabrics, paper, leather, and thin films.
  • High-Speed Data Acquisition: Utilizes infrared measurement system for rapid and precise data collection.
  • Adjustable Testing Speed: Speed ranges from 0.1 mm/s to 10 mm/s using Kinco stepper motor.
  • Stable Transmission System: Employs ball screw and linear guide rail for smooth, oscillation-free operation.
  • Customizable Test Modes: Includes three standard modes plus one fully customizable user-defined mode.
  • Dual Language Interface: Offers both Chinese and English intelligent control interfaces.
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
Instrument application This instrument is designed to measure the stiffness of various textile materials—including woven, knitted, non-woven, and coated fabrics made from cotton, wool, silk, linen, or chemical fibers—as well as other flexible materials such as paper, leather, and thin films. Compliance Standards Complies with standards including GB/T 18318.1-2009, ISO 9073-7-1995, and ASTM D1388-1996. Instrument Features 1. The control panel is constructed from specialized aluminum and features durable metal buttons, ensuring responsive operation and long-term reliability. 2. Supports testing at angles of 41°, 43.5°, and 45°; the angle positioning is convenient and meets the requirements of various testing standards. 3. Utilizes an infrared measurement system for rapid response and precise data acquisition. 4. Equipped with a touchscreen interface for simple, intuitive, and convenient operation. 5. Offers both Chinese and English language interfaces with intelligent control. 6. Powered by a Kinco stepper motor, with an adjustable testing speed ranging from 0.1 mm/s to 10 mm/s. 7. Employs a ball screw and linear guide rail transmission system to ensure smooth, stable operation without oscillation. 9. The pressure plate secures the specimen via its own weight, in compliance with standards, while preventing any deformation of the specimen. 10. The pressure plate includes a built-in scale, allowing for real-time monitoring of the travel distance. 11. Features a printer interface, enabling direct output of data reports. 12. Includes three pre-configured standard test modes plus one customizable mode; all parameters are fully adjustable, allowing users to define their own test protocols. 13. For each of the three standard modes and the custom mode, up to 99 sets of data can be recorded for each specimen orientation (warp and weft directions).
PRODUCT PARAMETERS
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
Technical Specification
Test Stroke
5～200mm
Length Unit
mm, cm, in switchable
Test Cycles
≤99 times
Stroke Accuracy
0.1mm
Stroke Resolution
0.01mm
Speed Range
0.1mm/s～10mm/s
Measuring Angle
41.5°, 43°, 45°
Work Platform Size
40mm×250mm
Pressure Plate Size
National standard 25mm×250mm, (250±10)g
Overall Dimension
600mm×300mm×450mm (L×W×H)
Power Supply
AC220V,50Hz,100W
Net Weight
20KG
PRODUCT IMAGES
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
COMPETITIVE ADVANTAGES
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
COMPANY OVERVIEW
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
CERTIFICATION & EXHIBITION
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
PACKAGING & DELIVERY
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
FAQ
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
ISO 9073 ASTM D1388 Fabrics Stiffness Tester Clothing Physical Flexural Rigidity Test Machine Textile Hardness Testing Equipment
