ISO 15025 BS EN 469 Vertical Textiles Flame Retardancy Test Machine ISO 11612 Fabric Burning Tester Flammability Test Device

ISO 15025 BS EN 469 Vertical Textiles Flame Retardancy Test Machine ISO 11612 Fabric Burning Tester Flammability Test Device
ISO 15025 BS EN 469 Vertical Textiles Flame Retardancy Test Machine ISO 11612 Fabric Burning Tester Flammability Test Device ISO 15025 BS EN 469 Vertical Textiles Flame Retardancy Test Machine ISO 11612 Fabric Burning Tester Flammability Test Device

Large Image :  ISO 15025 BS EN 469 Vertical Textiles Flame Retardancy Test Machine ISO 11612 Fabric Burning Tester Flammability Test Device

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Certification: CE,ISO,ASTM,DPR,ROHS
Model Number: LR-Z206
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 7 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 200
Contact Now

ISO 15025 BS EN 469 Vertical Textiles Flame Retardancy Test Machine ISO 11612 Fabric Burning Tester Flammability Test Device

Description
Highlight:

Stainless Steel Flame Retardancy Test Machine

,

Industrial Touchscreen Fabric Burning Tester

,

Motor-Driven Ignition Flammability Test Device

ISO 15025 BS EN 469 Vertical Textiles Flame Retardancy Test Machine ISO 11612 Fabric Burning Tester Flammability Test Device
Product Overview

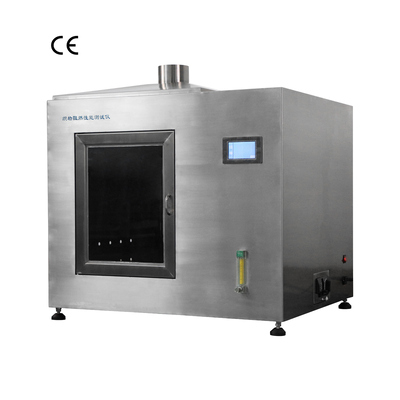

The fabric flame retardancy tester is designed to determine the vertical-orientation burning behavior of materials requiring flame retardancy, such as woven fabrics, knitted fabrics, coated products, and laminated products.

Standards Compliance

ISO 11612, ISO 15025, BS EN 469

Instrument Features
  • Constructed entirely of stainless steel to prevent staining from smoke

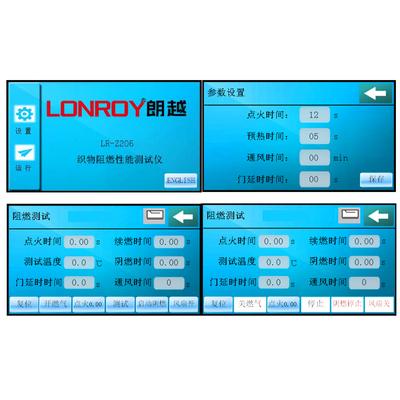

  • Features an industrial-grade color touchscreen for display and control; durable and user-friendly
  • Motor-driven ignition mechanism enables convenient automatic ignition
  • Flame height is adjusted via a flow meter, eliminating the need for constant gas pressure
  • Adjustable ignition wire duration ensures reliable ignition across various operating environments
Technical Specifications
Parameter Specification
Timing range Afterflame time: 0.1～999.9s, accuracy 0.1s; Flame-retardant time: 0.1～999.9s, accuracy 0.1s
Preheating time 3～20s, accuracy 0.1s
Ignition time 0～99s, accuracy 0.1s
Test clamp size Method A specimen clamp outer frame: 200mm*160mm, inner frame 180mm*140mm; Method B specimen clamp outer frame: 200mm*80mm, inner frame 180mm*60mm
Igniter nozzle diameter 7mm; nozzle angle to vertical line adjustable to 0°, 30°, 90°
Igniter gas Propane or butane; Pressure 17.2±1.7kPa, pressure adjustable
Flame height 41±2mm, adjustable
Internal dimension of test chamber 640*740*740mm
Overall dimension 910*760*900mm
Weight 65kg
Power supply AC220V 50Hz 100W
