ISO 22958 AATCC 35 Textiles Rain Resistance Tester Fabrics Water Impact Waterproof Analyzer Rain Penetration Test Machine

Large Image : ISO 22958 AATCC 35 Textiles Rain Resistance Tester Fabrics Water Impact Waterproof Analyzer Rain Penetration Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z203

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	D/A,D/P,T/T,L/C
Supply Ability:	200

Contact Now

ISO 22958 AATCC 35 Textiles Rain Resistance Tester Fabrics Water Impact Waterproof Analyzer Rain Penetration Test Machine

Description

Highlight:

ISO 22958 AATCC 35 Rain Resistance Tester

High-precision pressure sensor Water Impact Analyzer

Built-in heating unit Rain Penetration Test Machine

ISO 22958 AATCC 35 Textiles Rain Resistance Tester

Product Overview

The Fabrics Water Impact Waterproof Analyzer is designed to measure the resistance of textiles to rain penetration under various water impact intensities. This rain penetration test machine provides precise and reliable results for quality control and research applications.

Scope of Application

Used to measure the resistance of fabrics to rain penetration under conditions of water impact at varying intensities.

Standards Compliance

GB/T 23321, ISO 22958, AATCC 35

Instrument Features

Constructed entirely from high-quality stainless steel
Features a color touchscreen control system with bilingual (Chinese/English) interface
Allows for setting of test duration and water pressure, with automatic adjustment of water valve to target pressure
Equipped with high-precision pressure sensor for accurate water pressure control
Includes built-in heating unit

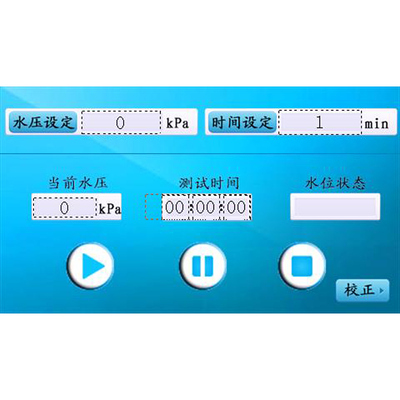

Operation Interface

Technical Specifications

Parameter	Specification
Nozzle to specimen distance	305mm
Number of nozzle holes	13 holes; diameter 0.99±0.013mm
Water pressure setting range	6kPa～24kPa
Water temperature setting range	Room temperature ~ 50℃
Overall dimension	790×560×730mm
Weight	50kg
Power supply	AC220V 50Hz 1600W
