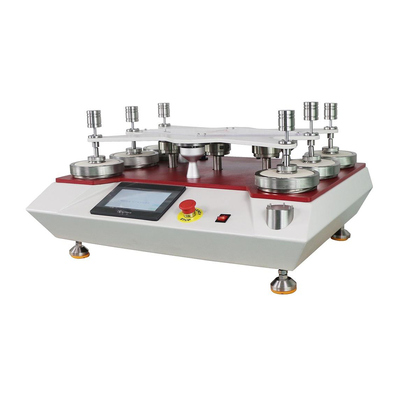

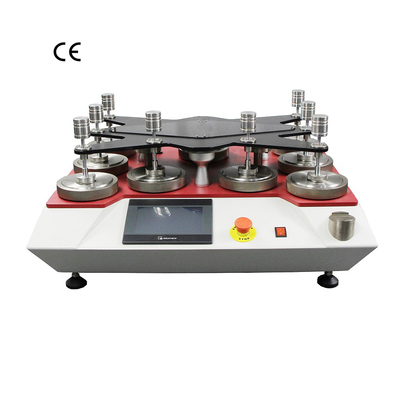

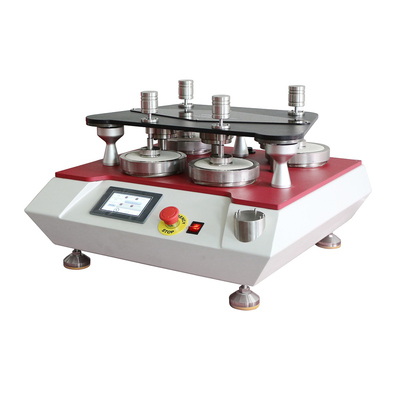

ASTM D4966 ISO 5470 Fabric Martindale Abrasion Test Machine BS 2543 JIS L1096 Textile Anti-wear Pilling Resistance Tester

Large Image : ASTM D4966 ISO 5470 Fabric Martindale Abrasion Test Machine BS 2543 JIS L1096 Textile Anti-wear Pilling Resistance Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z188

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Contact Now

ASTM D4966 ISO 5470 Fabric Martindale Abrasion Test Machine BS 2543 JIS L1096 Textile Anti-wear Pilling Resistance Tester

Description

Highlight:

8-Station Martindale Abrasion Test Machine

Stainless Steel Construction Fabric Abrasion Tester

7-inch Color Touchscreen Textile Anti-wear Pilling Resistance Tester

ASTM D4966 ISO 5470 Fabric Martindale Abrasion Test Machine

This professional testing instrument evaluates abrasion resistance, pilling resistance, and surface changes in various textile materials including woven fabrics, knitted fabrics, pile fabrics, coated fabrics, and non-woven fabrics.

Scope of Application

Determines the abrasion resistance, pilling resistance, and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics, and non-woven fabrics.

Standards Compliance

Abrasion Testing: GB/T 21196.2, GB/T 13775, ISO 12947, ISO 17704, ISO 5470-2, ASTM D 4966, IWS TM 112, BS 2543, BS 3424-24, BS 5690, M&S P19, Next 18, SN 198529, TWC 112, JIS L1096

Pilling Testing: GB/T 4802.2, ISO 12945-2, ASTM D 4970, IWS TM 196, M&S P17, Next TM 26, SN 198525

Instrument Features

Standard Lissajous curves with factory-supplied curve calibration pen
High-quality stainless steel weights and key components for durability
Special aluminum alloy pressure plates resistant to deformation
Needle roller bearings and CNC precision machining for consistent test results
Adjustable speed range of 20-70 r/min for various testing standards
Brushless motor drive for smooth, noise-free operation
7-inch color touchscreen with bilingual (Chinese/English) interface
Dual counting modes and individual station locking capability

Technical Specifications

Parameter	Specification
Test Station	8 stations
Counting Range	1～999,999 cycles
Friction Stroke	24±0.5mm, 60.5±0.5mm
Weight of Pressure Load	Abrasion Head: 198±2g Fabric Specimen Weight: 395±2g Furniture Decoration Specimen Weight: 594±2g Abrasion Head: 155±1g Stainless Steel Disc: 260±1g
Effective Friction Diameter	198g Abrasion Head: φ28.65±0.05mm 155g Abrasion Head: φ90±0.10mm
Relative Motion Speed	47.5±2.5r/min (adjustable 20～70r/min)
Specimen Clamping Weight	2.5kg±0.5kg
Overall Dimension	780620330mm
Power Supply	AC220V 50Hz 500W
Net Weight	120kg
