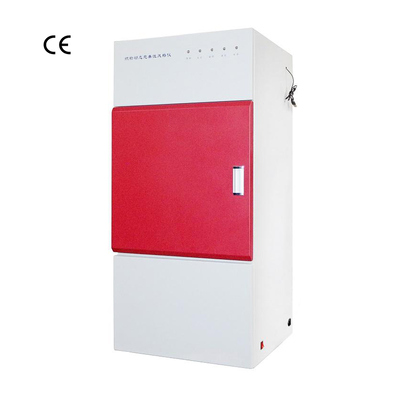

ISO 9073 FZ/T 01045 Fabrics Drape Analyzer Textiles Liveliness Test Machine Garment Aesthetic Coefficient Tester

ISO 9073 FZ/T 01045 Fabrics Drape Analyzer Textiles Liveliness Test Machine Garment Aesthetic Coefficient Tester
ISO 9073 FZ/T 01045 Fabrics Drape Analyzer Textiles Liveliness Test Machine Garment Aesthetic Coefficient Tester ISO 9073 FZ/T 01045 Fabrics Drape Analyzer Textiles Liveliness Test Machine Garment Aesthetic Coefficient Tester

Large Image :  ISO 9073 FZ/T 01045 Fabrics Drape Analyzer Textiles Liveliness Test Machine Garment Aesthetic Coefficient Tester

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Certification: CE,ISO,ASTM,DPR,ROHS
Model Number: LR-Z200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 7 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 200
Contact Now

ISO 9073 FZ/T 01045 Fabrics Drape Analyzer Textiles Liveliness Test Machine Garment Aesthetic Coefficient Tester

Description
Highlight:

CCD image acquisition sensor Fabrics Drape Analyzer

,

Professional analysis software Textiles Liveliness Test Machine

,

Built-in calibration function Garment Aesthetic Coefficient Tester

ISO 9073 FZ/T 01045 Fabrics Drape Analyzer Textiles Liveliness Test Machine Garment Aesthetic Coefficient Tester
Scope of Application: Used for testing the dynamic and static drape performance indicators (such as drape coefficient, liveliness, surface undulation, and aesthetic coefficient) of various fabrics.
Standards Compliance
  • GB/T 23329 Textiles - Determination of fabric drape
  • FZ/T 01045 Test method for fabric drape
  • ISO 9073-9 Textiles - Test methods for nonwovens - Part 9: Determination of drape coefficient
Instrument Features
  • Utilizes a CCD image acquisition sensor, offering high capture speeds and authentic dynamic data acquisition
  • Features professional analysis software that automatically calculates results through image processing
  • Includes a built-in calibration function, allowing for one-touch instrument calibration
  • Test modes: Manual and automatic
Technical Specifications
Circular clamping disc φ12cm (φ18cm optional)
Sample size φ24cm (φ30cm and φ36cm optional)
Image sensor CCD sensor
Static & dynamic drape coefficient 0-100%; error less than ±2%
Error of static & dynamic drape surface wave number ±1
Drape shape change rate 0-100%; error less than ±2%
Static & dynamic drape uniformity 0-100%; error less than ±2%
Rotation speed 20-300r/min adjustable
Overall dimension 710*700*1450mm
Weight 112kg
Power supply AC220V 50Hz 300W
