BS 7914 AATCC 183 Fabrics UPF Test Machine Textiles UV Protection Tester Garment Clothing UV Transmittance Sun Blocking Analyzer

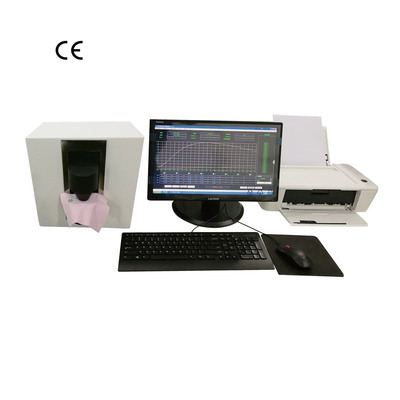

Large Image : BS 7914 AATCC 183 Fabrics UPF Test Machine Textiles UV Protection Tester Garment Clothing UV Transmittance Sun Blocking Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

BS 7914 AATCC 183 Fabrics UPF Test Machine Textiles UV Protection Tester Garment Clothing UV Transmittance Sun Blocking Analyzer

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	BS 7914 UPF test machine , AATCC 183 UV transmittance tester , textile UV protection analyzer

PRODUCT HIGHLIGHTS

Automatic UPF Determination: Automatically determines Ultraviolet Protection Factor for textiles.
Professional Software Analysis: Features computer software for statistical reporting and graphical analysis.
High Precision Measurement: Uses UV photomultiplier tube for wide range and high accuracy.
Wide Testing Standards: Complies with GB/T 18830, AATCC 183, AS/NZS 4399, BS 7914, PREN 13758.
Deuterium Lamp Source: Utilizes deuterium lamp with high-precision UV monochromator.

BS 7914 AATCC 183 Fabrics UPF Test Machine Textiles UV Protection Tester Garment Clothing UV Transmittance Sun Blocking Analyzer

Application A specialized instrument for testing the UV transmittance and UV-blocking performance of textiles; capable of automatically determining the Ultraviolet Protection Factor (UPF). Standards GB/T 18830, AATCC 183, AS/NZS 4399, BS 7914, PREN 13758 Instrument Features 1. Features professional computer analysis software for statistical reporting, intuitive graphical analysis, and more. 2. Utilizes a deuterium lamp light source, a high-precision UV monochromator, and a UV integrating sphere; wavelength scanning is performed automatically via a stepper motor. 3. Employs a UV photomultiplier tube, ensuring a wide testing range and high measurement accuracy.

BS 7914 AATCC 183 Fabrics UPF Test Machine Textiles UV Protection Tester Garment Clothing UV Transmittance Sun Blocking Analyzer

Technical Specifications

Measuring range	Transmittance: 0-100%±0.01%, UPF:0-100+ (Resolution ±0.01)
Wavelength range	280～400nm±0.5nm
Wavelength repeatability	0.25nm
Data interval	≤0.3nm
Slit width	≤0.3nm
Sample beam diameter	10mm
Overall dimension	310×480×300mm
Weight	30kg
Power supply	AC220V 50Hz
