Product Details:
|
Model: | LVDV-1 LVDV-2 | Measuring Range: | 0.6 - 2,000,000 MPa.s / 0.3 - 6,000,000 MPa.s |
---|---|---|---|
Power Supply: | 110V/60Hz Or 220V/50Hz | Speed Range: | 0.3 - 100 RPM (LVDV-1) / 0.1-200 RPM (LVDV-2) |
Sample Volume: | 1-4 Rotor: 300-400ml; 18,25,31,34 Rotor: 7-11ml; ULR: 21ml | Measurement Error: | ±1% (Newtonian Liquid) |
Repetitive Error: | ±0.5% (Newtonian Liquid) | Temperature Range: | -20 To 300℃ |
Temperature Accuracy: | 0.1℃ | Display Type: | Liquid Crystal Display |
Shear Rate Display: | Standard Configuration | Timed Function: | Standard Configuration |
Data Output: | Two USB Interfaces | Dimensions: | 300 × 300 × 450 Mm |
Viscosity Unit: | Pa.s, MPa.s, P, CP | ||
Highlight: | digital viscosity meter,low viscosity viscometer,fluid viscosity tester |

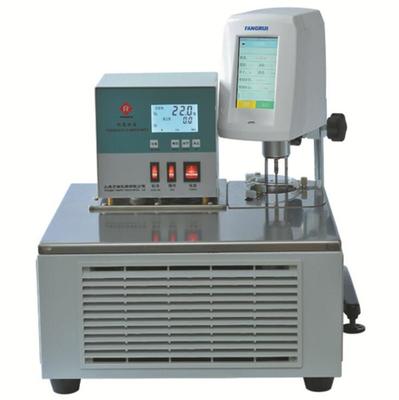

The LVDV-1 and LVDV-2 series digital viscometers provide accurate viscosity measurement for fluids across a wide range of industries. These instruments offer comparable performance to imported viscometers with advanced features for professional laboratory and industrial applications.
These viscometers are widely used in paints, coatings, cosmetics, inks, food products, petroleum products, adhesives, biochemical products, and more. Optional high-temperature furnace accessories enable measurement of heated samples like asphalt, hot melt glue, and polyethylene wax.
Parameter | LVDV-1 | LVDV-2 |
---|---|---|
Display | LCD | |
Speed (r/min) | 0.3-100 (37 RPM) | 0.1-200 (58 RPM) |
Measuring Range (mPa·s) | 0.6-2,000,000 | 0.3-6,000,000 |
Sample Volume |
1-4 Rotor: 300-400ml 18,25,31,34 Rotor: 7-11ml ULR: 21ml |
|
Measurement Error | ±1% (Newtonian liquid) | |
Repeatability | ±0.5% (Newtonian liquid) | |
Shear Rate/Stress Display | Standard | |
Timed Function | Standard | |
Temperature Measurement | Standard interface (probe optional) | |
Automatic Scanning | Recommends optimal rotor/speed combination | |

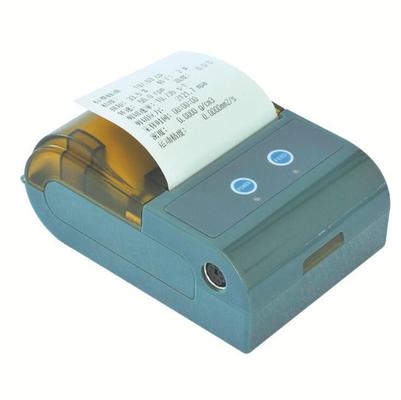

Print Function | Data and curve printing (printer optional) | |
Data Output | Dual USB interfaces (printer and computer) | |
Power Supply | 110V/60Hz or 220V/50Hz | |
Dimensions (mm) | 300 × 300 × 450 |
