BN 108 GME 60401 Abrasion Resistance Tester 220V 95 Kg

Large Image : BN 108 GME 60401 Abrasion Resistance Tester 220V 95 Kg

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

BN 108 GME 60401 Abrasion Resistance Tester 220V 95 Kg

Description

Voltage:	220V	Test Speed:	10 - 200 Mm/s
Dimensions:	950mm * 550mm * 650mm	Weight:	95 Kg
Speed Buffer:	10 +/- 1 Mm	Protection Class:	Ip56
Test Mode:	Automatic	Executive Routine:	25mm / 40mm / 45mm;Index: 10 - 200mm
Scratch Count:	Adjustable	Scratch Head Size:	Can Be Freely Interchanged
Scratch Head Elevation:	Pneumatic	Control Panel:	Intelligent Touch Screen
Function:	Five-finger Method / Hundred-grid Method	Power Supply:	220V/50HZ
Highlight:	abrasion resistance tester 220V , textile testing machine 95 kg , GME 60401 abrasion tester

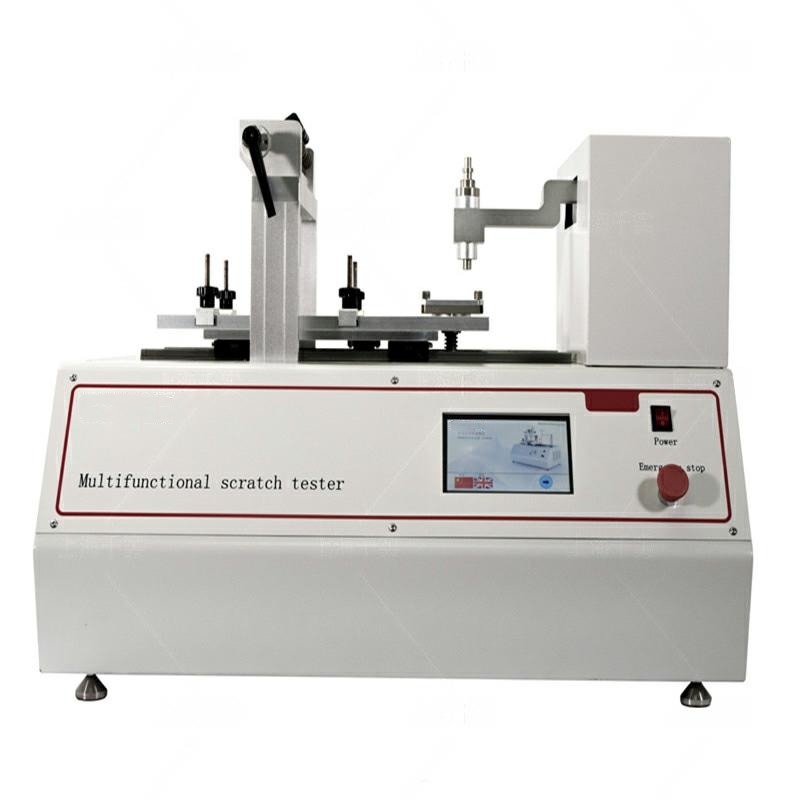

BN 108 GME 60401 Multifunctional Abrasion Resistance Tester

NES M N0159 Scratch Resistance Test Equipment

The Multifunctional Abrasion Resistance Tester integrates three common automotive industry testing methods: five finger scraping, hundred-grid scraping, and plastic scraping finger scraping. This comprehensive instrument evaluates surface properties of various materials including plastics, rubbers, leathers, fabrics, coatings, and soft metals.

Key Features

Tests abrasion resistance of automotive interior materials
Provides reliable, repeatable experimental data for quality control
Three integrated testing methods in one instrument
Suitable for diverse material types including composites and coatings
Helps manufacturers verify product performance specifications

Compliant Standards

PV 3952 Plastic Interior Components Scratch Resistance Test
Ford BN 108-03, 13 Abrasion Resistance Test
BMW 0180 PA-P 028 Abrasion Resistance Test (Scraping Method)
BMW GS 97034-9, PA 0015 Abrasion Resistance Test
DAF KEUR 00824-401 Abrasion Resistance Test (Scraping Method)
DAF KEUR 00824-402 Abrasion Resistance Test
GME 60401 Abrasion Resistance Test (Scraping Method)
GM 14829 Abrasion Resistance Test (Scraping Method)
Jaguar-Landrover TPJLR.52.004 Abrasion Resistance Test
GM N 3943 Plastic Abrasion and Scratch Resistance Test - Five-Finger Test
LP 463DD-18-01 Scratch and Abrasion Resistance Test - Five-Finger Test
GMW14130.14688 Abrasion Resistance Test
83502SDA-9000 Scratch Test
NES M N0159 Polypropylene Interior Components Scratch Test

Technical Specifications

Parameter	Specification
Test mode	Automatic
Test speed	10 - 200 mm/s
Executive routine	25mm / 40mm / 45mm; Index: 10 - 200mm
Scratch count	Adjustable
Scratch head size	Freely interchangeable
Weight	95 Kg
Scratch head elevation	Pneumatic
Control panel	Intelligent touch screen
Function	Five-finger method / Hundred-grid method
Speed buffer	10 +/- 1 mm
Overall dimensions	950mm * 550mm * 650mm
Power Supply	220V/50HZ
