Manual Friction Color Fading Tester 220V 1kg for Textile Testing

Large Image : Manual Friction Color Fading Tester 220V 1kg for Textile Testing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Manual Friction Color Fading Tester 220V 1kg for Textile Testing

Description

Voltage:	220V	Product Weight:	1 Kg
Packaging Weight:	2 Kg	Dimensions:	127 Mm × 83 Mm × 178 Mm
Number Of Workstations:	1	Protection Class:	IP56
Material Of Key Components:	Stainless Steel	Friction Tips:	15mm Organic Glass
Sample Cutting Requirement (AATCC):	50mm × 50mm Right-angled Squares	Sample Cutting Requirement (ISO):	50mm × 50mm Decorative Square Grids
Friction Finger Size:	15mm	Load Control:	Calibrated Weights
Detection Travel Control:	Narrow Slot At Bottom	Sample Position Control:	Serrated Edge
Friction Head Customization:	Available
Highlight:	Manual textile friction tester 220V , Color fading tester for textiles , 1kg textile testing machine

ISO 874 AATCC 165 Manual Friction Color Fading Tester

Portable Manual Color Fade Test Machine Compliant with JIS L 1084 & Ford BN 107 Standards

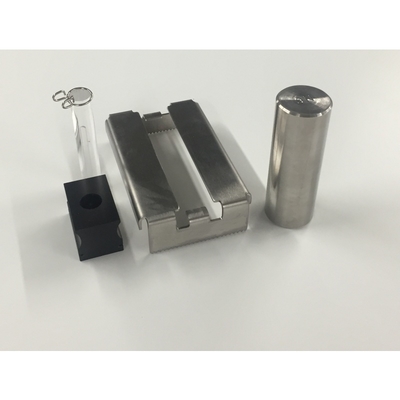

The manual friction color fading tester is a lightweight, portable solution for standard friction fading tests. It precisely measures color transfer from materials like fabrics and plastics to other surfaces, featuring key specifications for finger size, friction force, and stroke.

Key Features

Portable design with precise friction testing capabilities
Acrylic friction finger with anti-rotation key for consistent testing
Replaceable friction tips (15mm standard, customizable options available)
Allows testing on bolt/hidden areas without sample cutting
Controlled detection travel via bottom slot mechanism
Calibrated weights for accurate load control
Serrated edge for secure sample positioning
Includes toolbox with deionized water and testing cloths

Compliant with Standards: ISO 874, AATCC Method 8, AATCC Method 165, JIS L 1084, Ford BN 107-01, CFFA-7, ASTM D5053, JIS L 0849

Technical Specifications

Specification	Value
Product Weight	3 lbs / 1 kg
Packaging Weight	5 lbs / 2 kg
Dimensions	5" × 3.3" × 7" (127 mm × 83 mm × 178 mm)
Workstations	1
Key Component Material	Stainless steel (main body and weights)

Testing Requirements

AATCC Friction Fading Tester: 2 × 2" (50mm × 50mm) right-angled square samples (AATCC 1 compliant)
ISO Friction and Fade Tester: 2 × 2" (50mm × 50mm) decorative square grid samples (ISO 874 compliant)
