ASTM D4970 ISO 12945 Wear Tester 220V 9 Workstations Textile Testing Machine

Large Image : ASTM D4970 ISO 12945 Wear Tester 220V 9 Workstations Textile Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D4970 ISO 12945 Wear Tester 220V 9 Workstations Textile Testing Machine

Description

Voltage:	220V	Protection Class:	IP56
Counting Range:	0 - 999,999 Times	Number Of Workstations:	9
Maximum Stroke:	60.5 ± 0.5 Mm (lateral); 24 ± 0.5 Mm (longitudinal)	Gripper Weight:	200 ± 1 G
Fabric Sample Weight:	395 ± 2 Grams	Furniture Sample Weight:	594 ± 2 Grams
Stainless Steel Plate:	260 ± 1 G	Friction Head Type A:	200g (1.96N), 28.8 - 0.084mm
Friction Head Type B:	155g (1.52N), 90° - 0.10mm	Movement Speed:	20 - 70 R/min
Pressing Hammer Weight:	2385 ± 10 Grams	Cycle Rate:	47.5 ± 2.5 CPM
Friction Diameter:	Type A: 9KPa, Type B: 12KPa
Highlight:	ASTM D4970 textile wear tester , ISO 12945 textile testing machine , 220V 9 workstations fabric tester

ASTM D4970 ISO 12945 Wear Tester for Leather, Belts, Gloves, Socks and Materials

This wear test machine performs standardized wear resistance testing on various materials including woven and knitted fabrics, non-woven materials, leather products, belts, gloves, socks, laminated boards, and painted surfaces. The equipment features automatic cycle counting with programmable test parameters and operates at 120V.

Key Features

Conforms to multiple international testing standards
9 independent workstations for efficient testing
Programmable touchscreen controls with batch processing
Four selectable speed settings including standard speed
Automatic cycle counting up to 999,999 repetitions
Precision pressure application with calibrated weights

Compliant Standards

ASTM D4970, D4966

ISO 12945.2, 12947, 2034

GB/T 4802.2, 13775, 21196.1/2

FZ/T 20020, BS 3424-24/5690

ISO 5470-2, IWTO-40

JIS L1096 8.17.5 Method E

Woolmark TM 112/196

BS EN 388/530/13770

M&S P17/P19/P19C

NEXT 18/18a/18b

Technical Specifications

Parameter	Specification
Number of Workstations	9
Counting Range	0 - 999,999 cycles
Maximum Stroke	60.5 ± 0.5 mm (lateral) 24 ± 0.5 mm (longitudinal)
Pressure Weights	- Gripper: 200 ± 1 g - Fabric sample: 395 ± 2 g - Furniture samples: 594 ± 2 g - Stainless steel plate: 260 ± 1 g
Friction Head Specifications	- Type A: 200g (1.96N), 28.8mm ID - Type B: 155g (1.52N), 90° configuration
Speed Range	20 - 70 r/min (adjustable)
Sample Press Weight	2385 ± 10 grams

Product Images

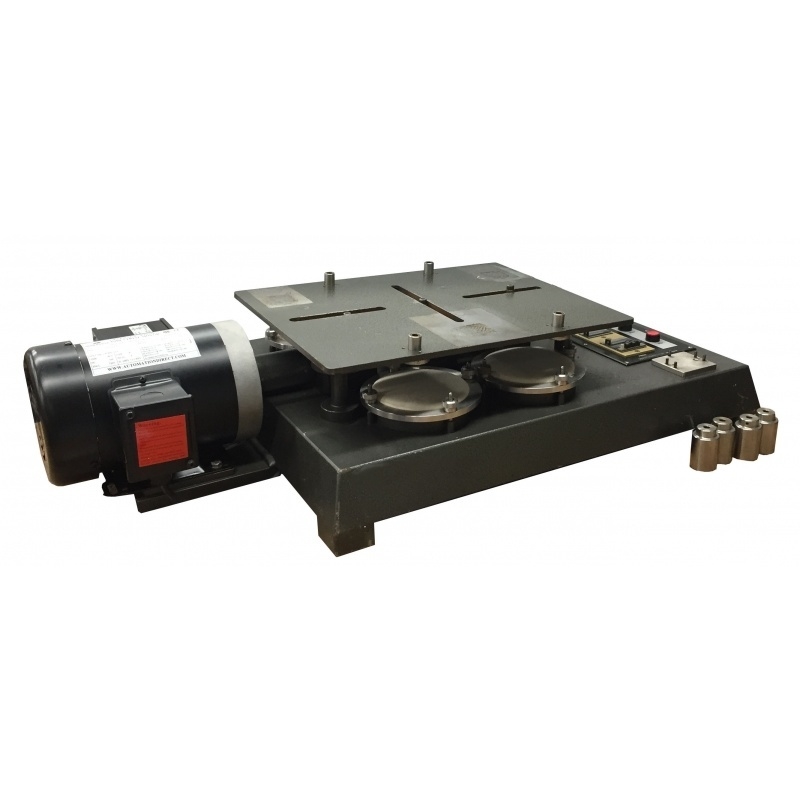

Wear tester with multiple workstations

Close-up of control interface and test area
