DIN 72551 ISO 6722 Wire Wear Resistance Tester 1500mm/min Belt Speed

Large Image : DIN 72551 ISO 6722 Wire Wear Resistance Tester 1500mm/min Belt Speed

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DIN 72551 ISO 6722 Wire Wear Resistance Tester 1500mm/min Belt Speed

Description

Voltage:	220V	Belt Grinding Speed:	1500mm/min
Test Voltage:	24V	Load Options:	20g / 50g / 100g / 200g (2 PCS) / 500g / 900g / 1000g
Power:	200VA / 220V / 50Hz	Wire Diameter:	Less Than 15mm
Sanding Belt Length:	0 - 999999 Mm	Belt Support Corners:	3.5mm
Load Support Weight:	65g (0.63N ± 0.05N)	Belt-sample Angle:	29°
Conductive Strip Gap:	75mm Or 150mm	Conductive Strip Width:	10mm
Abrasive Belt Grits:	80#, 150#, 180#, 400#	Protection Class:	IP56
Power Supply:	200VA / 220V / 50Hz
Highlight:	DIN 72551 wire wear tester , ISO 6722 belt speed tester , textile testing machine 1500mm/min

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine

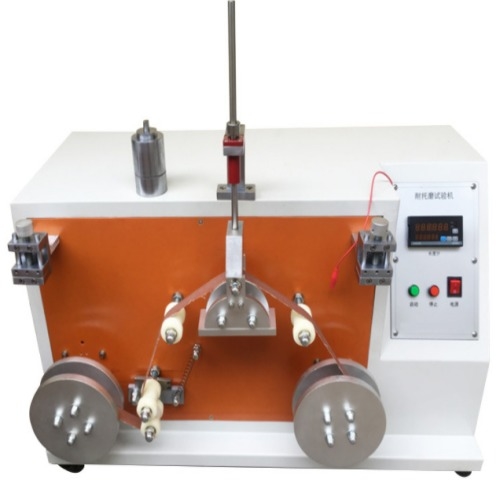

Wire Wear Resistance Tester

This testing machine evaluates the wear resistance of automotive wire insulation sheaths under controlled conditions, ensuring compliance with international industry standards.

Key Features

Tests wear resistance of automotive wire insulation
Measures abrasion under various load conditions
Adjustable parameters for comprehensive testing
Multiple abrasive belt grit options available
Precise measurement of sanding belt length

Applicable Standards

QC/T730-2005, SAE-J 1128-2005, DIN 72551, ISO6722, JASO D 618

Technical Specifications

Parameter	Specification
Applicable wire diameter	Less than 15mm
Sanding belt length measurement range	0 - 999999 mm
Belt grinding speed	1500mm/min
Rounded corners of the sanding belt support	3.5mm
Test voltage	24V
Load options	20g / 50g / 100g / 200g (2 PCS) / 500g / 900g / 1000g
Weight of the load support	65g (0.63N ± 0.05N)
Angle between abrasive belt and sample	29°
Gap between conductive strips	75mm or 150mm
Width of the conductive strip	10mm
Power	200VA / 220V / 50Hz

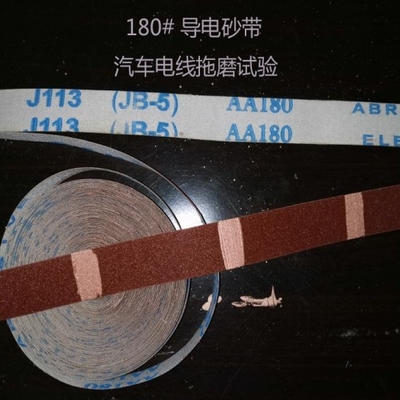

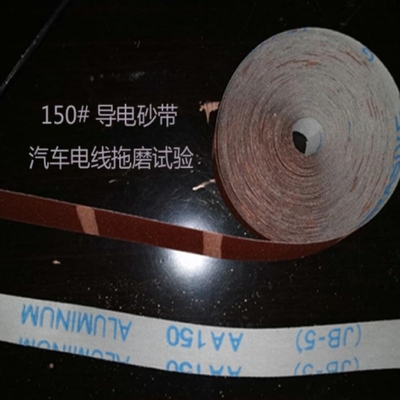

Available abrasive belt grits	80#, 150#, 180# and 400# (selectable)

Product Images
