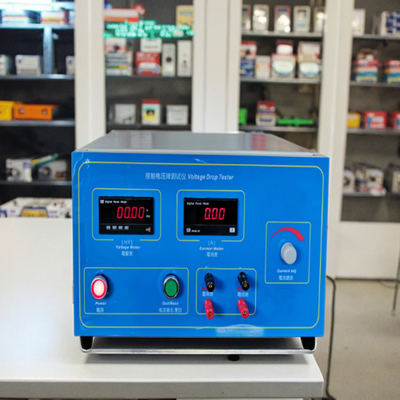

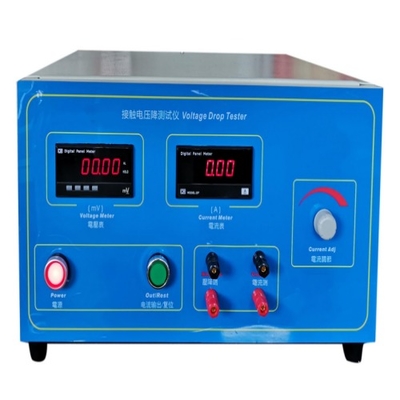

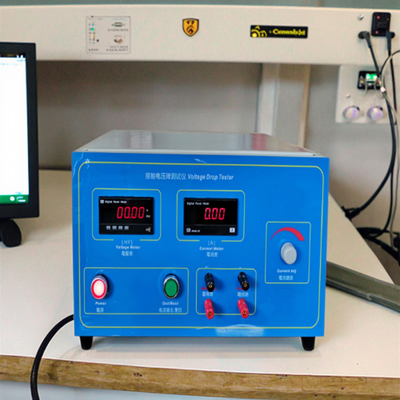

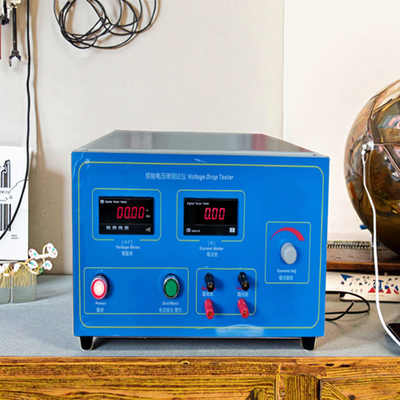

ISO 8092 Automotive Wire Connector Voltage Drop Tester 3200W 220V

Large Image : ISO 8092 Automotive Wire Connector Voltage Drop Tester 3200W 220V

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 8092 Automotive Wire Connector Voltage Drop Tester 3200W 220V

Description

Power:	3200W	Voltage:	220V
Protection Class:	IP56	Power Supply:	AC 220V ± 10%, 50Hz
Maximum Output Voltage:	32V	Current Output Mode:	Constant Current
Working DC Current:	0 - 100A (Optional: 5A, 10A, 20A, 50A, 100A, 200A, 500A, 1000A)	Voltage Drop Range:	0 - 20V
Voltmeter Ranges:	0 - 200mV / 0 - 2V / 0 - 20V	Display Ranges:	0.01 - 199.99mV / 0.1 - 1999.9mV / 1 - 19999mV
Input Voltage:	AC 220V ± 10%, 50Hz	Current Adjustability:	Adjustable At Will
Standards Compliance:	ISO 8092.1~.4, QC/T417.1~417.5-2001	Testing Capability:	Micro-voltage Testing
Display Type:	Digital Tube Display
Highlight:	ISO 8092 automotive wire connector tester , automotive voltage drop tester 3200W , 220V wire connector voltage tester

ISO 8092 Automotive Wire Connector Voltage Drop Tester

High Quality Vehicle Wiring Connector Voltage Drop Test Equipment

The automotive wire connector voltage drop tester is designed for measuring voltage drops in non-reconnectable plug pins, connection plug lead-out wires, and similar wiring interfaces. This enables accurate quality assessment of wiring connections and can also function as a contact voltage drop tester for connectors and wire harness terminals.

Product Features

Adjustable high current output for versatile testing applications
Precision micro-voltage testing capability
Clear digital tube display for easy readings
Compliant with ISO 8092.1~.4 series standards
Meets QC/T417.1~417.5-2001 standards for automotive wiring harness connectors

Technical Specifications

Input Voltage	AC 220V ± 10%, 50Hz
Working DC Current	0 - 100A (Optional specifications: 5A, 10A, 20A, 50A, 100A, 200A, 500A, 1000A), fully adjustable
Current Output Mode	Constant current
Voltage Drop Range	0 - 20V (Equipped with three precision voltmeters: 0 - 200mV / 0 - 2V / 0 - 20V)
Display Ranges	0.01 - 199.99mV / 0.1 - 1999.9mV / 1 - 19999mV
Power	3200W
Maximum Output Voltage	32V
