DIN 72551 Automotive Wire Bending Test Machine 220V 200W Servo Motor

Large Image : DIN 72551 Automotive Wire Bending Test Machine 220V 200W Servo Motor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DIN 72551 Automotive Wire Bending Test Machine 220V 200W Servo Motor

Description

Voltage:	220V	Power Supply:	220V/50Hz
Motor:	200W Servo Motor	Bending Cycle:	3 Seconds
Number Of Bends:	300 Times	Sample Length:	200mm
Clamping Length:	128mm	Bending Angle Min:	30 Degrees
Bending Angle Max:	135 Degrees	Equipment Material:	Stainless Steel
Controller:	Touchscreen + PLC	Protection Class:	IP56
Counter Digits:	4 Digits	Motor Type:	Servo Motor
Motor Power:	200W
Highlight:	DIN 72551 wire bending tester , automotive wire test machine 220V , servo motor wire bending tester

DIN 72551 Automotive Wires Dynamic Bending Test Machine

Wire Voltage Resistance Performance Testing Instrument

The dynamic bending test machine for automotive wires evaluates wire integrity and voltage resistance performance under low-temperature dynamic conditions. This testing instrument must be used with a -40℃ low-temperature chamber for accurate assessment.

Test Standard

Complies with DIN72551-5-1991 and related standards

Technical Specifications

Parameter	Specification
Sample Dimensions	Length: 200mm; Clamping length: 128mm
Dynamic Bending Angle	30° (minimum) to 135° (maximum)
Number of Bends	300 cycles (4-digit counter)
Bending Cycle	3 seconds
Equipment Material	Stainless steel
Motor	200W servo motor
Controller	Touchscreen + PLC
Power Supply	220V/50Hz

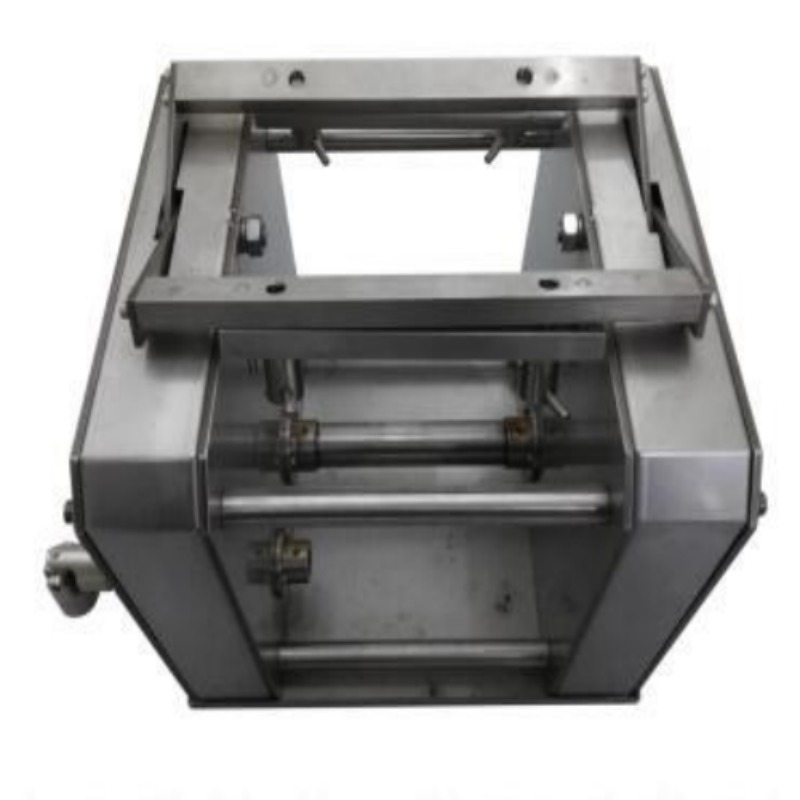

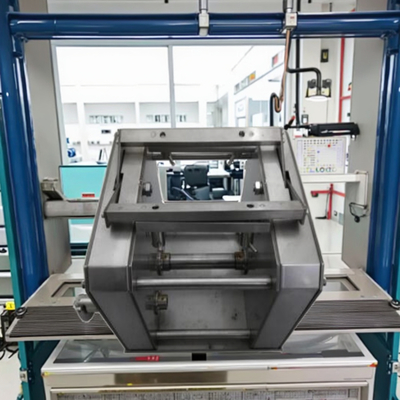

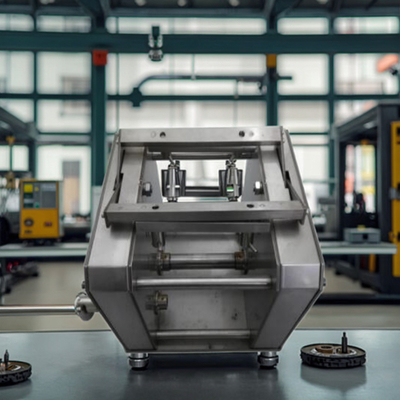

Product Images

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
