Automotive Wires Flammability Tester 220V with 100mm Flame Size

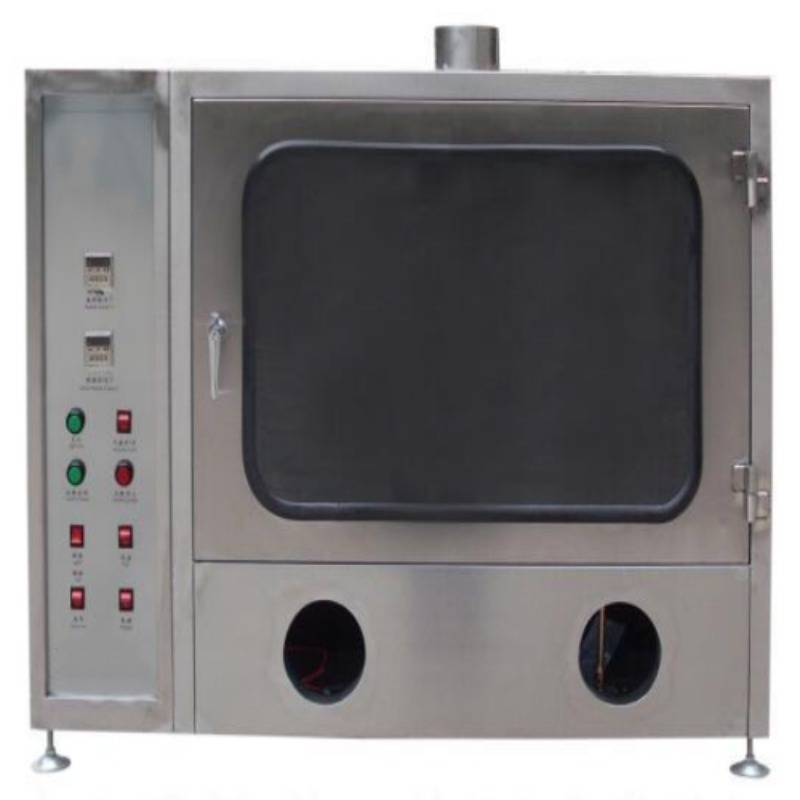

Large Image : Automotive Wires Flammability Tester 220V with 100mm Flame Size

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Automotive Wires Flammability Tester 220V with 100mm Flame Size

Description

Voltage:	220V	Protection Class:	Ip56
Flame Size:	Outer Flame 100mm, Inner Flame 50mm	Inner Flame Temperature:	900 ± 50 Degrees
Combustion Duration:	15 Seconds	Chamber Dimensions:	305355610mm
Test Chamber Dimensions:	650×450×900mm	Test Chamber Material:	Stainless Steel
Test Chamber Background:	Matte Black	Combustion Gas Source:	High-purity Propane Gas Or Liquefied Petroleum Gas
Tested Cable Length:	600mm	Sample Clamping Angle:	45 Degrees
Bunsen Burner Diameter:	9mm	Temperature Measurement:	K-type Thermocouple, TES-1310 Thermometer
JIS3005 Sample Length:	300mm
Highlight:	Automotive wires flammability tester 220V , Textile flammability tester 100mm flame , Flammability tester with warranty

ISO 672 DIN 72551 Automobile Wiring Combustion Testing Machine JIS 3005 SAE J1128 Automotive Wires Flammability Tester

This professional testing machine evaluates the flammability characteristics of automotive wiring according to multiple international standards.

Applicable Standards

QC/T703-2005
SAE-J 1128-2005
DIN 72551
ISO 672

Technical Specifications

Component	Specifications
Test chamber	Sealing: Sealed structure Dimensions: 650×450×900mm Material: Stainless steel Background: Matte black
Combustion gas source	High-purity propane gas or liquefied petroleum gas
Tested electrical cable	Length: 600mm (24 inches) Sample clamping angle: 45 degrees
Bunsen burner	Nominal tube diameter: 9mm Flame size: Outer flame 100mm (4 inches), inner flame 50mm (1/2 inch) Inner flame temperature: At least 900 ± 50 degrees
Burner placement	Bunsen burner and blowtorch are placed below the sample, perpendicular to the sample axis
Ignition & combustion duration (standard mode)	Ignition: Automatic ignition Combustion duration: 15 seconds
Temperature measurement configuration	Equipped with high-precision K-type thermocouple and imported TES-1310 thermometer
Exhaust system	Equipped with an exhaust system; exhaust gas is discharged through the exhaust fan after the test

JIS3005 Horizontal Combustion Configuration (Additional)

Component	Specifications
Fixture	JIS3005 horizontal combustion test fixture
Burner	Horizontal combustion burner
Chamber dimensions	305×355×610mm

JIS3005 Horizontal Combustion Test Parameters

Sample length: 300mm
Sample placement angle: Horizontal
Combustion time: 30 seconds
Spirit lamp specs: Diameter 10mm; inner flame length approx. 35mm; outer flame length 130mm

Shutdown Method

Triggers when the preset data is reached
