ISO 6722 Automotive Wire Ozone Aging Chamber 400x500x500mm 3.5KW

Large Image : ISO 6722 Automotive Wire Ozone Aging Chamber 400x500x500mm 3.5KW

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 6722 Automotive Wire Ozone Aging Chamber 400x500x500mm 3.5KW

Description

Voltage:	380V	Power Supply:	380V / 50HZ
Studio Size:	400 Mm × 500 Mm × 500 Mm	Temperature Uniformity:	±2℃
Temperature Fluctuation:	±0.5℃	Temperature Deviation:	±2℃
Ozone Concentration Range:	10 Ppmh To 1000 Ppmh	Ozone Concentration Deviation:	≤ 10%
Material Rack Speed:	2R/min (adjustable)	Operating Power:	3.5KW
Protection Class:	IP56	Temperature Control:	±2℃
Ozone Reading:	Direct Reading	Power Frequency:	50HZ
Material Rack Adjustable:	Yes
Highlight:	ISO 6722 automotive wire testing chamber , ozone aging chamber 400x500x500mm , automotive wire test machine 3.5KW

ISO 6722 SAE J1128 Automotive Electrical Wire Ozone Aging Test Chamber

JASO D611 Vehicle Wire Ozone Aging Chamber

The automotive wire ozone aging chamber is designed to test the ozone aging resistance of rubber and its products, ensuring compliance with international automotive standards.

Key Features

Tests ozone aging resistance of automotive wires and rubber products
Complies with multiple international standards
Precise temperature and ozone concentration control
Adjustable material rack rotation speed

Applicable Standards

ISO 6722
SAE J1128
QCT 730
JASO D611

Technical Specifications

Parameter	Specification
Temperature Uniformity	±2℃
Temperature Fluctuation	±0.5℃
Temperature Deviation	±2℃
Ozone Concentration	Range: 10 ppmh to 1000 ppmh; Features: Direct reading, deviation ≤ 10%
Material Rack Rotation Speed	2R/min (adjustable)
Studio Size	400 mm × 500 mm × 500 mm
Power Supply	380V / 50HZ
Experimental Box Operating Power	3.5KW

Product Images

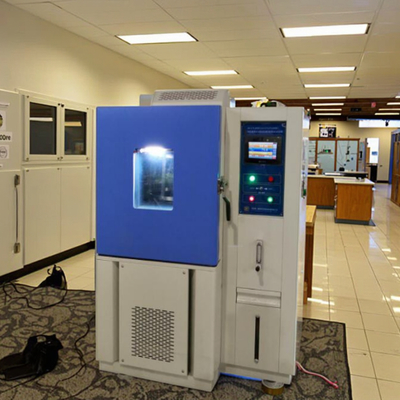

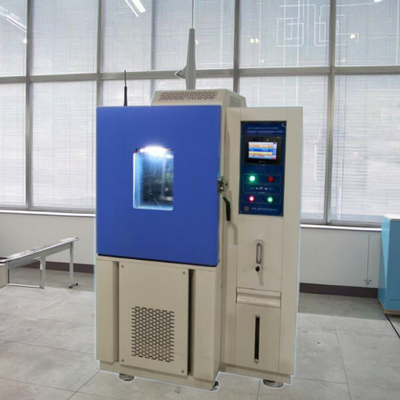

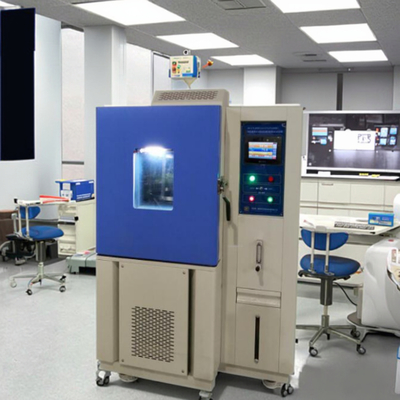

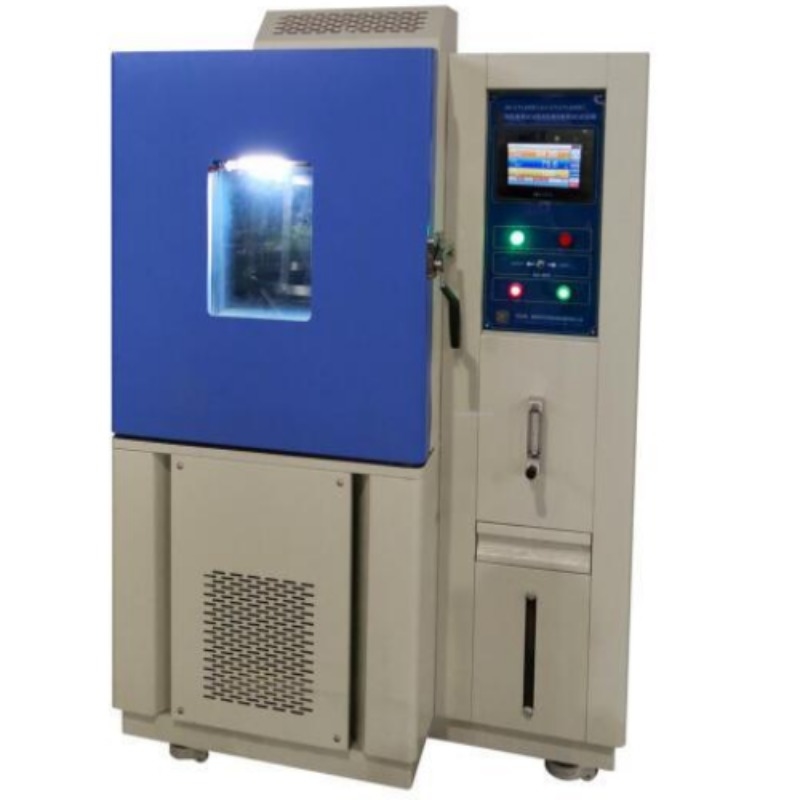

ISO 6722 SAE J1128 Automotive Electrical Wire Ozone Aging Test Chamber

Close-up view of chamber controls

Interior chamber view

Side view of testing chamber

Complete chamber setup
