IEC 60702 Cable Compression Testing Machine 220V 30KNN Capacity

Large Image : IEC 60702 Cable Compression Testing Machine 220V 30KNN Capacity

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

IEC 60702 Cable Compression Testing Machine 220V 30KNN Capacity

Description

Voltage:	220V	Power Supply:	AC 220V ± 10%, 50Hz, 5A
Volume:	80cm × 40cm × 150cm	Displacement Resolution:	0.01mm
Effective Measurement Range:	0.5 - 30KNN	Lowering Speed:	10mm ± 1mm Per Minute
Displacement Speed:	1 - 200mm Per Minute	Pressure Range:	0 - 5000 Kgf
Maximum Protection Pressure:	3000 Kgf	Load Accuracy:	±1% Of The Indicated Value
Travel Range:	0 - 300mm	Plate Specification:	50mm × 150mm, Rounded Corner R10mm
Compression Rod Diameter:	20mm	Protection Class:	IP56
Power System:	Servo Motor
Highlight:	IEC 60702 cable testing machine , 30KNN capacity compression tester , 220V textile testing equipment

IEC 60702 High Quality Cable Compression Testing Machine

This electrical cable extrusion laboratory testing instrument is designed for compression tests specified in GB/T 33594 Electric Vehicle Charging Cables standards. It automatically records compression force resistance and can be adapted for flattening tests on various cable types.

Key Features

Automatically records cable compression force resistance
Adaptable for flattening tests on cables with diameter less than 25mm
Compatible with rated voltages of 500V and 750V copper core cables
Computer-controlled operation with included testing software
Comprehensive safety protection features

Compliance Standards

GB/T 33594-2017, GB/T 13033.1-2007, IEC 60702-1:2002

Technical Specifications

Speed Parameters	- Lowering speed: 10mm ± 1mm per minute - Displacement speed adjustment range: 1 - 200mm per minute
Pressure & Load Parameters	- Pressure range: 0 - 5000 kgf (Maximum protection pressure: 3000 kgf) - Effective measurement range: 0.5 - 30KNN - Unit conversion: kgf, N, Lbf - Load accuracy: ±1% of the indicated value
Accuracy & Travel	- Accuracy grade: 1st grade - Travel range: 0 - 300mm - Displacement resolution: 0.01mm
Control & Display	- Display: Computer - Speed input method: Software setting - Includes: 1 set of computer and printer (with testing software)
Safety & Protection	- Automatic shutdown function - Limiting protection safety device - Overload protection activates at 10% above maximum capacity
Power & Drive System	- Power system: Servo motor - Power supply: AC 220V ± 10%, 50Hz, 5A
Structural Components	- Plate specification: 50mm × 150mm, rounded corner R10mm - Diameter of compression rod: 20mm
Machine Dimensions	80cm × 40cm × 150cm

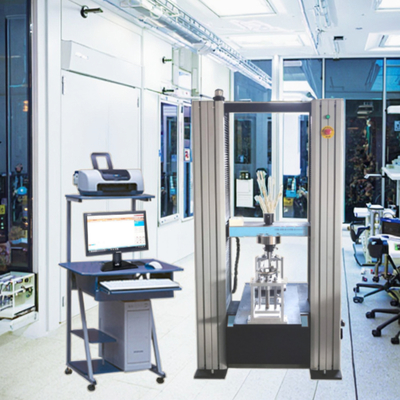

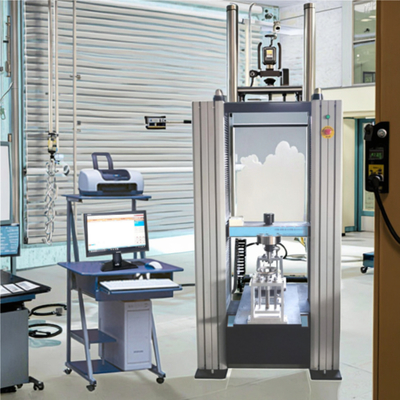

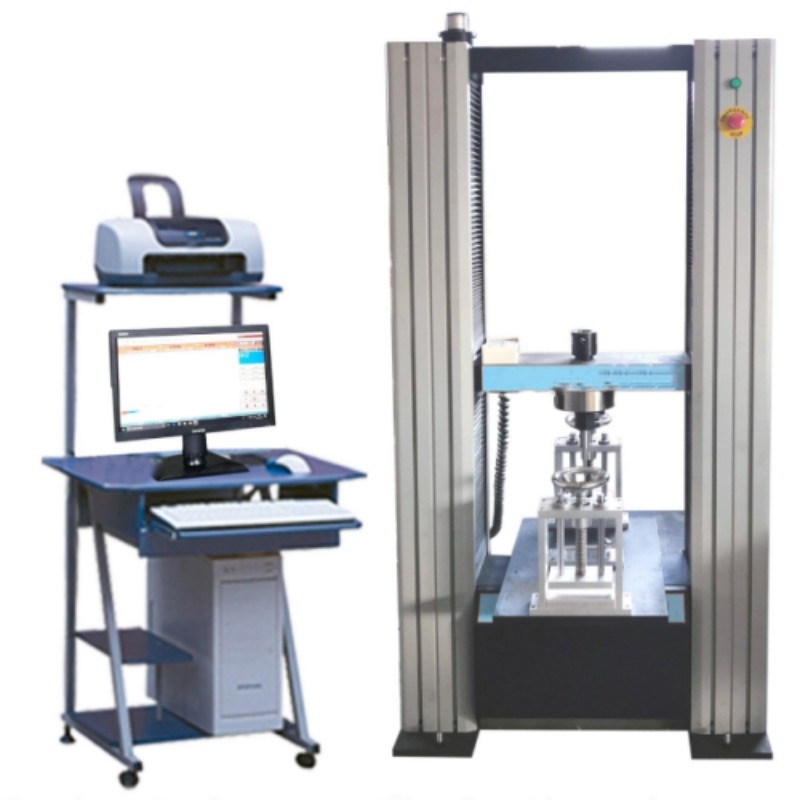

Product Images

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
