JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity

JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity
JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity

Large Image :  JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity

Description
Voltage: 220V Protection Class: IP56
Counting: 4-digit Counter Number Of Trials: 4 Times
Weights: 500g, 750g, 1000g, 1250g Sample Rotation Angle: 90°
Grinding Device Movement: Moves In Both Directions Along The Wire Axis; Travel Distance: More Than 10mm Exercise Frequency: 50 To 60 Cycles Per Minute
Test Point Distance: Greater Than 10mm Sample Length: Approximately 750mm
Fixing Method: Firmly Fixed On A Steel Anvil Auto-shutdown: Triggers When Scraping Needle Penetrates Insulation
Applicable Standards: JB/T 8139-1999, JIS C 3046, JASO D 611 Travel Distance: More Than 10mm
Scraping Needle Weights: 500g, 750g, 1000g, 1250g
Highlight:

JIS C3046 wire abrasion tester

,

JASO D611 cable tester 220V

,

textile testing machine 4-trial capacity

JIS C3046 JASO D611 Road Vehicles Low Voltage Wire Cable Abrasion Resistance Wear Testing Machine
This abrasion resistance testing machine is designed to evaluate the wear characteristics of automotive wire insulation by scraping its surface, ensuring compliance with industry standards for vehicle wire durability.
Key Features
  • Evaluates abrasion resistance of automotive wire insulation
  • Complies with JB/T 8139-1999, JIS C 3046, and JASO D 611 standards
  • Automatic shutdown when conductor contact is detected
  • Multiple weight options for comprehensive testing
Technical Specifications
Feature Specification
Grinding Device Movement Bi-directional along wire axis; travel distance >10mm
Exercise Frequency 50-60 cycles per minute
Counting 4-digit counter
Number of Trials 4 times
Test Point & Sample Rotation Minimum distance between test points >10mm; rotation angle 90°
Sample Requirements Length ~750mm; fixed on steel anvil
Weights (for Scraping Needle) 500g, 750g, 1000g, 1250g
Product Images

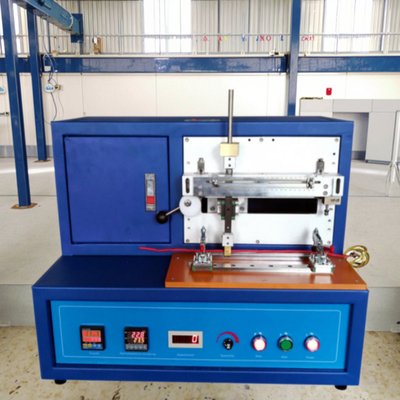

JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity 0

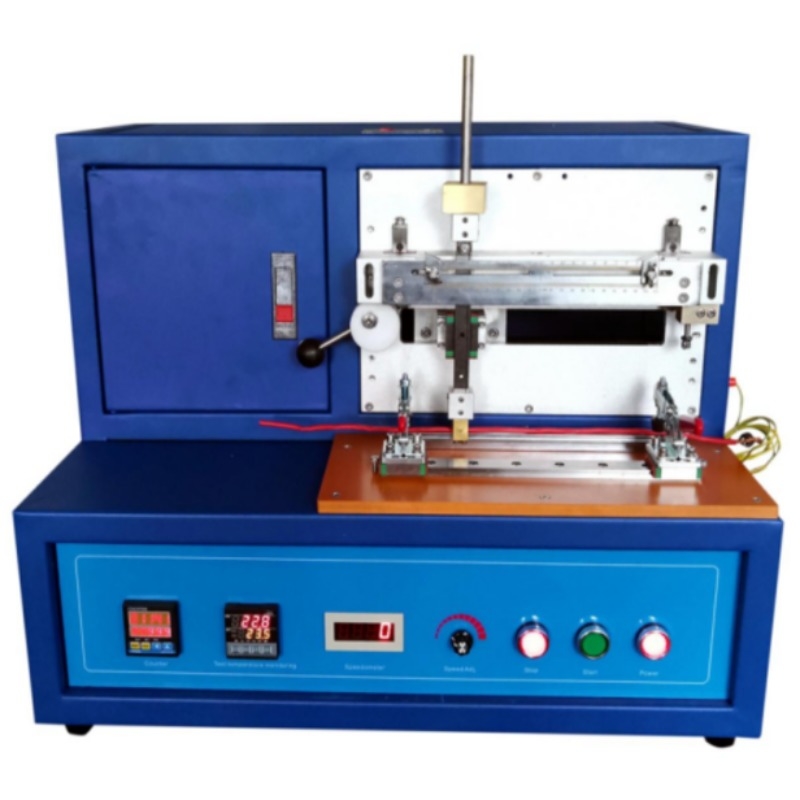

JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity 1

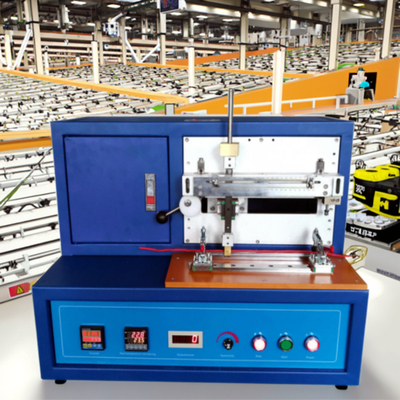

JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity 2
JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity 3
JIS C3046 JASO D611 Wire Cable Abrasion Tester 220V 4-Trial Capacity 4
