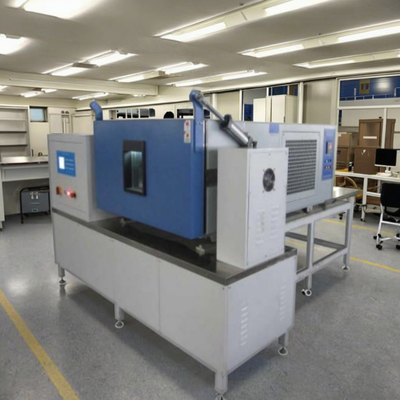

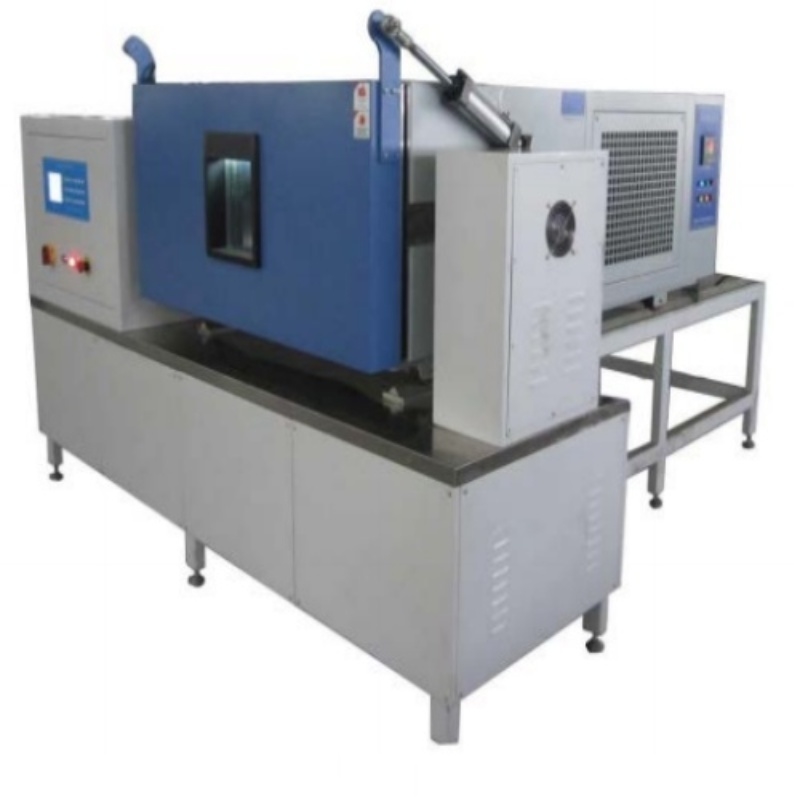

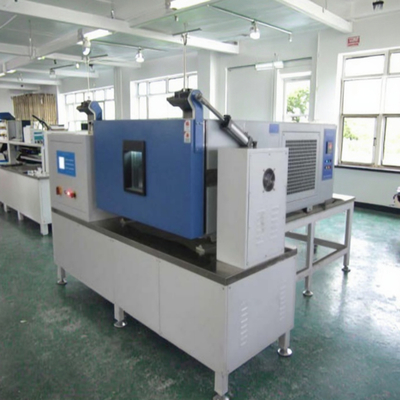

Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement

Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement
Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement

Large Image :  Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement

Description
Voltage: 220V Protection Class: Ip56
Force Resolution: 0.01 KN Force Value Accuracy: ±1% FS
Maximum Stretching Displacement: 550mm, 600mm Speed: 0.3mm - 50mm/min
Number Of Workstations: 1 Workstation, 3 Workstations Model: Horizontal Type, Vertical Type
Loading Method: Electronic Type, Mechanical Type Measuring Range: 0 - 50 KN, 0 - 20 KN
Displacement Accuracy: 0.03mm, 0.02mm Temperature Control: -30 To 70℃; Customizable
Force Range: 0 - 50 KN, 0 - 20 KN Displacement Range: 550mm, 600mm
Speed Range: 0.3mm - 50mm/min
Highlight:

Geosynthetic material creep tester 50kN

,

Textile testing machine 600mm displacement

,

Creep test system with warranty

ISO 13431 ASTM D5262 Geosynthetic Material Creep Test System
Product Description
The geosynthetic material creep test system measures the tensile creep performance of geosynthetic materials, providing accurate and reliable data for quality assessment and research purposes.
Compliant Standards
GB/T 17637-1998, ISO 13431-2024, ASTM D 5262-2007, JTG E50 T1131-2006, QB/T 2854-2007
System Characteristics
  • Simple structure with attractive appearance and stable performance
  • Microcomputer-controlled with LCD display and touchscreen operation
  • Electronic loading system for stable and precise sample load
  • High-speed data acquisition with real-time collection and transmission
  • High-precision sensors with rapid response and good repeatability
  • Special fixture accessories prevent sample slippage and damage
  • Customizable workstations for simultaneous multiple sample testing
  • High-precision temperature control equipment with excellent uniformity
  • Large-diameter pneumatic cylinders for convenient normal pressure loading
  • Portable normal loading system eliminates machine system errors
  • Local displacement measurement for real-time elongation monitoring
  • Easy installation and operation with long service life
Technical Specifications
Parameter Specification
Number of Workstations 1 workstation, 3 workstations
Model Horizontal type, Vertical type
Loading Method Electronic type, Mechanical type
Measuring Range 0 - 50 kN, 0 - 20 kN
Force Resolution 0.01 kN
Force Value Accuracy ±1% FS
Maximum Stretching Displacement 550mm, 600mm
Displacement Accuracy 0.03mm, 0.02mm
Speed 0.3mm - 50mm/min
Temperature Control (Optional) -30 to 70℃; Customizable
Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement 0
ISO 13431 ASTM D5262 Geosynthetic Material Creep Test System
Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement 1
ISO 13431 ASTM D5262 Geosynthetic Material Creep Test System
Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement 2
ISO 13431 ASTM D5262 Geosynthetic Material Creep Test System
Geosynthetic Material Creep Test System 50kN Capacity 600mm Displacement 3
ISO 13431 ASTM D5262 Geosynthetic Material Creep Test System
