ASTM D5101 Geosynthetic Clogging Test Machine 220V 75kg

Large Image : ASTM D5101 Geosynthetic Clogging Test Machine 220V 75kg

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D5101 Geosynthetic Clogging Test Machine 220V 75kg

Description

Voltage:	220V	Protection Class:	Ip56
Weight:	75 Kg	Dimensions:	450400980 Mm
Head Difference Accuracy:	±1mm	Sample Height:	100mm
Instrument Type:	Floor-standing Type	Test Cylinder Diameter:	Φ100mm
Water Head Range:	0 - 1050mm	Support Mesh Aperture:	Φ6mm
Length:	450 Mm	Width:	400 Mm
Height:	980 Mm
Highlight:	ASTM D5101 geosynthetic testing machine , geosynthetic clogging test equipment 220V , textile testing machine 75kg capacity

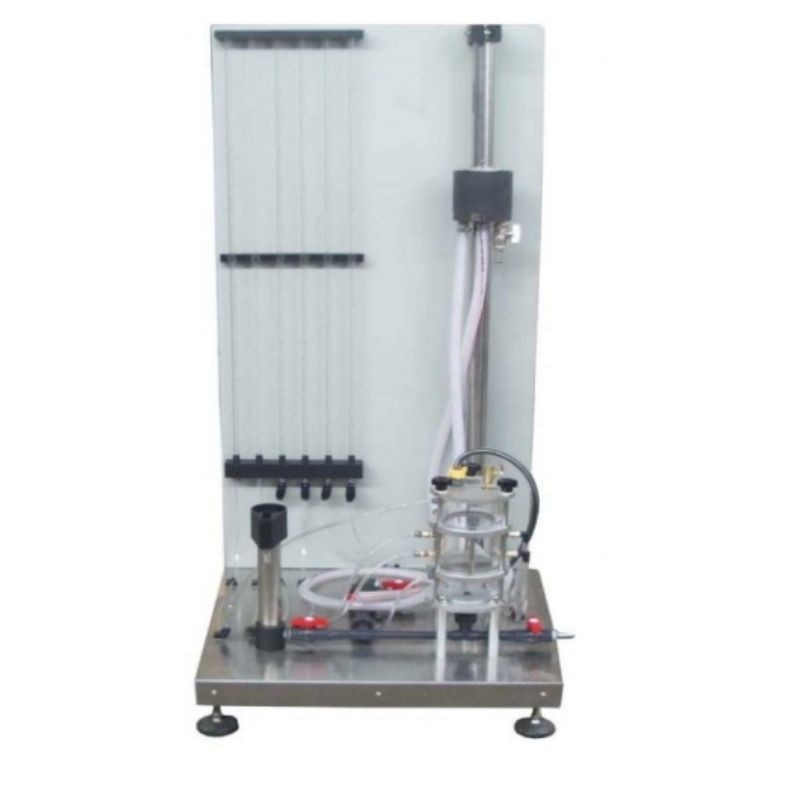

ASTM D5101 Geosynthetic Material Blockage Test Machine

The geosynthetic material blockage test apparatus is designed for evaluating geosynthetic material filter layers. Using the gradient ratio method, it measures the permeability coefficient and permeability ratio of soil-geosynthetic fabric systems and their interfaces under non-pressure conditions. The instrument also assesses mud content to determine potential blockage issues when geosynthetic materials are used as filter layers with specific soil types.

Key Features

Compatible with various soil types and geotextiles
Floor-standing design with stable, deformation-resistant structure
Transparent organic glass testing chamber for clear observation of clogging process
Secure sample holding device with excellent sealing performance
Optimized test cylinder height design ensures uniform water flow
Manual handwheel adjustment for precise, smooth water level control
Six pressure measurement tubes for accurate observations
Simple installation and user-friendly operation

Compliance Standards

ASTM D5101-2006, JTG E50 T1145-2006, SL/T 235-33-2012

Technical Specifications

Instrument Type	Floor-standing type
Inner Diameter of Test Cylinder	Φ100mm
Sample Height	100mm
Water Head Adjustment Range	0 - 1050mm
Head Difference Accuracy	±1mm
Support Mesh Aperture	Φ6mm
Dimensions (L×W×H)	450 × 400 × 980 mm
Weight	75 kg

ASTM D5101 Geosynthetic Material Blockage Test Machine

Close-up view of testing chamber

Pressure measurement system detail

Operator adjusting water level controls
