Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg

Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg
Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg

Large Image :  Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg

Description
Voltage: 220V Protection Class: Ip56
Work Pressure: 2 ± 0.01 KPa, 20 ± 0.1 KPa, 200 ± 1 KPa Weight: 40kg
Dimensions: 600*300*400 Mm Minimum Graduation Value: 0.001mm
Pressurization Method: Mechanical Type Measurement Range: 0.001 - 12 Mm
Pressing Foot Size: 2500mm² Thickness Precision: 0.001mm
Pressure Accuracy: ±0.01 KPa, ±0.1 KPa, ±1 KPa Display Type: Numerical
Material: Corrosion-resistant Coating Level Adjustment: Adjustable
Measurement Method: Micrometer
Highlight:

Geosynthetics thickness tester 40kg

,

Textile testing machine ISO 9863

,

Thickness tester ASTM D5199

ISO 9863 ASTM D5199 Geosynthetics Thickness Measuring Instrument
This precision instrument measures the thickness of various geosynthetics under specified pressure and time conditions. The sample is placed on the reference plate, and a circular pressure foot applies controlled pressure to measure the vertical distance between plates, with results expressed as average values.
Compliant Standards
GB/T 13761.1-2009, ISO 9863-1-2005, ASTM D5199-2001, JTG E50 T1112-2006, SL/T 235-5-2012
Key Features
  • Manufactured to meet all relevant standards and specifications
  • Corrosion-resistant outer shell with special surface coating
  • Precise mechanical pressure system for 2 KPa, 20 KPa, and 200 KPa applications
  • Adjustable level ensures uniform sample force application
  • Simple installation and operation
  • High-precision micrometer measurement
  • Clear numerical display for easy reading
Technical Specifications
Pressurization Method Mechanical type
Measurement Range 0.001 - 12 mm
Minimum Graduation Value 0.001mm
Pressing Foot Size 2500mm²
Work Pressure 2 ± 0.01 kPa, 20 ± 0.1 kPa, 200 ± 1 kPa
Dimensions 600 × 300 × 400 mm
Weight 40kg
Product Images

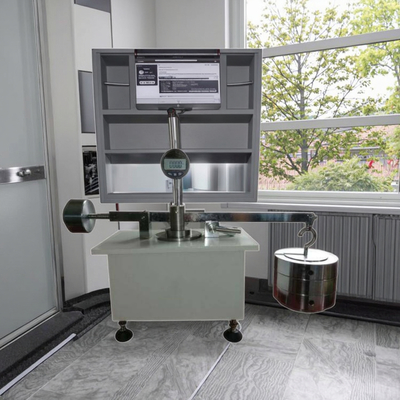

Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg 0

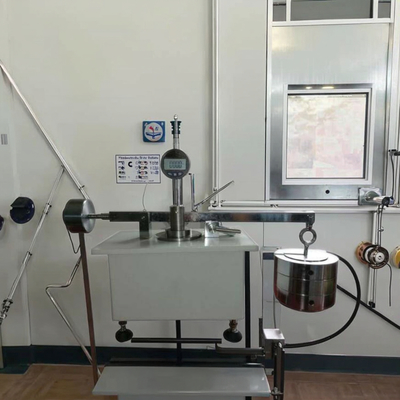

Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg 1

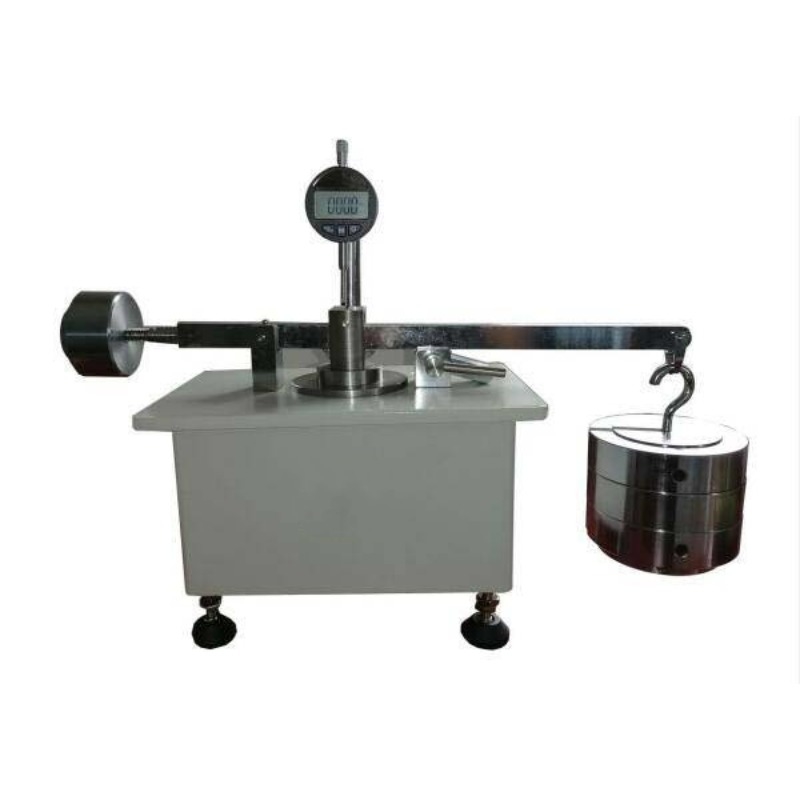

Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg 2
Geosynthetics Thickness Tester 2-200 kPa ISO 9863 ASTM D5199 40kg 3
