Large Power Load Resistor Cabinet with 220V Voltage and 0-1500V Range for 500KW Balancing Load Testing

Large Image : Large Power Load Resistor Cabinet with 220V Voltage and 0-1500V Range for 500KW Balancing Load Testing

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Large Power Load Resistor Cabinet with 220V Voltage and 0-1500V Range for 500KW Balancing Load Testing

Description

Voltage Range:	0-1500V	Power Classification:	1KW/2KW/2KW/5KW/10KW/20KW/20KW/40KW/50KW/50KW/100KW/200KW
Load Accuracy:	±5%	Operating Power Supply:	Single-phase AC 220V/50Hz
Fan Noise:	75 Decibels	Work Method:	Continuous Operation (>200 Hours)
Movement Mode:	Heavy-duty Swivel Casters (2 Front, 2 Rear)	Altitude:	≤2500m
Rated Power:	500KW	Power Factor:	PF=1
Insulation Class:	Class F	Protection Class:	IP20
Cooling Method:	Forced Air Cooling	Connection Method:	Copper Busbar Wiring
Applicable Temperature:	-10℃ To +55℃
Highlight:	220V Voltage Load Resistor Cabinet , 0-1500V Range Balancing Load Testing Machine , 500KW Rated Power Dummy Load Resistance Cabinet

Load Resistor Cabinet - Large Power Balancing Load Testing Machine

The load resistance cabinet, also known as a dummy load, is designed for testing power output and balancing loads of large power equipment including UPS systems, inverters, switching power supplies, emergency power systems, and voltage stabilizing power supplies.

Key Features

Modular design using high-quality dry-type resistors
Customizable configurations for various load requirements
Capable of low resistance value and large current continuous loading
Excellent heat dissipation properties
Pure resistive load design for accurate testing
Multiple control methods with real-time data display
High control accuracy with stable load current

Applications

Widely used in shipbuilding, power generation, telecommunications, petroleum, power plants, metallurgy, nuclear power, automotive industries, and other fields requiring precise power testing.

Technical Specifications

Specification	Details
Voltage Range	0-1500V
Power Classification	1KW to 200KW (Three-phase synchronization, allowing any combination from 0 to 500kW)
Load Accuracy	±5%
Operating Power Supply	Single-phase AC 220V/50Hz
Loading Methods	Steady-state, Transient, and Band loading options
Fan Noise	75 decibels
Work Method	Continuous operation (>200 hours)
Protection Functions	Over-temperature alarm/protection, beeping prompt, emergency stop
Movement	Heavy-duty swivel casters (2 front, 2 rear)
Rated Power	500KW
Power Factor	PF=1
Display	LED real-time display of voltage, current, power, frequency
Cooling Method	Enclosed with forced air cooling
Connection Method	Copper busbar wiring

Environmental Specifications

Altitude	≤2500m
Ambient Temperature	-10℃ to +55℃
Relative Humidity	≤95%
Insulation Class	Class F
Protection Class	IP20 (indoor use)

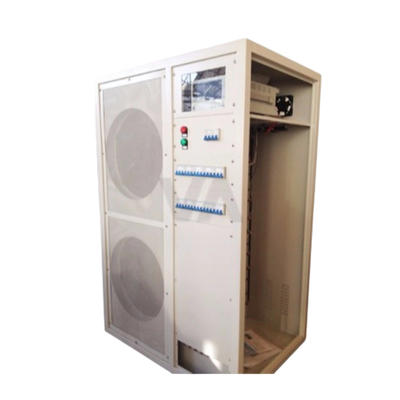

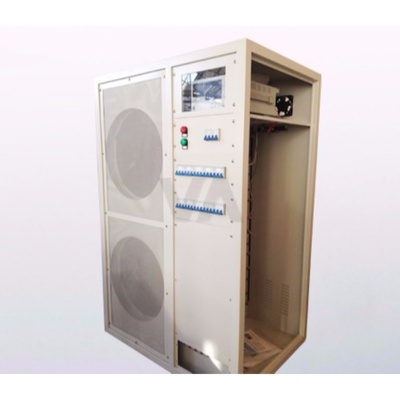

Load Resistor Cabinet - Front View

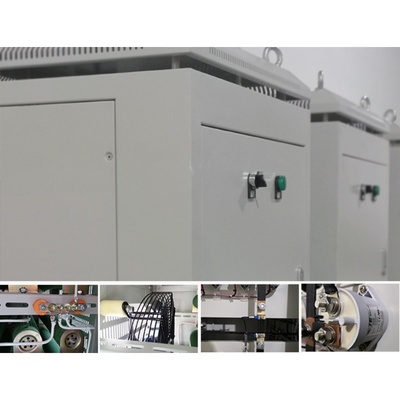

Internal Component View

Side View with Mobility Casters
