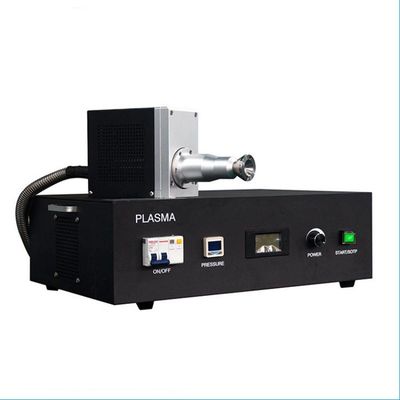

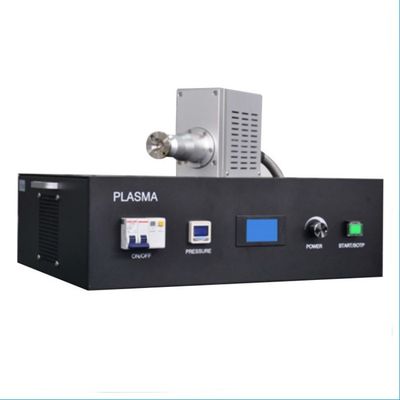

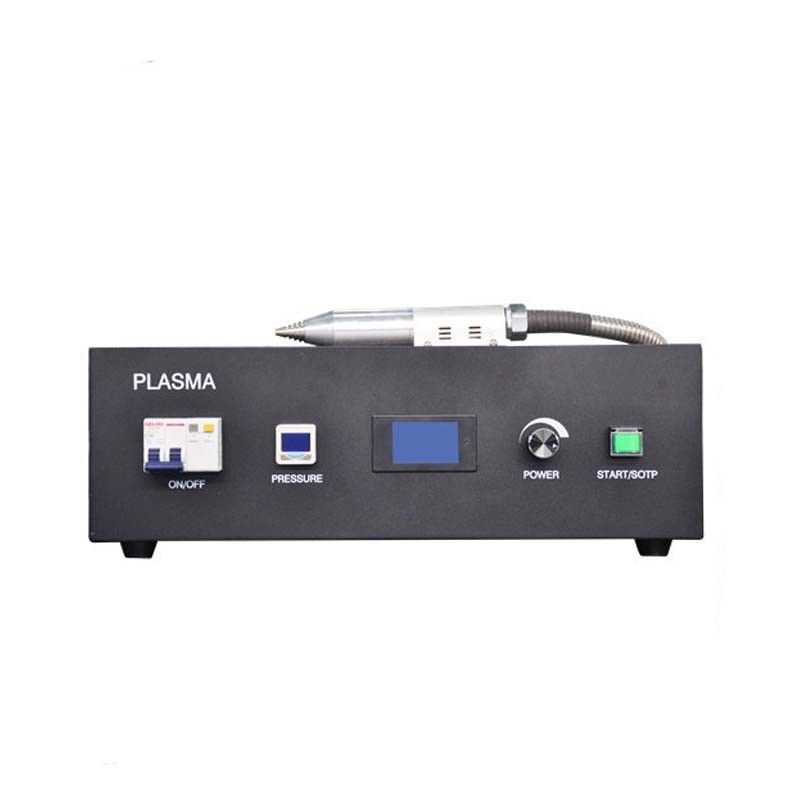

Atmospheric Plasma Cleaning Machine Ultra-Low Temperature Plasma Cleaner
1. The Profile
SPA - 2600 Atmosphere Plasma cleaning machine (Plasma cleaner), is a in the atmospheric environment cleaning, activation, etching the surface of the product, usually served with a jet spray gun head of spray gun, the main processing, processing small area tracking accuracy is high, the bottom part of material, is paste in various industries, welding, printing, point glue easily off such problems as "Nemesis". Plasma cleaning as a product surface printing, packaging, fitting, coating, welding, viscose, coating process, is an important part of product upgrading, capacity expansion, cost reduction.
1.1 Product Features
1. Compact machine, wide application range, professional, efficient, accurate, lasting, environmental protection, and flexible configuration, cost-effective
2. Can be combined with the production line, can be continuous operation, improve the production speed
3. Low gas cost(CDA/N2), cost saving
4. Advanced in the industry Full-bridge inverter circuit;
5. Patented high voltage generator design;
6. Patented gun head design, No ESD generated
7. Unique patent discharge technology, high plasma concentration.
1.2 Industrial Application
1. 3.C industry: phone assembly bonding, camera module, earphone bonding, mid frame bonding
2. Display industry: TP state
3. Automotive industry bonding: headlights, steering wheel, EPDM seal, windshield, automotive electronics
4. Connector industry: cable character printing
5. Clock industry: bonding, inlaying, bonding
6. Plastic industry: surface activation, bonding, screen printing
7. Metal industry: gold plating, silver plating, welding, removal of residual organic matter
8. Glass industry: coating film, ink printing, coating, paste
2.1 Equipment Specifications
| Plasma power main machine specification |
| Case size |
560*452*186mm(L*W*H) |
| weight |
20KG |
| Input Power |
220V, 50/60Hz, 3 line, 50A |
| mains frequency |
20-50KHz |
| Plasma output |
300-500W adjustable;Choosable 200-300W
(ultra-low power version, with muffler head, temperature 40-60ºC) |
| control mode |
I/O port |
| alarm |
Overload protection, short circuit protection, circuit break protection, temperature protection |
Plasma power gun head specification
|
| Spear head size |
As shown in the following equipment drawing |
| Gun nozzle specifications |
1. Optional normal jet direct injection 2mm, 3mm, 5mm, 10mm standard with nozzle
2. Flat nozzle jet direct injection 10mm, 15mm |
| Spear head weight |
3KG |
Plasma cleaning height
|
5-20mm |
Effective plasma treatment width |
2-15mm |
| High tension line long |
3.5 m( 6 m We can customize the) |
2.2.Factory specifications
Factory specifications
|
| Ac power specification |
power supply: AC220V,50/60Hz,3 line,50A |
Factory exhaust
|
Flow quantity: 2.0 m³/min
pressure: -280~-350 Pa
texture: Corrosion resistant material
|
Factory compressed air requirements
|
flow: 25Lpm
pressure: 3~7 kg/cm²
pipe diameter:8×5mm
texture: PU pipe
dew point temperature: -40ºCbelow
Particle>0.3μm: 10Pcs/ft³ |
2.3.General Requirements
| General Requirements |
| Device rotation rate |
continuous operation 95% above |
| Risk identification |
High pressure hazard identification |
| service environment |
temperature:15~30ºC
Humidity :30~80% |
| Else matters need attention |
No combustible gases, corrosive gases, explosions or reactive dust |
Consumable materials list
|
| Project |
Serial number |
Quantity |
Service life |
Remark |
| Remark |
DYT002 |
1 |
5000 hour |
|
| Nozzle |
DYT013 |
1 |
5000 hour |
|
Remark
1. Do not change consumables without training.
2. Please turn off the power for more than 20 minutes before replacing consumables, and make high voltage prot.
