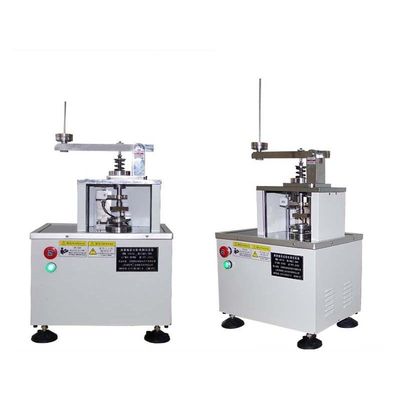

Pin-disk Tribometer 220V 50Hz Friction and Wear Testing Machine with 1N.m Maximum Friction Torque and ±2% Measurement Accuracy

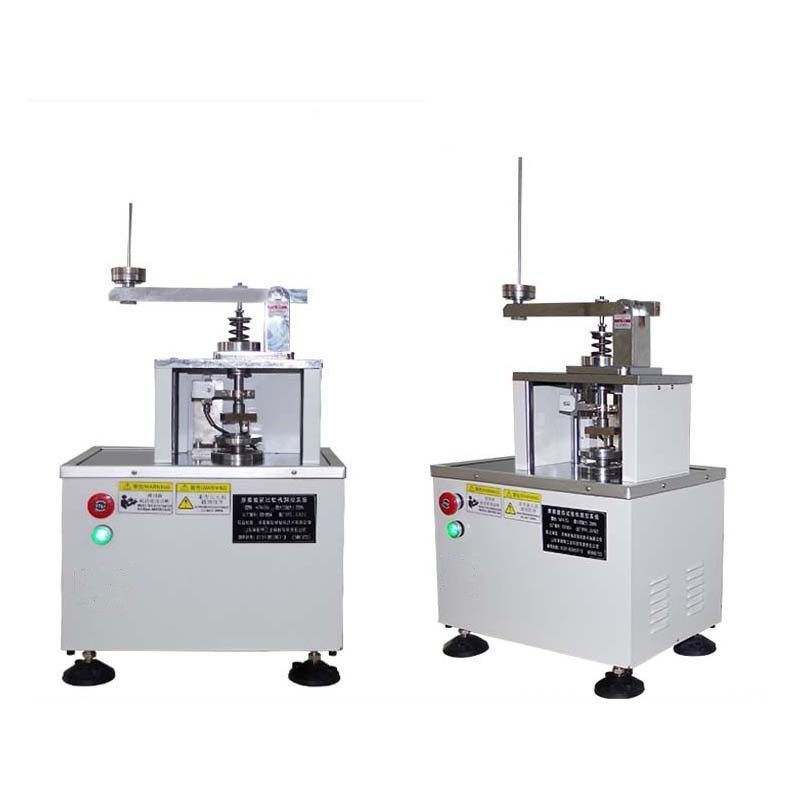

Large Image : Pin-disk Tribometer 220V 50Hz Friction and Wear Testing Machine with 1N.m Maximum Friction Torque and ±2% Measurement Accuracy

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-MPX

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Pin-disk Tribometer 220V 50Hz Friction and Wear Testing Machine with 1N.m Maximum Friction Torque and ±2% Measurement Accuracy

Description

Maximum Friction Torque:	1N.m	Friction Torque Accuracy:	±2%
Pin Specimen Diameter:	4mm Optional	Maximum Load:	30Kg
Spindle Speed:	1 - 2000 R/min	Power Supply:	220V 50Hz 5A
Highlight:	Lab Pin On Disk Tribometer , Pin On Disk Tribometer 220V , 50Hz Friction And Wear Testing Machine

Lab Pin Disk Tribometer 220V 50Hz Friction And Wear Testing Machine

Product Overview

The Pin-disk Tribometer Wear Testing Instrument is a precision friction and wear testing machine designed for comprehensive material analysis. Featuring a lower-mounted rotating spindle and dual loading methods (direct and indirect), this instrument minimizes test force errors under small loads, ensuring accurate and reliable results.

This testing machine accommodates various metal and non-metal materials (including plastics and nylon) configured as disc-type or double-ring type samples. It performs end-face sliding friction tests to determine wear performance and measure friction coefficients under selected loads and speeds.

Key Features

Dual loading methods: direct and indirect for precision testing
Microcomputer semi-automatic control system
Servo motor with stepless speed adjustment
Suitable for both metal and non-metal materials
Multiple sample configurations: disc-type and ring-disc type contact
Comprehensive friction coefficient measurement capabilities

Technical Specifications

Parameter	Specification
Maximum Load	30Kg
Load Application Accuracy	500g ± 10g, 30Kg ± 30g
Spindle Speed	1 - 2000 r/min (servo motor with stepless speed adjustment)
Maximum Friction Torque	1N.m
Friction Torque Measurement Accuracy	±2%
Pin Specimen Diameter	4mm (optional)
Disc Specimen Maximum Diameter	60mm
Contact Form	Disc-type (bolt-type), expandable
Control Method	Microcomputer semi-automatic control
Dimensions	420 × 270 × 580 mm
Power Supply	220V 50Hz 5A

Applications

Ideal for enterprise detection and research departments conducting comprehensive comparative studies on materials. Also serves as an efficient testing instrument for universities engaged in "frictionology" teaching and research activities.
