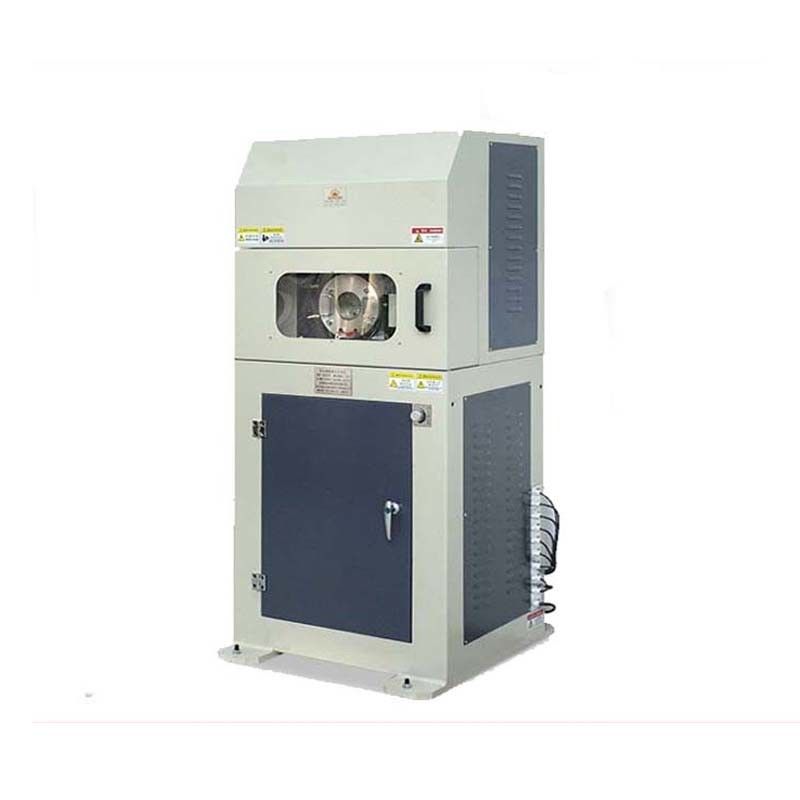

Timken Analyzer Ring Block Wear Testing Machine 3000N With Line Contact Sliding friction

Timken Analyzer Ring and Block Wear Testing Machine

Product Introduction

The ring block friction and wear testing machine, also known as the Timken testing machine, uses the method of line contact sliding friction to test the friction and wear performance of the samples. The working principle is as follows: the driving part is a standard rotating ring, and the driven part is a fixed standard-sized rectangular block. By measuring the width of the strip-shaped wear marks on the rectangular block of the passive sample under different loads, as well as the friction force and friction coefficient between the friction pairs of materials, the bearing capacity of the lubricant and the friction and wear performance of the friction pair materials can be evaluated. It can also be used to assess the lubrication performance of various lubricants under oil immersion lubrication conditions, especially suitable for the simulation evaluation of the anti-abrasion performance of medium and high-end automotive gear oils, and can be used for the wear performance research of various metals, non-metals, and coatings.
This machine is of a frame structure. It is controlled by a servo motor to load the lever. All the test parameters are set in a unitized manner. The operation is convenient, and the test readings are accurate and reliable. This machine adopts an integrated structure design. The computer, software, industrial control module, and actuators are combined in one frame to complete the control of the entire experimental process. It can collect test data in real time and draw corresponding test curves. It can also store, view, and print out the test data or curves at will.

Product Parameter
