ASTM Lab Test Machine 3000N Maximum Test Force Ring Block Tester with ±1% Friction Force Accuracy and Servo Fully Automatic Loading

Large Image : ASTM Lab Test Machine 3000N Maximum Test Force Ring Block Tester with ±1% Friction Force Accuracy and Servo Fully Automatic Loading

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-MDI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ASTM Lab Test Machine 3000N Maximum Test Force Ring Block Tester with ±1% Friction Force Accuracy and Servo Fully Automatic Loading

Description

Maximum Test Force:	3000N	Maximum Friction Force:	300N
Friction Force Accuracy:	±1%	Test Force Accuracy:	±0.5%
Main Shaft Speed:	5-2000r/min	Test Machine Dimensions:	1000×700×1470
Highlight:	ASTM Lab Test Machine , Lab Test Machine 3000N , Metal Friction And Wear Testing Equipment

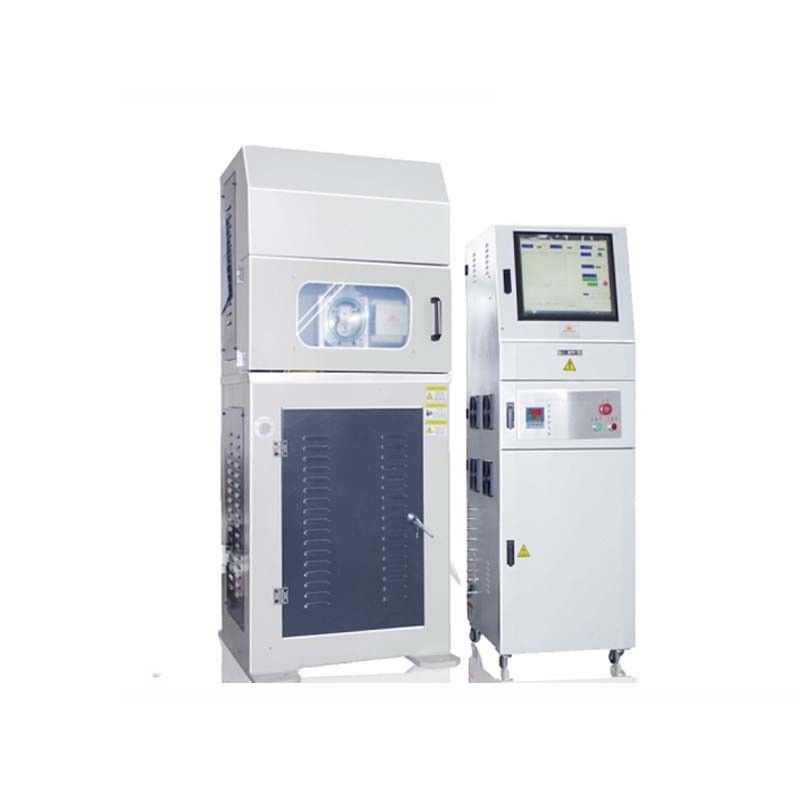

ASTM Lab Test Machine 3000N Metal Ring Block Friction And Wear Testing Equipment

Product Overview

The ring block friction and wear testing machine utilizes linear contact sliding friction methodology to evaluate the friction and wear performance of material samples. This equipment features a standard rotating ring as the driving component and a fixed rectangular block as the driven component, enabling comprehensive material testing and analysis.

Testing Methodology

By measuring the width of strip-shaped wear marks on rectangular blocks under varying loads, along with friction force and coefficient measurements between material friction pairs, this equipment provides critical data for evaluating lubricant bearing capacity and material friction/wear performance. It is particularly effective for oil immersion lubrication condition assessment.

Applications

Evaluation of lubricant performance under oil immersion conditions
Simulation assessment of anti-abrasion performance for medium and high-end automotive gear oils
Wear performance research for various metals, non-metals, and coatings
Material friction pair performance analysis

Technical Specifications

Parameter	Specification
Maximum Test Force	3000N
Test Force Accuracy	±0.5%
Maximum Friction Force	300N
Friction Force Accuracy	±1%
Main Shaft Speed Range	5-2000r/min (Optional high speed)
Main Shaft Speed Error	±1%
Main Shaft Rotation Display	0-9999999
Time Display Range	0-9999s or min
Main Shaft Control Method	Servo Control
Control Software	HTMS Advanced Friction and Wear Control System
Loading Method	Servo Fully Automatic Loading
Test Oil Temperature	Room Temperature to -100℃ (HX-PID Self-tuning Temperature Control)
Temperature Measurement Accuracy	±2℃
Control System	Industrial Motherboard, Full-screen Touch Control, Adjustable Loading Rate, Real-time Curve Acquisition, Data Export
Machine Dimensions	1000×700×1470 mm
Machine Net Weight	450kg
