ASTM D2923 TAPPI T498 Paper Softness Tester Films Sheets Rigidity Test Machine NWSP 90 Handle‑O‑Meter Analyzer

Large Image : ASTM D2923 TAPPI T498 Paper Softness Tester Films Sheets Rigidity Test Machine NWSP 90 Handle‑O‑Meter Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z166

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Contact Now

ASTM D2923 TAPPI T498 Paper Softness Tester Films Sheets Rigidity Test Machine NWSP 90 Handle‑O‑Meter Analyzer

Description

Highlight:

Color Touch Screen Control Paper Softness Tester

Built-in Thermal Printer Softness Analyzer

High-Precision Force Sensor Rigidity Test Machine

ASTM D2923 TAPPI T498 Paper Softness Tester Films Sheets Rigidity Test Machine NWSP 90 Handle‑O‑Meter Analyzer

Professional testing instrument for measuring softness and rigidity properties of various paper products and materials.

Application Scope

Suitable for the measurement of various types of toilet paper, tissue paper and other materials that require softness performance.

Compliant Standards

GB/T 8942 - Method for Measuring Paper Softness, ASTM D 2923 - Test Method for Rigidity of Polyolefin Films and Sheets, TAPPI T 498, INDA IST 90.3, EDANA WSP 90.3

Instrument Features

Color touch screen control with Chinese and English menus, human-computer dialogue mode for convenient operation
Built-in thermal printer for on-site rapid printing of test results
Professional computer analysis software with bidirectional operation, report statistics, and intuitive curve analysis
Lever principle measuring device to reduce data fluctuations caused by vibrations
Stepper motor transmission for smooth, precise and accurate operation
High-precision force sensor ensuring accuracy and reliability of test results
Real-time display of force values and curves during testing process

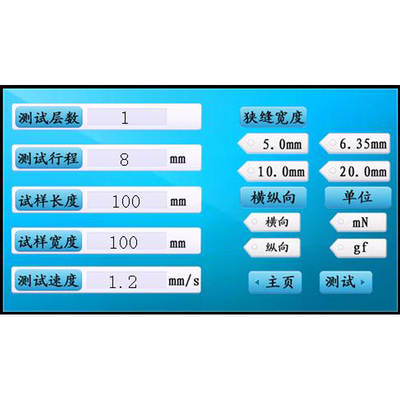

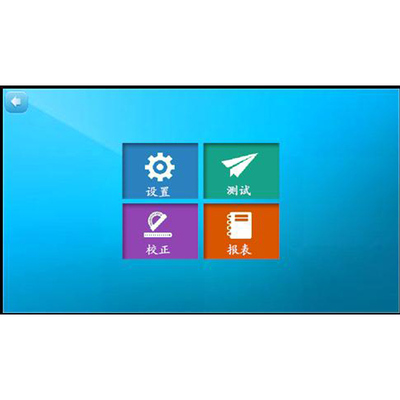

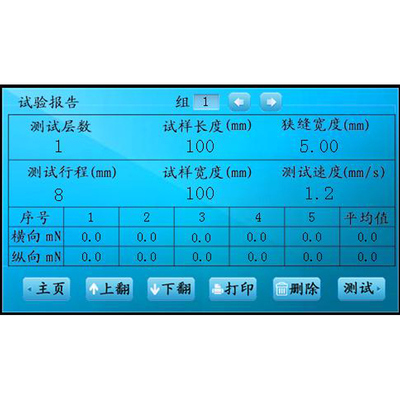

Operation Interface

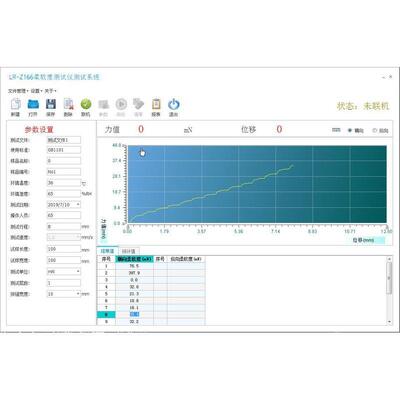

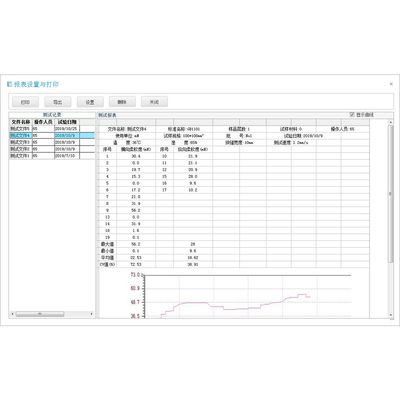

Software Interface

Technical Specifications

Parameter	Specification
Measuring range	(1～1000) mN
Test accuracy	0.1 mN
Test unit	Switchable between gf and mN
Total stroke of probe	12 mm
Probe penetration depth	8 mm, configurable
Sample stage slit width (4-gear)	5 mm, 6.35 mm, 10 mm, 20 mm; width tolerance for each gear ±0.05 mm
Parallelism error on both sides of sample-stage slit	≤0.05 mm
Probe centering error	≤0.05 mm
Test speed	0.1～5 mm/s (arbitrarily configurable)
Print output	Built-in thermal printer
Overall dimension	580×340×230 mm
Weight	26 kg
Power supply	AC220V 50Hz 100W
