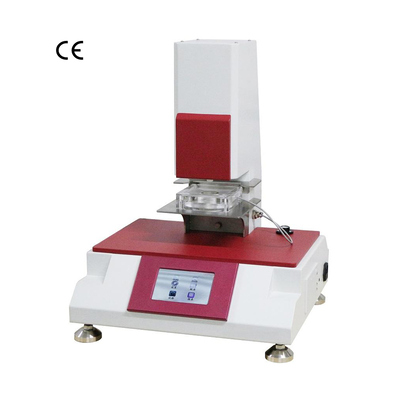

FZ/T 60017 Non-woven Fabric Liquid Penetration Time Tester Textile Permeability Test Machine Liquid Penetration Analyzer

Large Image : FZ/T 60017 Non-woven Fabric Liquid Penetration Time Tester Textile Permeability Test Machine Liquid Penetration Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z164

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	200

Contact Now

FZ/T 60017 Non-woven Fabric Liquid Penetration Time Tester Textile Permeability Test Machine Liquid Penetration Analyzer

Description

Highlight:

Color Touch Screen Control Liquid Penetration Tester

High-Precision Peristaltic Pump Textile Permeability Test Machine

Automatic Liquid Addition Liquid Penetration Analyzer

FZ/T 60017 Non-woven Fabric Liquid Penetration Time Tester

Product Overview

This advanced textile permeability test machine and liquid penetration analyzer is designed for determining the penetration time of liquid (simulated urine) on non-woven fabric coating materials.

Compliance Standards

FZ/T 60017 - Hygienic thin non-woven fabric liquid penetration test method
GB/T 24218.8 - Determination of liquid penetration time
GB/T 24218.13 - Determination of multiple liquid penetration times
GB/T 24218.14 - Determination of reverse moisture absorption of coating materials

Instrument Features

Color touch screen control with Chinese and English menus for user-friendly operation
Built-in thermal printer for on-site rapid printing of test results
High-precision peristaltic pump ensuring accurate volume of penetrated liquid
Automatic liquid addition function for fully automated testing
Special organic glass penetration plate with precise processing
Comprehensive data storage and statistical analysis capabilities
Precise positioning device to prevent damage
Gold-plated electrodes for superior corrosion resistance

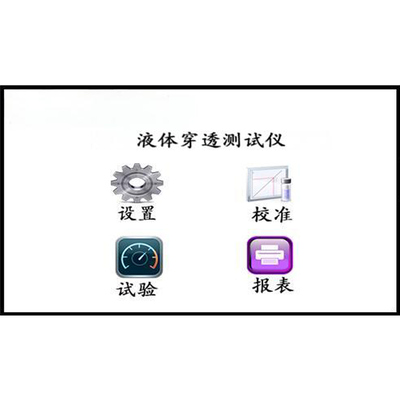

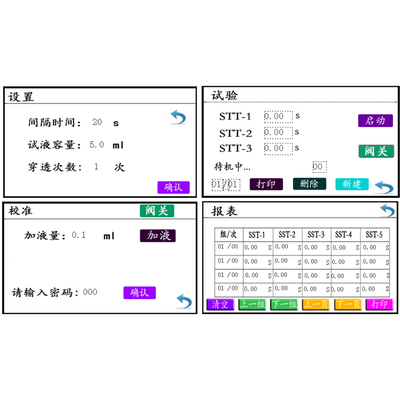

Operation Interface

Technical Specifications

Automatic liquid adding volume	1.0～10.0mL, arbitrary setting
Test accuracy	0.01s
Penetration times	1～5 times, configurable
Interval setting time	20～99s, arbitrary setting
Funnel flow rate with solenoid valve	25mL flows through within (3.5±0.25)s
Distance from funnel tip to base plate	45mm
Base plate material	Transparent plexiglass
Base plate dimension	125*125mm; thickness approx. 5mm
Penetration plate dimension	10010025mm
Penetration plate weight	500g±5g
Electrode diameter	1.6mm
Sample size	125*125mm
Overall dimension	410370500mm
Weight	22kg
Power supply	AC220V 50Hz 100W
Optional function	USB communication for PC connection
