AATCC 201 Automatic Fabric Drying Rate Measuring Machine Moisture Loss Rate Tester Textile Drying Time Analyzer

Large Image : AATCC 201 Automatic Fabric Drying Rate Measuring Machine Moisture Loss Rate Tester Textile Drying Time Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z156

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	D/A,D/P,T/T,L/C
Supply Ability:	200

Contact Now

AATCC 201 Automatic Fabric Drying Rate Measuring Machine Moisture Loss Rate Tester Textile Drying Time Analyzer

Description

Highlight:

AATCC 201 Compliant Fabric Drying Rate Tester

High-Precision Infrared Temperature Sensor Textile Drying Time Analyzer

Automated Liquid Dispensing System Moisture Loss Rate Tester

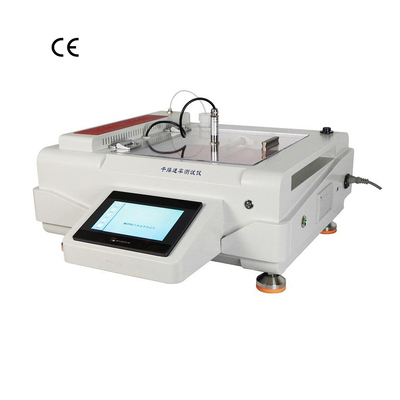

AATCC 201 Automatic Fabric Drying Rate Measuring Machine

The AATCC 201 Automatic Fabric Drying Rate Measuring Machine is a precision instrument designed to measure moisture loss rate and drying time of textiles. This advanced moisture loss rate tester and textile drying time analyzer provides accurate, automated testing capabilities for quality control and research applications.

Application Scope

Used for testing knitted fabrics or any quick-drying fabrics, including socks and towels.

Instrument Function

The Drying Rate Tester is a fully automated instrument designed in accordance with the AATCC 201 testing standard. It utilizes high-precision infrared temperature sensors, an airflow velocity sensor, and a precision liquid dispensing system to automatically measure fabric drying time and drying rate.

Standards

AATCC 201

Instrument Features

Uses a high-precision infrared temperature sensor to measure the sample surface temperature

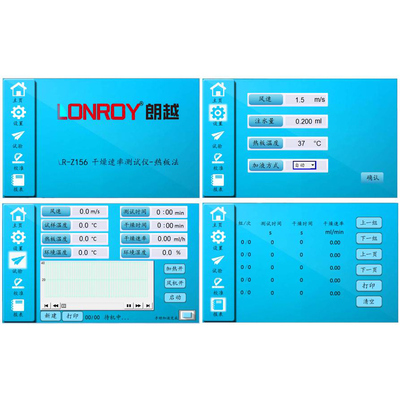

Features a full touchscreen interface and supports PC-based control
Equipped with a high-precision airflow velocity sensor
The liquid dispensing system employs a high-precision peristaltic pump to ensure accurate liquid volume delivery
Parameters such as liquid volume and hot plate temperature can be freely configured
Test results include both curves and data; multiple test records can be stored, and results can be managed via a connected PC
Liquid dispensing mode is selectable between manual and automatic

Technical Specifications

Parameter	Specification
Heating Plate	305 * 305 mm
Metal Pressing Plate	150 * 40 * 2 mm
Heating Plate Temperature	37 ± 0.1°C
Temperature Display Resolution	0.1°C
Airflow Velocity	1.5 m/s ± 0.1 m/s
Infrared Temperature Sensor	15-50°C ± 0.1°C
Fabric Test Thickness	0-10 mm
Liquid Dispensing Volume	0.2 mL ± 0.001 mL (adjustable)
Overall Dimensions	520 * 400 * 260 mm
Weight	30 kg
Power Supply	AC 220V, 100W
