Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester

Large Image : Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester

Description

Type:	Low-temperature Fatigue Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	low-temperature fatigue test machine , cryogenic tensile repetitive compression device , subzero bending durability tester

Products Description

Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester

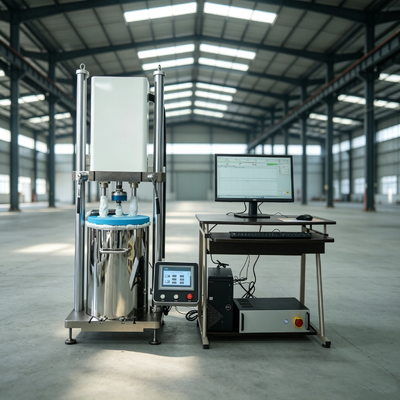

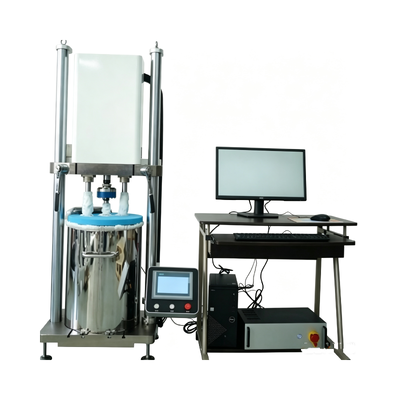

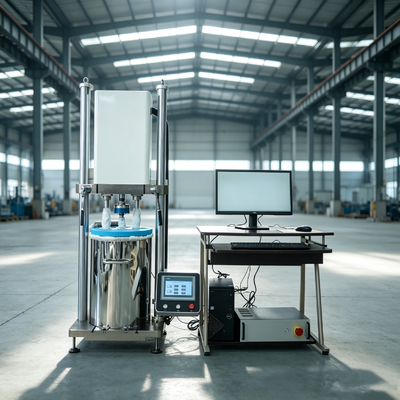

Equipment Overview The low-temperature fatigue testing machine creates a low-temperature environment to evaluate the dynamic and static mechanical properties of various materials—including metals, non-metals, and composites—as well as components such as power lithium battery terminals. It supports tensile, compressive, and bending tests, as well as dynamic/static stiffness and low-cycle fatigue tests, using waveforms such as sine, triangle, square, trapezoidal, and composite waves. Equipped with a temperature control system, it enables environmental simulation tests at specific temperatures. The KZS series dynamic and static universal testing machine is an ideal choice for dynamic testing across sectors including aerospace, aviation, transportation, and metallurgy, as well as in research institutes and educational institutions.

Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester

Specification

System Technical Specifications

No.	Item	Technical Specifications
1	System Stiffness	3.3 × 10⁸ N/m
2	Maximum Static Test Force	±2000 N
3	Maximum Dynamic Test Force	±2000 N
4	Test Force Indication Accuracy	±1% of the indicated value (within 2%–100% load range)
5	Dynamic Test Force Indication Fluctuation	±2%
6	Load Coaxiality	Better than 5%
7	Maximum Actuator Stroke	±75 mm
8	Available Test Waveforms	Sine wave, square wave, triangle wave, trapezoidal wave, sawtooth wave
9	Operating Frequency Range	0.01 ~ 10 Hz
10	Control System	TMC1000 Servo Controller
11	Overall Dimensions (L×W×H)	Approx. 800 × 450 × 1500 mm
12	Total Machine Weight	Approx. 400 kg

Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester

Amplitude-Frequency Characteristics Table

Frequency (Hz)	1	2	5	10
Max Amplitude (mm)	±100	±50	±20	±10

Our Advantages
