Overview

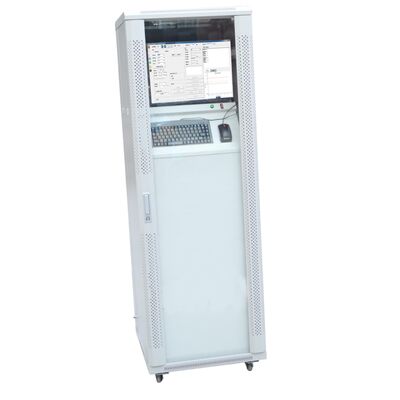

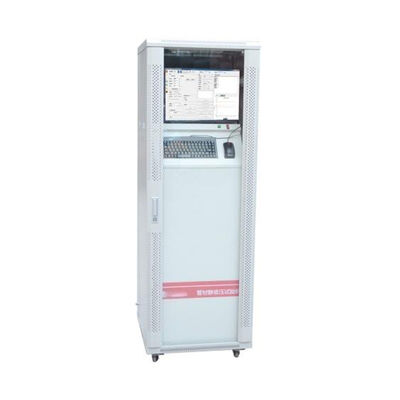

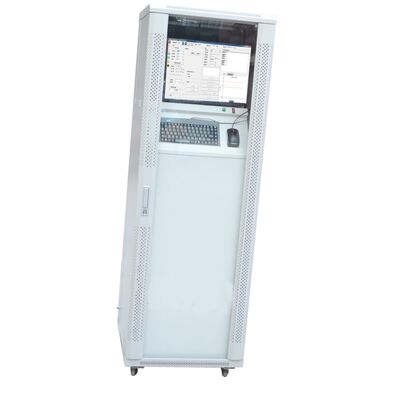

The hydrostatic burst testing machine is suitable for determining the instantaneous hydraulic burst and long-term constant pressure resistance time of various fluid transport plastic pipes. It is an essential testing instrument for research institutes, quality inspection departments, and pipe manufacturers.
The hydrostatic testing machine adopts computer embedded control. Its modular design allows for individual control. If a problem occurs in any circuit, simply closing the shut-off valve of the current station will not affect the normal operation of other stations. It features pipe rupture identification, real-time monitoring, power outage data recovery, printing, storage of test results, and sample pretreatment settings. To accommodate national holidays, it can store up to 7 days of data.
Standards Met
|
Standard Numbers
|
Standard Name
|
|
GB/T6111-2018
|
Test Method for Internal Pressure Resistance of Thermoplastic Pipes for Liquid Transportation
|
|
GB/T15560-95
|
Test Method for Hydraulic Instantaneous Burst and Pressure Resistance of Plastic Pipes for Fluid Transportation
|
|
IS01167-2006
|
Thermoplastics pipes, fittings and assemblies for the conveyance of fluids --Determination of the resistance to internal pressure -- Part 1: General method
|
|
ASTM D1598-2015
|
Pipe, Plastic, Under Constant Internal Pressure, Time-to-Failure of (No S/S Document)
|
|
ASTM D1599
|
Standard Test Method forResistance to Short-Time Hydraulic Pressure of PlasticPipe, Tubing, and Fittings1
|
Working Principle
This machine can perform both hydrostatic tests and burst tests. Parameters such as the pipe's ring stress, wall thickness, and average outer diameter are input into the PC, and the test pressure is automatically calculated. Alternatively, the test pressure can be manually input based on experience. The computer transmits the data to the lower-level machine (microcontroller MCU) via an RS232 serial bus. The lower-level machine automatically applies constant pressure to the pipe. A high-pressure plunger pump generates a high-pressure liquid pressure source, which, through the pressure control system, is delivered to the sample in the constant-temperature chamber via a high-pressure hose for long-term hydrostatic or burst tests.
Instrument Features
Control System
Two-Level Monitoring: Level 1: 1-hour fine-tuning monitoring; Level 2: Comprehensive monitoring throughout the entire process.
Multi-Functional:It can perform long-term hydrostatic tests and burst tests on pipes (each channel can perform burst and pressure tests). It can also be used for thermal stability tests of thermoplastic pipes under hydrostatic conditions. Each channel has multi-stage energy storage pressure control, ensuring fast response and stable pressure control; it can also extend the service life of solenoid valves.
Premium Quality: The entire machine uses EU CE-certified electronic components, German solenoid valves, and GEMS sensors; ensuring extremely high reliability and stability during long-term operation. It offers high efficiency with multiple testing stations per line, low operating costs, and excellent economic benefits.
Wide Pressure Control Range: The pressure control range for each station is arbitrarily settable from 0.4-10MPa.
Guaranteed High Reliability: All electrical, mechanical, and software components are equipped with safety protection measures, such as protection against leakage, short circuits, static electricity, interference, seepage, power outages, and misoperation.
Integrated Modular Assembly: Equipped with a microcontroller unit and solenoid valve control unit, they operate independently; a failure in one test line will not affect the normal operation of other lines.
Comprehensive Functionality: Features include failure detection, real-time monitoring, power failure pressure maintenance, power-off protection, automatic recovery upon power restoration, printing and storing test results, etc. The main control interface offers Chinese and English language options, providing multi-language operation capabilities.
Highly user-friendly design. Features automatic time increment option, as well as manual time increment, which can be used to compensate for invalid intermediate time and to change the test pressure midway, meeting the requirements of some special pipe tests.
The product consists of three parts: pressure unit, water tank, and clamps. Specifications and models of each part are selected by the user, and special customization is also accepted.
Pressure Source Section
The main pressure source uses an imported pump head, is self-contained, and one pressure source can connect to multiple main units;
The pressure control instrument has a fast response and stable pressure control, using a reliable mechanical gauge;
High main pressure and large flow rate; Wide pressure range, with adjustable storage pressure from 4-12MPa; Low noise, safe and stable;
The instrument has built-in leakage protection; Flexible connection, low noise.
