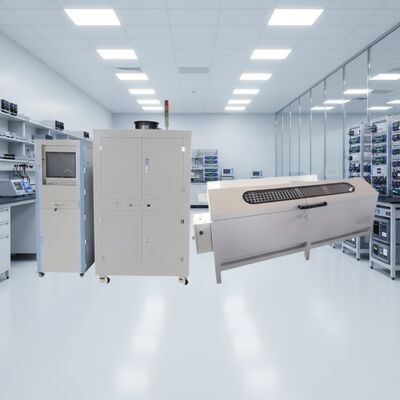

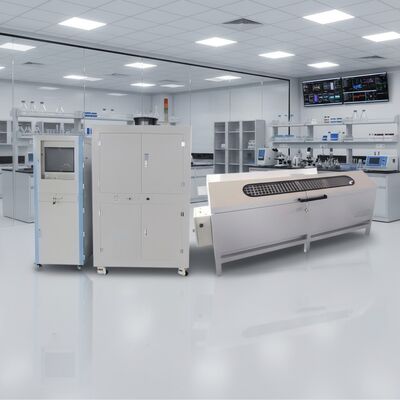

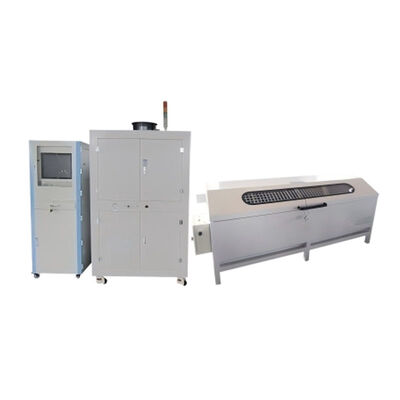

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Large Image : Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Pressure Resistance:	5-60MPa, Adjustable
Test Flow Rate:	Maximum 200L/min	Maximum Number Of Test Specimens:	1 Piece/time
Highlight:	fully automatic hydraulic cylinder test bench , computer control hydraulic test stand , hydraulic cylinder load test machine

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Product Description

Standards Complied With

GB/T 15622-2005 Hydraulic Cylinder Test Methods, JB/T 10205-2010 Hydraulic Cylinder Technical Conditions

Application Scope

Hydraulic cylinder factory testing and load testing

Control Method

Fully automatic computer control

Test Items

Related test items for trial operation, starting pressure characteristics, pressure resistance, leakage, buffering, load efficiency, high temperature, durability, and stroke inspection

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Technical Specification

Test Pressure	1-35MPa, adjustable
Hydraulic Cylinder Starting Pressure	0-1MPa, controlled by proportional throttle valve
Pressure Resistance	5-60MPa, adjustable
Test Flow Rate	Maximum 200L/min
Maximum Number of Test Specimens	1 piece/time
Applicable Products	Maximum hydraulic cylinder bore diameter range: ≤450mm, maximum hydraulic cylinder stroke ≤15m
