Automatic Hydraulic Cylinder Pressure Holding Tester Hydraulic Cylinder Pressure Retention Testing Machine

Large Image : Automatic Hydraulic Cylinder Pressure Holding Tester Hydraulic Cylinder Pressure Retention Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Automatic Hydraulic Cylinder Pressure Holding Tester Hydraulic Cylinder Pressure Retention Testing Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Pressure Range:	60 MPa
Pressurizing Medium:	Oil	High-Pressure Power Source:	Pneumatic Liquid Pump
Acquisition Accuracy:	0.5%fs
Highlight:	hydraulic cylinder pressure tester , automatic pressure holding tester , hydraulic cylinder retention testing machine

Automatic Hydraulic Cylinder Pressure Holding Tester Hydraulic Cylinder Pressure Retention Testing Machine

Product Description

Product Introduction

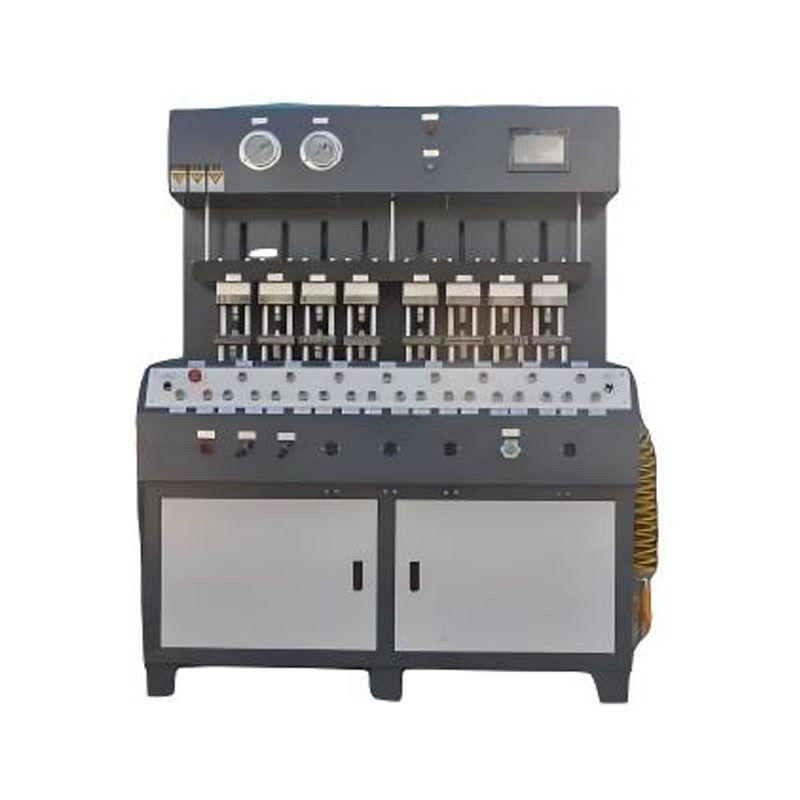

The automatic hydraulic cylinder pressure holding tester is used to test the pressure resistance and pressure holding capabilities of hydraulic cylinders, hydraulic props, coal mine support cylinders, engineering vehicle cylinders, tipping cylinders, and other hydraulic cylinders, detecting external leakage and internal leakage. The pressure range is 0~60 MPa, the medium is hydraulic oil, and the control method is manual button/computer automated control. It is equipped with precision sensors and instruments, a pointer-type pressure gauge, a digital display, and a computer for simultaneous display of pressure values in three locations.

Model

Name	Model	Testing medium	Pressure range	Control Method	Products tested
Hydraulic Cylinder Pressure Holding Test Bench	LR-E117-40	Grease	40 MPa	Computer automatic control / Manual button	Hydraulic cylinders, hydraulic supports, engineering cylinders.
Hydraulic Cylinder Pressure Holding Test Bench	LR-E117-60	Grease	60 MPa	Computer automatic control / Manual button	Hydraulic cylinders, hydraulic supports, engineering cylinders.

WAutomatic Hydraulic Cylinder Pressure Holding Tester Hydraulic Cylinder Pressure Retention Testing Machine

Technical Specification

Pressure Range	60 MPa
Pressurizing Medium	Oil
Pressurizing Method	Low-pressure pre-pressurization and high-pressure testing
High-Pressure Power Source	Pneumatic liquid pump
Testing Method	High-pressure pressurization, high-pressure pressure holding
Control Method	Computer control, manual buttons
Acquisition Accuracy	0.5%fs
Test Curves	Pressure increase → pressure holding, Static pressure → burst, Pressure increase → pressure holding
