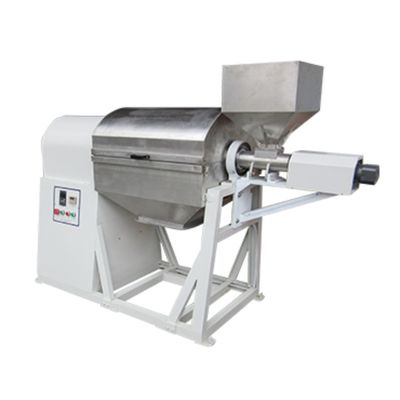

Large Image :  Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine

Description
Voltage: 220 V Protection Class: Ip56
Discharge Particle Size: Min. As 0.1um Feeding Particle Size: Soft ≤10mm, Other Material ≤3mm
Speed Regulation: Stepless Speed Regulation, 0.2rpm Ball Mill Volume: 0.05L-5L/pc, Totally 0.2L-100L
Speed Ratio: 1:2 (20-200L Productive Planetary Ball Mill Can Be 1:1.5) Rotating Speed: 0-870rpm (normal), 0-1400rpm (high-speed)
Program Control: Microcomputer Chip Control, Forward And Inversion Alternately (0-999 Min) Max Working Time: 72 Hours (timer 0-9999h)
Motor Power: 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3KW, 4KW (as Per Model) Ball Mill Environments: Vacuum, Inert Gas, Low Temperature, High Temperature
Motor Material: Pure Copper Operation Program: Forward, Pause, Inversion, Pause, Forward (0-999 Min)
Speed Precision: 0.2rpm
Highlight:

touch screen nano grinder mill

,

lab ball mill cylinder device

,

grinding and screening machine

Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine
Product Overview

The grinding and screening machine integrates a ball mill cylinder with a screening system, input mechanism, and output collection. This advanced system continuously processes materials, crushing them to precise particle sizes through efficient grinding and immediate sieving.

Key Features
  • Continuous processing with integrated grinding and sieving
  • Precise particle size control (e.g., 200-300 mesh)
  • Eliminates unnecessary repeated grinding cycles
  • Significantly improves grinding efficiency
  • Ideal for materials requiring specific particle size ranges
Operating Principle

During operation, grinding media and materials rotate within the cylinder, lifted to optimal height before descending in a parabolic trajectory. Material reduction occurs through:

  • Impact forces from grinding media
  • Friction from rolling media
  • Shear effects from sliding motion
Industrial Applications

This versatile system serves multiple industries including:

  • Electronic materials processing
  • Magnetic materials production
  • Biomedical applications
  • Ceramic glaze slurry preparation
  • Non-metallic minerals processing
  • Advanced new materials development
Technical Specifications
Parameter Specification
Ball mill jar volume 0.05L-5L/pc (total capacity 0.2L-100L)
Feeding particle size Soft materials ≤10mm, others ≤3mm
Discharge particle size Minimum 0.1μm
Speed ratio (revolution:rotation) 1:2 (20-200L models: 1:1.5)
Rotating speed 0-870rpm (standard), 0-1400rpm (high-speed)
Speed regulation Stepless with 0.2rpm precision
Program control Microprocessor-controlled operation with multiple programmable modes including forward/reverse alternation and intermittent operation cycles (0-999 min)
Maximum continuous operation 72 hours (timer 0-9999h)
Motor power 0.55kw to 4kw (model-dependent) with pure copper construction
Operating environments Vacuum, inert gas, low temperature, high temperature
Product Images

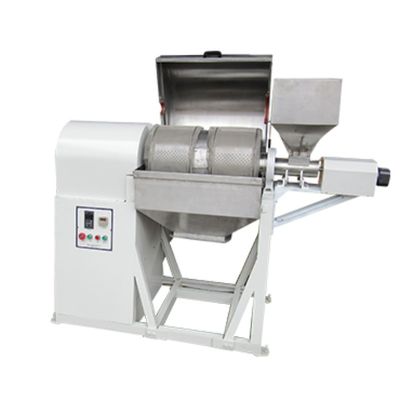

Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine 0

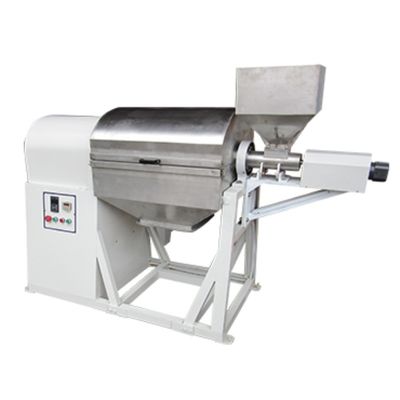

Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine 1
Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine 2
Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine 3
Grinding and Screening Machine Ball Mill Cylinder Device Touch Screen Nano Grinder Sieving Mill Mill Sieve Machine 4
